Page 35: Optional lead styles, Low profile dipped tantalum capacitors
.200 inch Lead Spacing
Snap-In
Available in
Case Sizes A - H
P/N Suffix Code E2
Available in Bulk Only
.100 inch Lead Spacing
Snap-In
Available in
Case Sizes A - H
P/N Suffix Code E1
Available in Bulk Only
.200 inch Lead Spacing
Available in
Case Sizes A - H
P/N Suffix Code 2
Standard

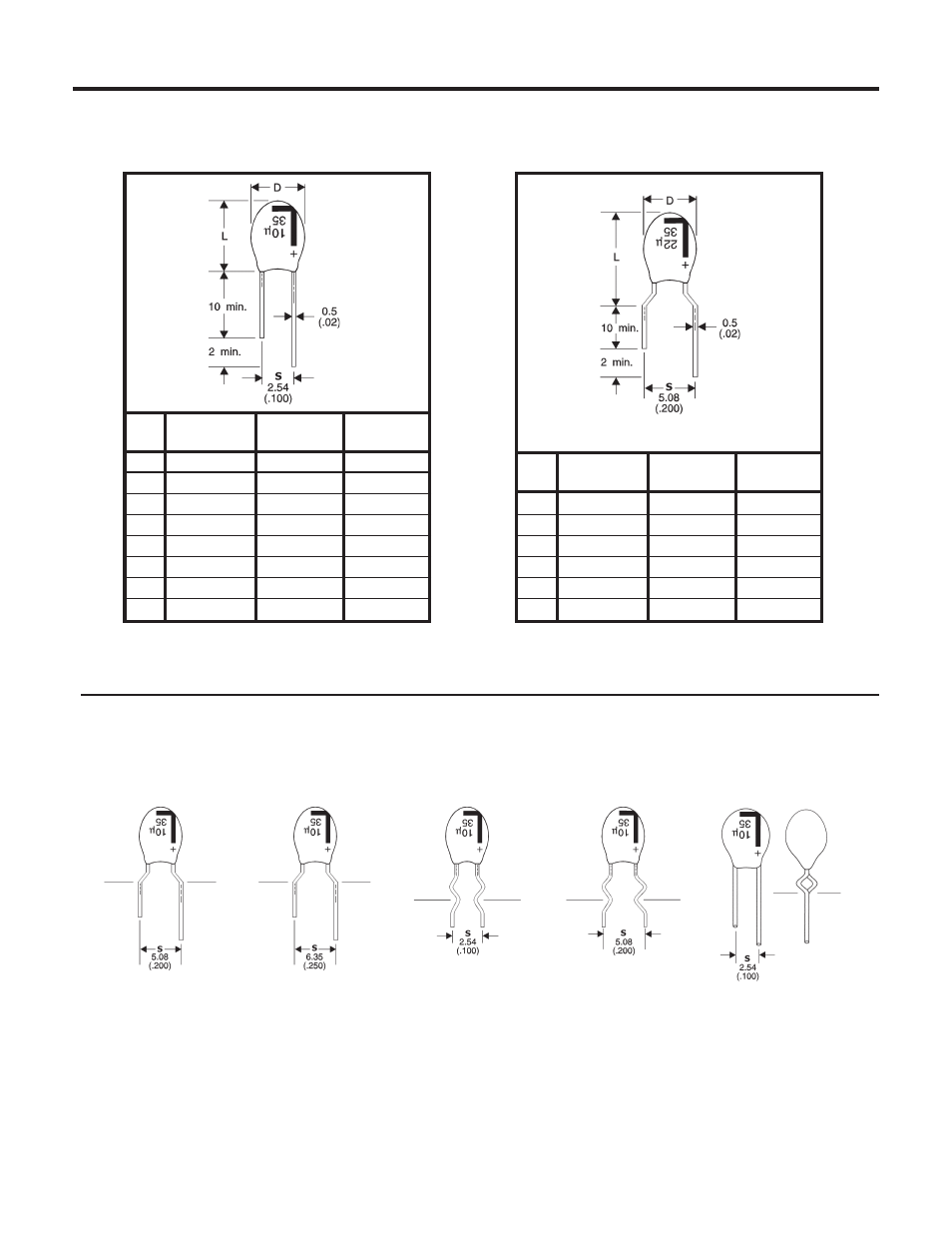

Dimensions and Lead Spacings
NOTE: Industry standard lead spacings and lead styles shown above are a function of physical case size. Case sizes are
determined by the capacitance value and voltage combination.
Optional Lead Styles
35
± 0.5 mm
CASE
D
max
L
max
S
(.02 inches)
SIZE
mm (inches)
mm (inches)
mm (inches)
A
4.5 (.177)
7.0 (.276)
2.5 (.100)
B
4.5 (.177)
7.5 (.295)
2.5 (.100)
C
5.0 (.197)
8.5 (.335)
2.5 (.100)
D
5.0 (.197)
9.0 (.354)
2.5 (.100)
E
5.5 (.217)
9.0 (.354)
2.5 (.100)
F
6.0 (.236)
10.0 (.394)
2.5 (.100)
G
6.5 (.256)
10.0 (.394)
2.5 (.100)
H
7.0 (.276)
10.5 (.413)
2.5 (.100)
± 0.5 mm
CASE
D
max
L
max
S
(.02 inches)
SIZE
mm (inches)
mm (inches)
mm (inches)
J
8.0 (.315)
13.0 (.512)
5.0 (.200)
K
8.5 (.335)
14.0 (.550)
5.0 (.200)
L
9.0 (.354)
14.0 (.550)
5.0 (.200)
M
9.0 (.354)
14.5 (.570)
5.0 (.200)
N
9.0 (.354)
16.0 (.630)
5.0 (.200)
O
10.0 (.394)
17.0 (.670)
5.0 (.200)
Standard
.100 inch
Lead Spacing
Standard
.200 inch
Lead Spacing
NOTE: Seated component heights for optional lead styles will vary based on case size.
Contact your Nemco sales representative for samples of optional lead styles.
.250 inch Lead Spacing
Available in
Case Sizes A - O
P/N Suffix Code 250
Low Profile
Dipped Tantalum Capacitors
TB
nemco
.
.100 inch Lead Spacing
Back to Back form
Available in
Case Sizes A - H
P/N Suffix Code F
