There are several important general soldering considerations
•
Recommended soldering profiles are designed to insure that the temperature of the internal construction of the
capacitors does not exceed +220°C.
•
Positioning capacitors near components radiating heat such as power transistors should be avoided.
•
Allow for an increase to ESR ratings of 1.25 x catalog limit post PCB assembly.

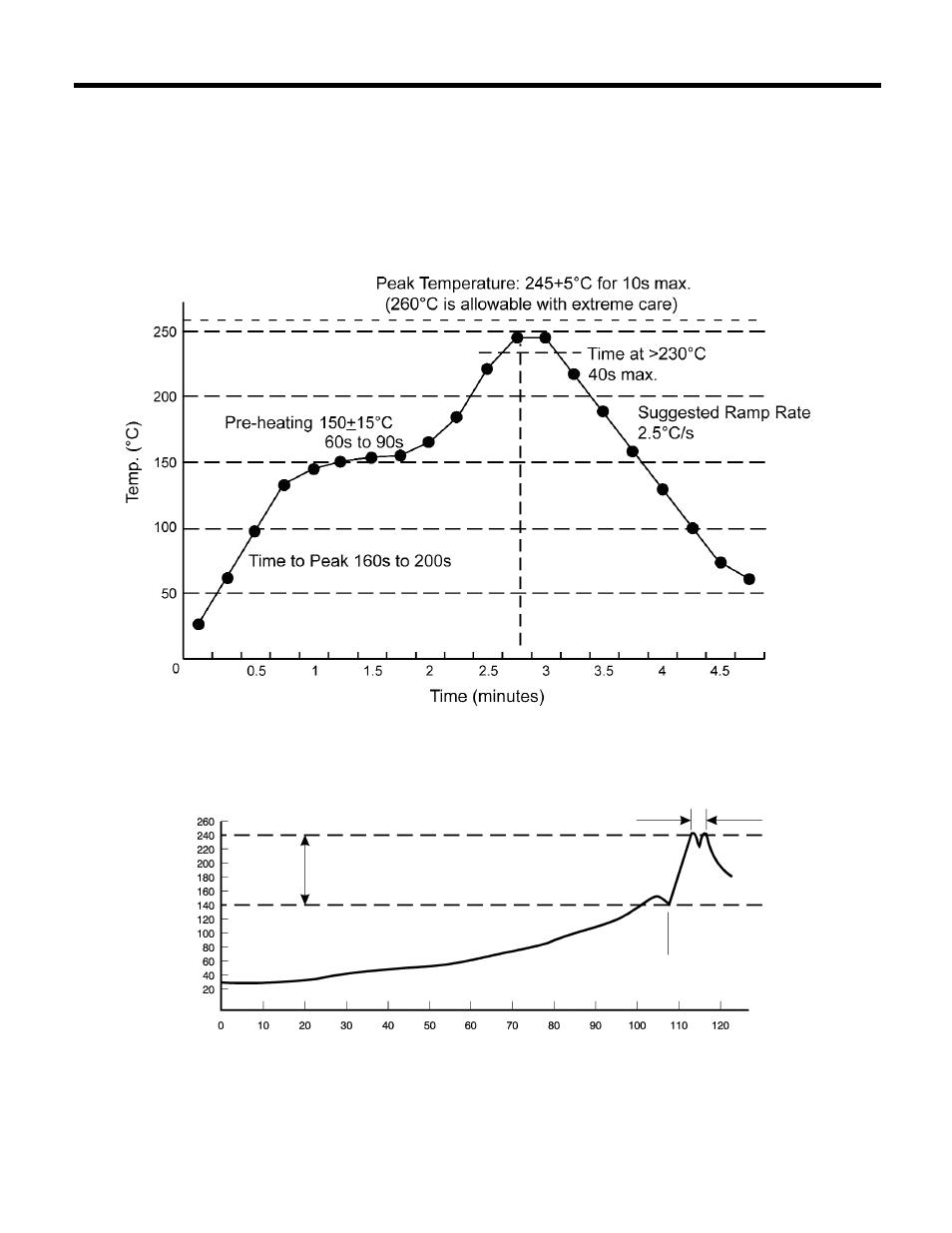

Recommended Reflow Profile for Pb Free Surface Mount Devices
Recommended Wave Soldering Profile for Leaded Dipped Tantalums
Low Profile
Soldering
nemco
.
100°C - 150°C Max
3 - 5 seconds
Time (seconds)
Natural
Cooling
Enter Wave
T
emperature °C
