Electronics LP2000_VAR User Manual

Page 8

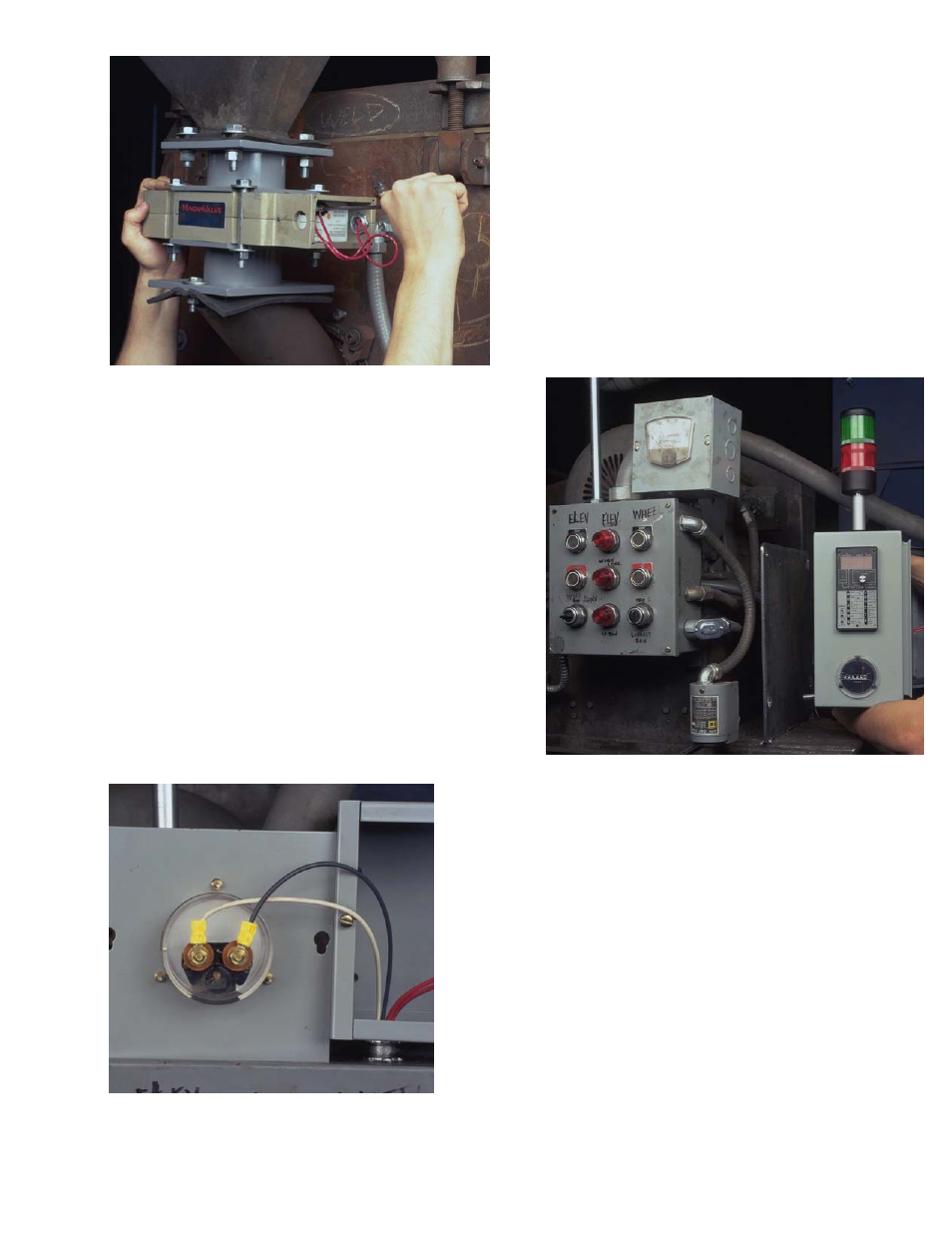

Fig. 12 The cable fastens to the mating con-
nector. The cable should be routed in either
flexible or rigid conduit. In some installations
where the conduit for the air cylinder control
solenoid is nearby it is possible to reuse the
conduit for the MagnaValve cable.

Fig. 12

Fig. 13

Fig. 13 A new electrical panel was
used in this installation and was
mounted to a rigid plate prior to per-
forming the wiring. Some installations
have adequate room in the existing
electrical panel, however, be sure that
the electrical panel is suitable (dust
tight, proper location for operator view-
ing, and well ventilated to prevent tem-
peratures above 140 degrees F).

Fig. 14 This is a rear view of the panel amme-
ter showing the connections to the meter lugs
coming from the current transformer secon-
dary. Remove one of the meter wires to allow
installation of a wiring loop to the current shunt
mounted on the rear of the AC Controller.

Fig. 14
