Electronics LP2000_VAR User Manual
Page 4

4

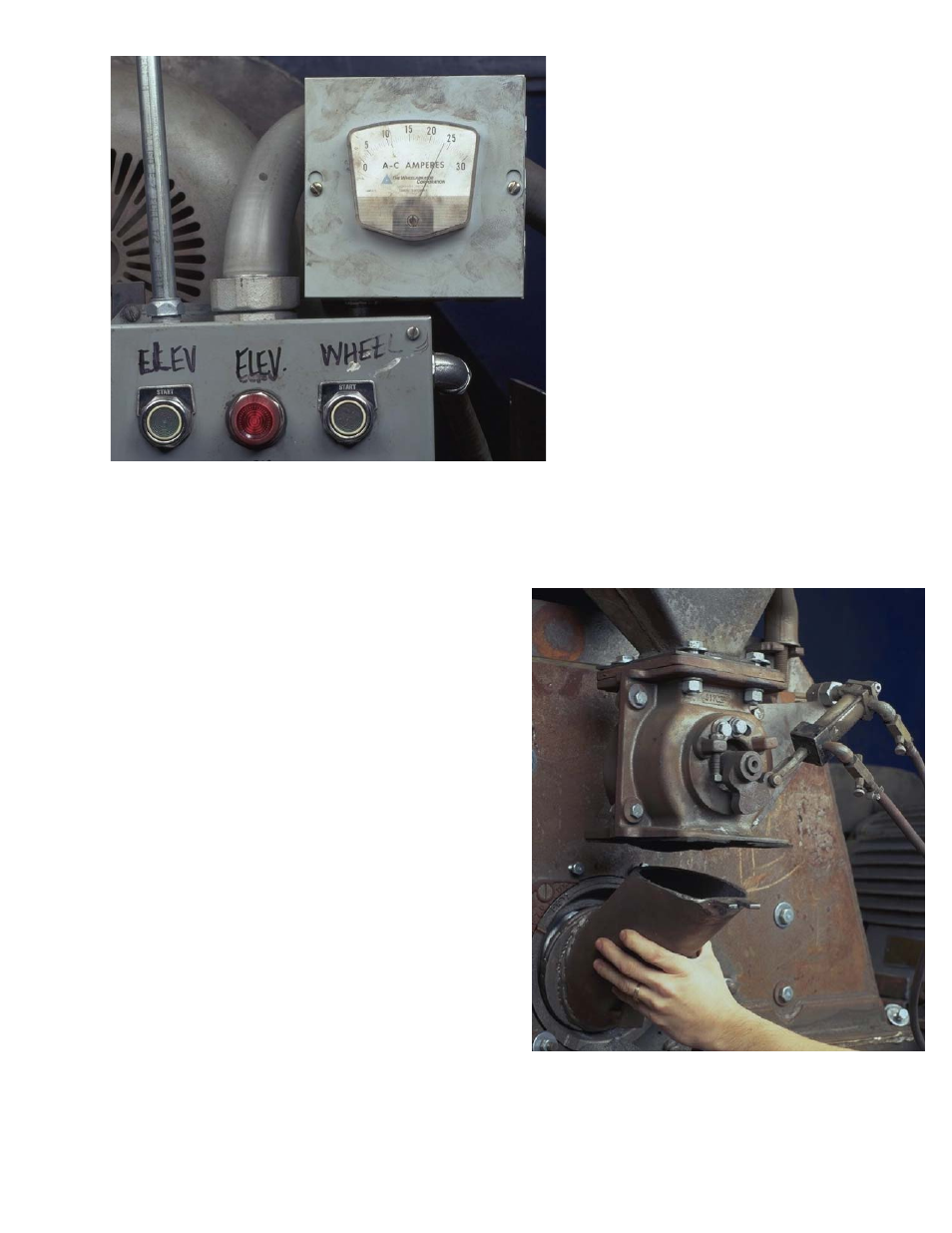

Fig. 4 This figure shows the original
operating amperage level, in this case
approximately 24 amps. The operator
was unable to confirm if this meter was
calibrated. Later tests indicated a 4
amp error.
Fig. 5 The first step in removing the
old mechanical valve is to remove the
feed spout going to the wheel inlet.
First, remove the four bolts attaching
the feed spout to the bottom of the me-
chanical valve.
Caution: Be sure the wheel is not rotat-
ing and that the machine is properly
locked out. Follow all safety precau-
tions and instructions shown on the ma-
chine or in the owner’s manual.
Fig. 4
Fig. 5
