1200 VISION X-STREAM PARTS MANUAL

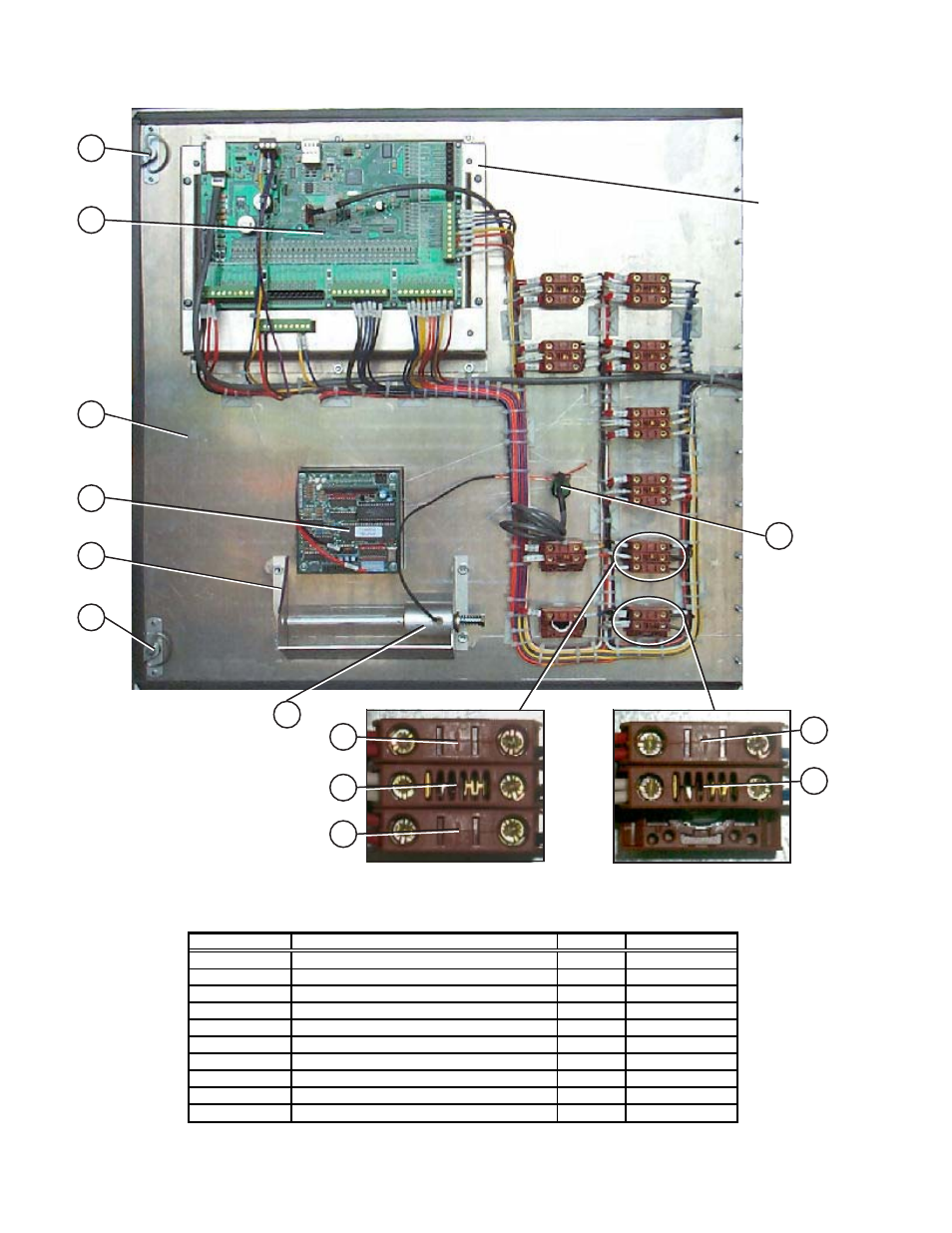

Control Box Switch Panel (Rear)
1
1A
2
8
7
8
7
7
Detailed view of a single
position switch.
Detailed view of a two
position switch.
3
4
6
5
A more
detailed parts
breakdown
of the display
& computer
is shown on
next page.
Vision control panel (rear).
9
ITEM NUMBER DESCRIPTION CIRCUIT PART NUMBER
1 SPRING LATCH SOUTHCO W/BLK KN MISC. TFH-2046
1A LATCH, SOUTHCO SLOTTED MISC. TF-1519
2 SWITCH MOUNTING PLATE 2F MISC. 401-5794-2
3 GSI MOISTURE CONTROL PRINTER CONTROL D03-0734PRNT
4 TAKE-UP MOTOR SUPPORT BRACKET MISC. 602E155BKT
5 PRINTER-PAPER TAKE-UP MISC. 602E155
6 SCR POTENTIOMETER 10K CONTROL D03-0595
7 BLOCK, CONTACT N/O CONTROL D63-0006
8 BLOCK, LIGHT 12/24/120V LAMPS CONTROL D01-0455
9 TOUCH CNTRL DISP. I/O PCB COMP CONTROL D03-0723-C
