44

PNEG-1616

1200 VISION X-STREAM PARTS MANUAL

NG Pipe Train Assemblies

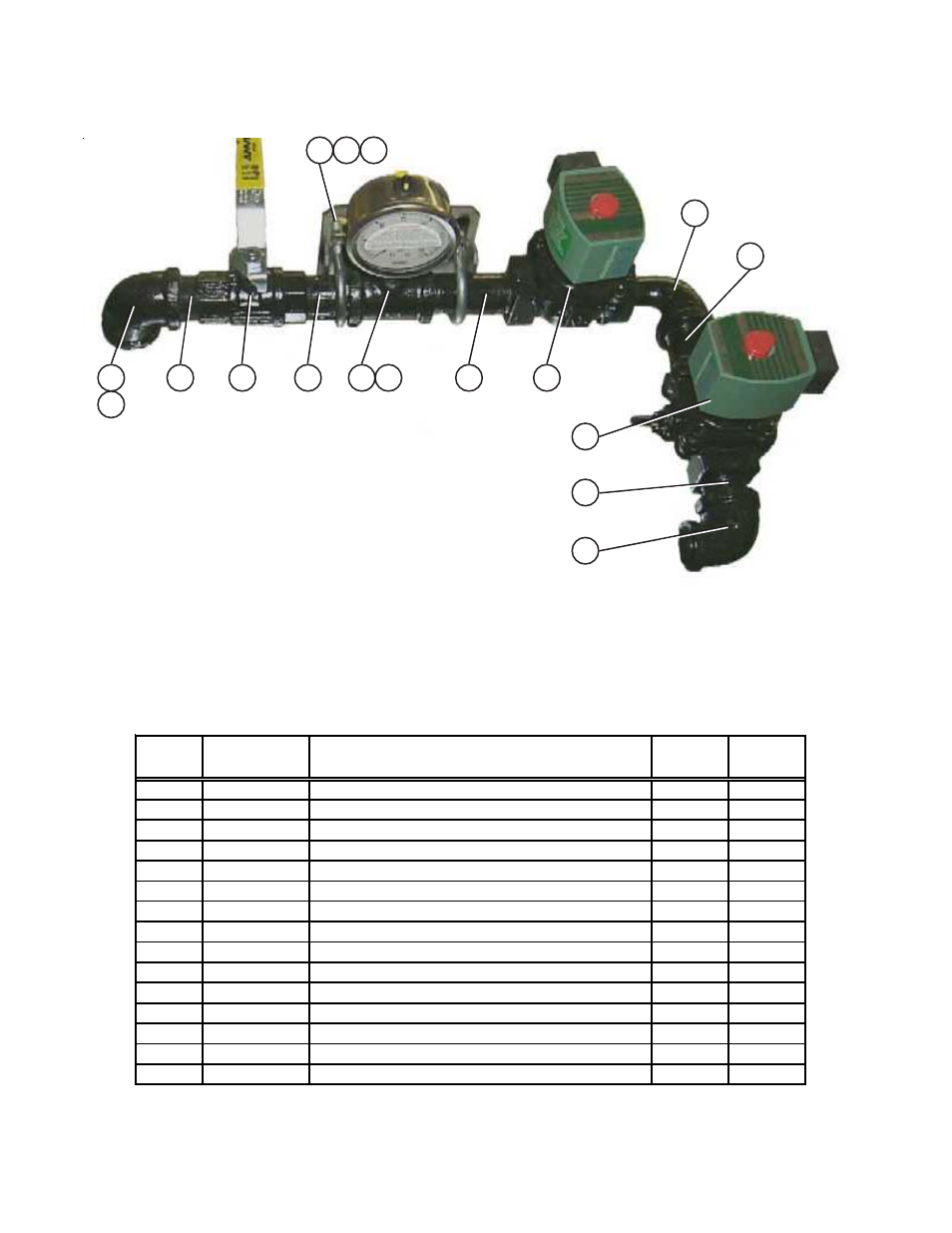

26” & 28” Fan heater NG pipe train assembly.

1

2

3

4

5 6

7

8

10

4

9

2

11

12 13 14

1A

ITEM

NUMBER

PART NUMBER

DESCRIPTION

26" FANS

28" FANS

1

THH-4149

ELBOW, 3/4" - 1/2" REDUCER SCH 40

1

1A

THH-4120

ELBOW, 3/4" -90 SCH 40

1

2

THH-4121

NIPPLE, 3/4" CLOSE SCH 40

2

2

3

007-1048-3

BALL VALVE, 3/4" W/LEVER HANDLE

1

1

4

THH-4125

NIPPLE, 3/4" x 2" SCH 40

2

2

5

THH-4154

TEE, 3/4" x 3/4" x 1/4" SCH 40

1

1

6

D08-0022

GAUGE, PRESSURE 0-15#

1

1

7

THH-4136

NIPPLE, 3/4" x 3" SCH 40

1

1

8

056-2223-8

VALVE, SOLENOID 3/4"NPT 115V DIN

1

1

9

056-2228-7

VALVE, SOLENOID 3/4"NPT 115V BYP

1

1

10

THH-4066

ELBOW, 3/4" x 90 DEG STREET SCH 40

1

1

11

007-1307-3

ELBOW, 1 - 3/4" REDUCER SCH 40

1

1

12

326-1047-9

U-BOLT 5/16-18 X 1-3/8 X 2-3/16

2

2

13

401-5503-8

PLUMBG MTG BRKT

1

1

14

401-5255-5

PLUMBG MTG BASE BRKT

1

1
