53
PNEG-1616
1200 VISION X-STREAM PARTS MANUAL
10 11 13 14 15

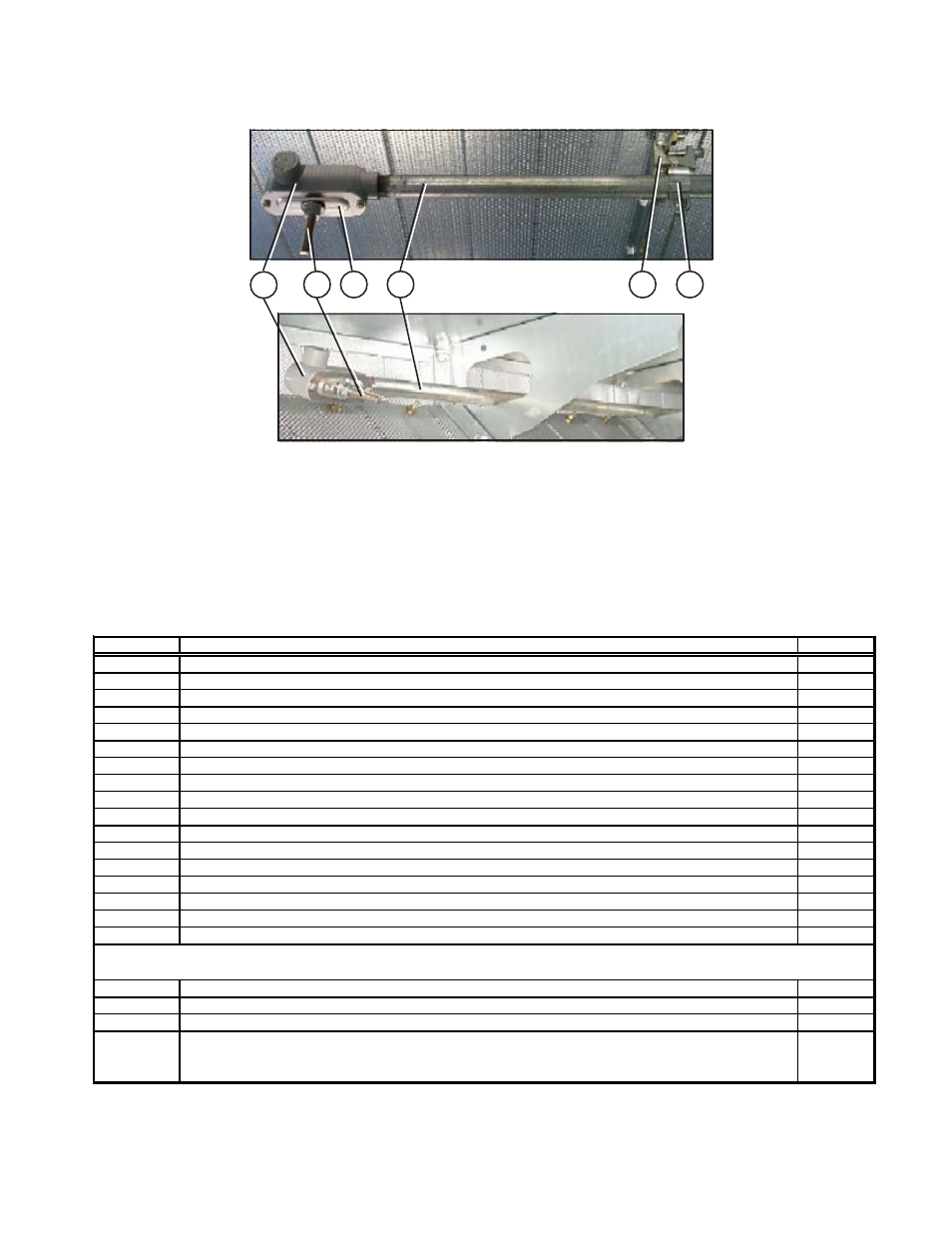

Right & Left Grain and Plenum High Limits
Upper plenum high limit thermostat conduit.
Lower plenum high limit thermostat conduit.
12
ITEM No. DESCRIPTION PART No.
1 HIGH LIMIT MOUNTING BRACKET D01-0254
2 plenum-thermostat 10' 300deg (for 14' dryers only) D03-0004
2 PLENUM-THERMOSTAT 24' 300DEG (for dryers that are 16' and longer) D03-0377
3 ENCLOSURE 4x4x2.5 WHITE PVC FH-6972
4 SEALTITE PVC 3/8" FH-7038
5 ELBOW 3/8" 90 DEGREE PVC W/NUT FH-7050
6 CONDUIT 1/2" EMT METALLIC D03-0057
7 CONNECTOR 1/2" EMT COMPRESSION D03-0054
8 GRAIN TEMP THERMISTOR SER2000 D03-0258
9 grain thermo hi-lmt 10' 210deg (for 14' dryers only) D03-0005
9 GRAIN THERMO HI-LMT 24' 210DEG (for dryers that are 16' and longer) D03-0378
10 CONDUIT BODY, LL TYPE D03-0375
11 PLENUM THERMISTOR BOLT HF-7236
12 COVER ALUMINUM, CONDUIT BODY TFC-0075
13 PIPE SCH 40 1/2" DM60001
14 CLAMP, BEAM 1/2" GT3-0241
15 CLAMP 1/2" CONDUIT HH-1096
not shown conduit 1/2" emt metallic D03-0057
not shown connector 1/2" emt compression (2/conduit; 1 at each end of the dryer.) D03-0054
not shown coupler 1/2" emt compression (couples the lengths of 1/2" emt) D33-0002
not shown enclosure 4x4x2.5 white pvc (as of 2003 a 4x4 enclosure has been added to these assemlies and is mounted
on the rear column end panels into which thr grain high limit thermostat conduits now terminate.) FH-6972
the following components make up the grain high limit conduits that run through the grain columns. The conduit assemblies are not shown in
the photos.
