1200 VISION X-STREAM PARTS MANUAL
30
28
31
29
26
24
27
25
23

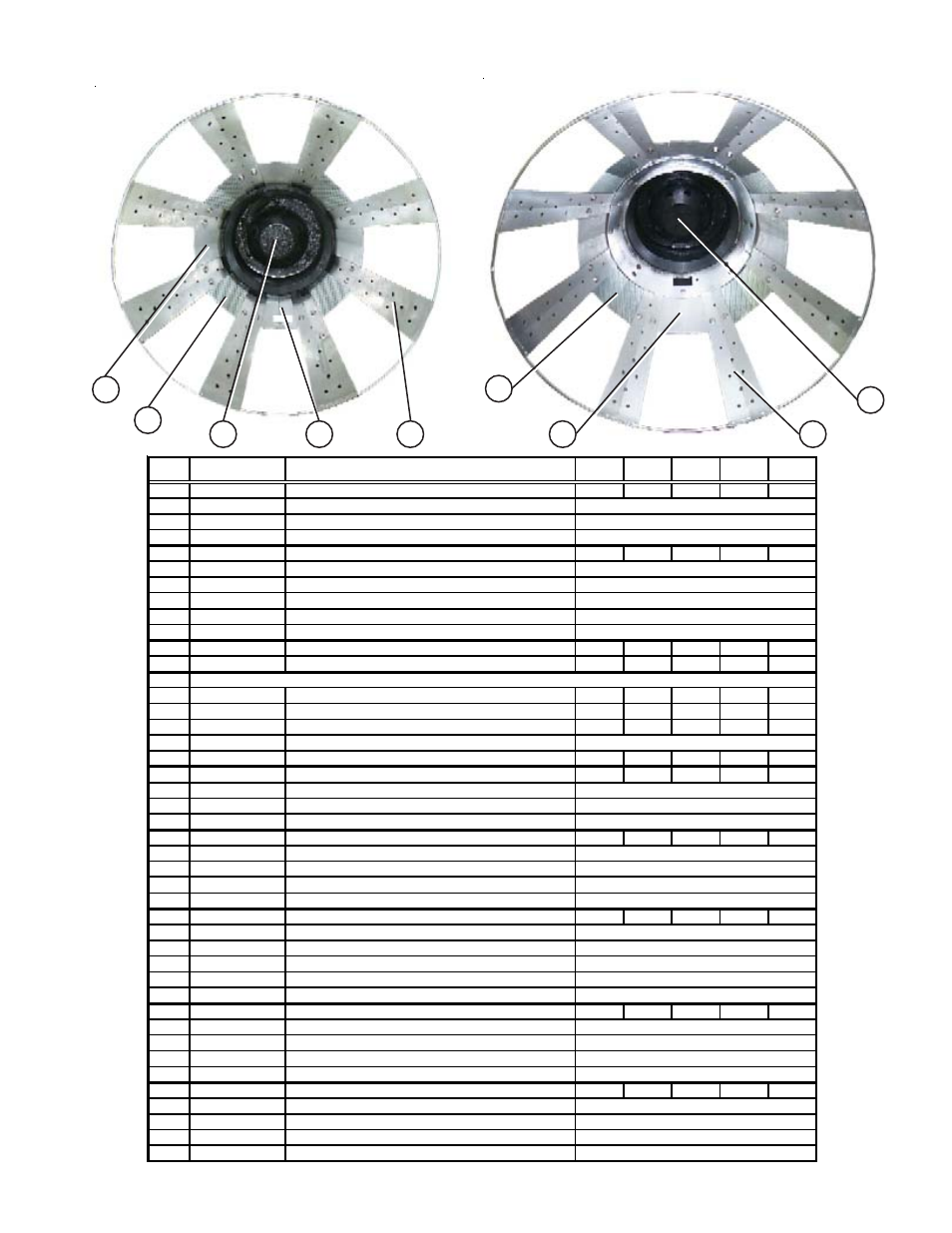

36” Fan heater burner assembly.
40” &42” Fan heater burner assembly.
Flame Probe, Ignitor, and Burner Assemblies
ITEM PART NUMBER
DESCRIPTION
26" F/H 28" F/H 36" F/H 40" F/H 42" F/H
1-3
TF-1559-N
FLAME PROBE ASSY NETWK
1
1
1
1
1
1
HH-7025
BOOT 8MM SILICONE 90DEGREE
2
THH-4179
FLAME SENSOR 6" LONG ROD
3
CD-0187
FLAME SENSOR BRACKET
4-8
TF-1558
IGNITOR ASSEMBLY
1
1
1
1
1
4
HF-7204
DUAL PROBE IGNITOR BRACKET
5
D01-0878
IGNITOR AIR DEFLECTOR ANGLE
6
HF-7201
IGNITOR HALF CLAMP
7
CD-0238
IGNITOR FLAME
8
TF-1876
IGNITION WIRE ASSY (includes both wires)
9
HH-7054
CONE 26/28" BURNER S.S.
1
1
9
HH-7056
CONE 36/42" BURNER S.S.
1
1
1
10
11
THH-4064
UNILET TYPE LRL CONDUITBX1/2"
1
1
1
1
1
12
027-1006-9
THERMOSTAT - HI LIMIT 200F AUT
1
1
1
1
1
13
D01-1473
HOUSING HI LIMIT PLATE
1
1
1
1
1
14
No Number
LID FOR LRL CONDUIT BOX IS PART OF ITEM 11
15
TFC-0076
NEOPRENE GASKET, CONDUIT BODY
1
1
1
1
1
16-18
BA-26
26" BURNER ASSEMBLY
1
16
HF-992
26" DIVERTER WELDMENT
17
HH-3934
BURNER GUN MACHINED 26"
18
HH-1179
FLAME SPREADER 26"
19-22
BA-28
28" BURNER ASSEMBLY
1
19
HF-7629
DIVERTER WELDMENT 28"
20
THF-3144
FLAME SPREADER 28"
21
THF-3141
HEATER GUN MACHINED 28"
22
THF-3113
28" DIVERTER BRACKET
23-27
BA-36
36" BURNER ASSEMBLY
1
23
THF-3038
DIVERTER BRACKET 36" & 40"
24
THF-3038P
DIVERTER BRACKET 36" & 40" PERFED
25
THF-3039
DIVERTER BRACKET 36" & 40" W/HOLE
26
THF-3057
FLAME SPREADER 36-42"
27
CD-0091
BURNER WELDMENT CD 36" & 40"
28-31
BA-40-2
40" BURNER ASSEMBLY
1
28
CD-0448P
DIVERTER BRACKET 42" PERFD
29
CD-0448
DIVERTER BRACKET 42"
30
CD-0208
BURNER WELDMENT CD 42"
31
THF-3057
FLAME SPREADER 36-42"
28-31
BA-42
42" BURNER ASSEMBLY
1
28
CD-0448P
DIVERTER BRACKET 42" PERFD
29
CD-0448
DIVERTER BRACKET 42"
30
CD-0208
BURNER WELDMENT CD 42"
31
THF-3057
FLAME SPREADER 36-42"
1/ASSEMBLY
3/ASSEMBLY
4/ASSEMBLY
1/ASSEMBLY
NOT APPLICABLE
SEE CHART ON PAGE 36
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
2/ASSEMBLY
2/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
4/ASSEMBLY
4/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
4/ASSEMBLY
4/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
1/ASSEMBLY
