1200 VISION X-STREAM PARTS MANUAL
NG Pipe Train Assemblies
1
12 13 14
2 3 2 4
5
6 7 9
10
8
7
2
11

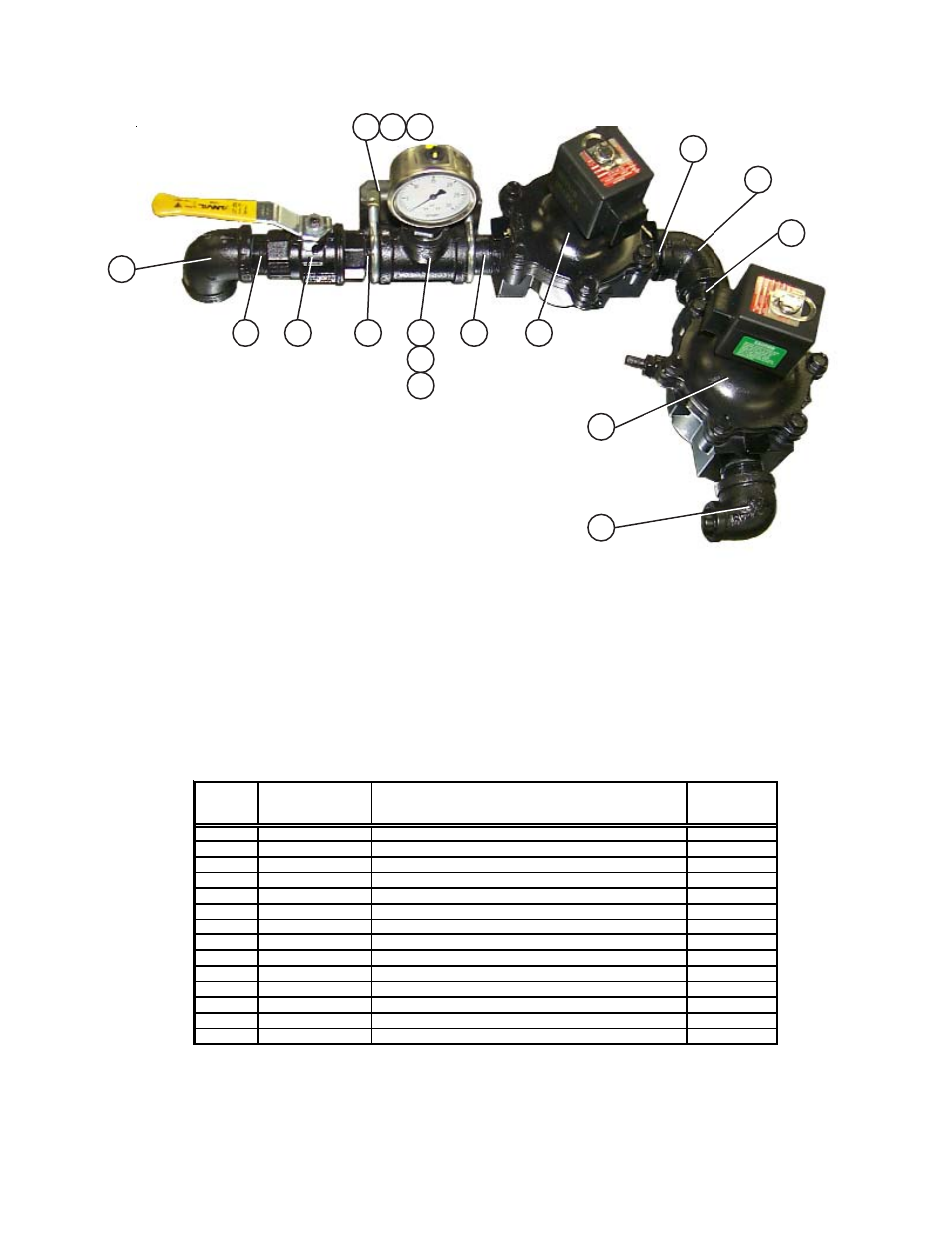

36” Fan heater NG pipe train assembly.
ITEM
NUMBER
PART NUMBER DESCRIPTION 36" FAN
1 007-1307-3 ELBOW, 1" - 3/4" 1
2 007-1104-4 NIPPLE, CLOSE 1" 3
3 007-1296-8 BALL VALVE, 1" W/LEVER HANDLE 1
4 007-1106-9 TEE, 1" x 1" x 3/4" 1
5 D07-0027 REDUCER, 3/4" - 1/4" HEX BUSHING 1
6 D08-0022 GAUGE, PRESSURE 0-15# 1
7 007-1242-2 NIPPLE, 1" x 2" SCH 40 2
8 THH-4115 ELBOW, 1"-90 DEG. SCH 40 1
9 056-2224-6 VALVE, SOLENOID 1"NPT 115V DIN 1
10 056-2230-3 VALVE, SOLENOID 1"NPT 115V W/BYP 1
11 THH-4164 ELBOW, 1"-90 DEG. STREET SCH 40 1
12 326-1047-9 U-BOLT 5/16-18 X 1-3/8 X 2-3/16 2
13 401-5503-8 PLUMBG MTG BRKT 1
14 401-5255-5 PLUMBG MTG BASE BRKT 1
