48
PNEG-1616
1200 VISION X-STREAM PARTS MANUAL

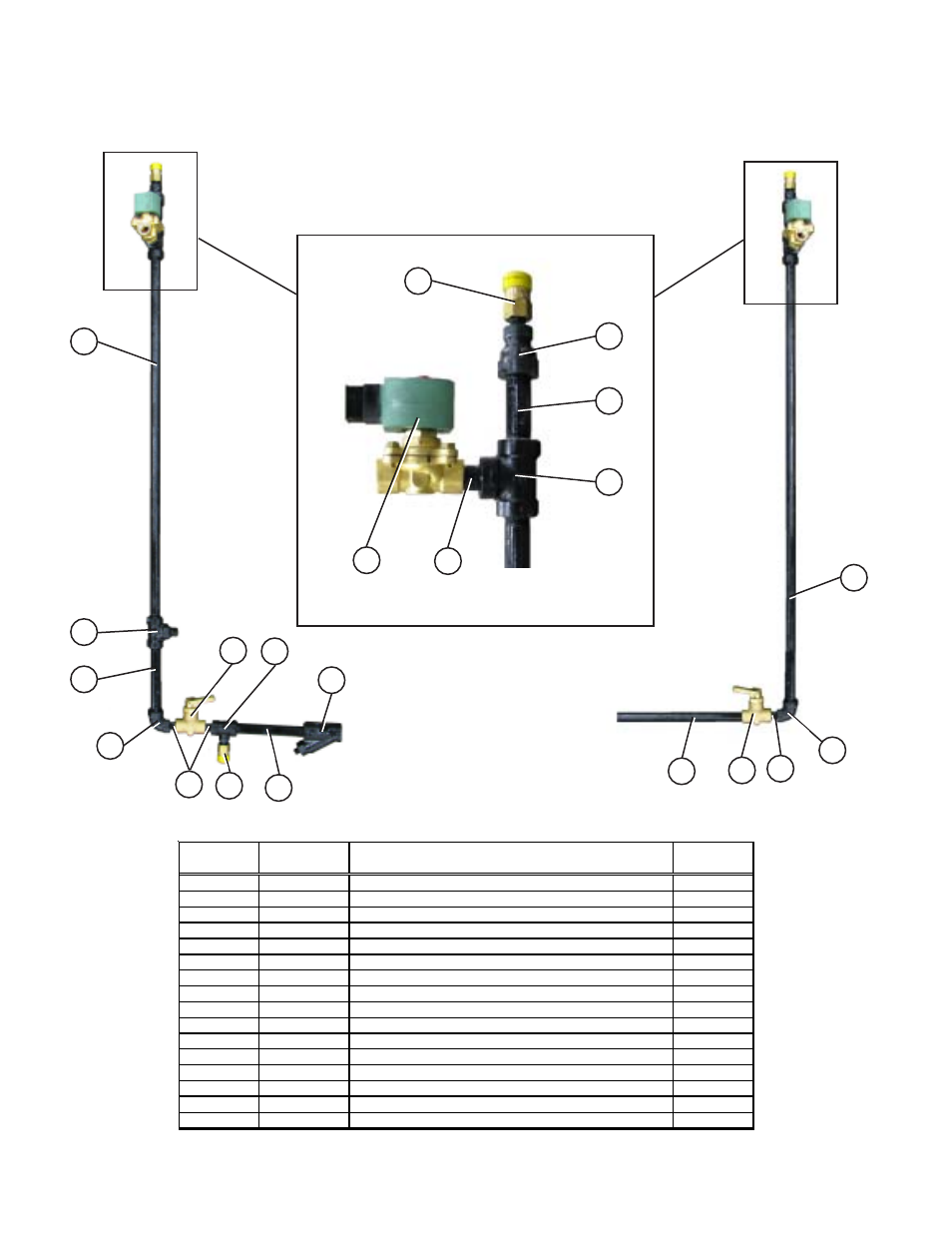

LP Supply Line
Front LP supply line.
1
2
3
ITEM No. PA RT No. DESCRIPTION
LP SUPPLY
LINE
1 HH-7088 NIPPLE, 1/2" x 31" SCH 80 1
2 THH-4058 TEE, 1/2" x 1/2" x 1/2" SCH 80 3
2A HH-1932 ELBOW, 1/2"PIPE/1/2"FLA RE BRA SS 1
3 HH-3854 NIPPLE, 1/2" x 6" SCH 80 2
4 HH-4847 ELBOW, 1/2"-90 SCH 80 3
5 D07-0019 NIPPLE, 1/2" x 1 1/2" SCH 80 5
6 HH-1376 V A LV E, V A PORIZER SHUT-OFF 2
7 HH-4846 TEE, 1/2" x 1/2" x 1/4" SCH 80 1
8 TFC-0027 V A LV E, 1/4" NPT 250 PSI RELIEF 3
9 HH-1251 STRA INER, "Y " SCH 80 1
10 D87-0001 NIPPLE, 1/2" x 55" SCH 80 1
11 D01-2408 NIPPLE, 1/2"X98" SCH80 1
12 TFC-0100 V A LV E, 1/2" NPT SOLENOID LP W/DIN 2
13 D07-0023 NIPPLE, 1/2" x 3" SCH 80 2
14 007-1265-3 RDCR 1/2-1/4 BELL SCH80 2
NOT SHOWN 006-1353-9 CORD A SSEMBLY FOR SUPPLY LINE LIQUID SOLENOID 2
Rear LP supply line.
6 7
4
5
4
8 3
9
5 6 10
11
12 5
2
13
14
8
