3. Fan/Heaters
46 PNEG-1402 Vision Series Model 1100 Portable Dryers

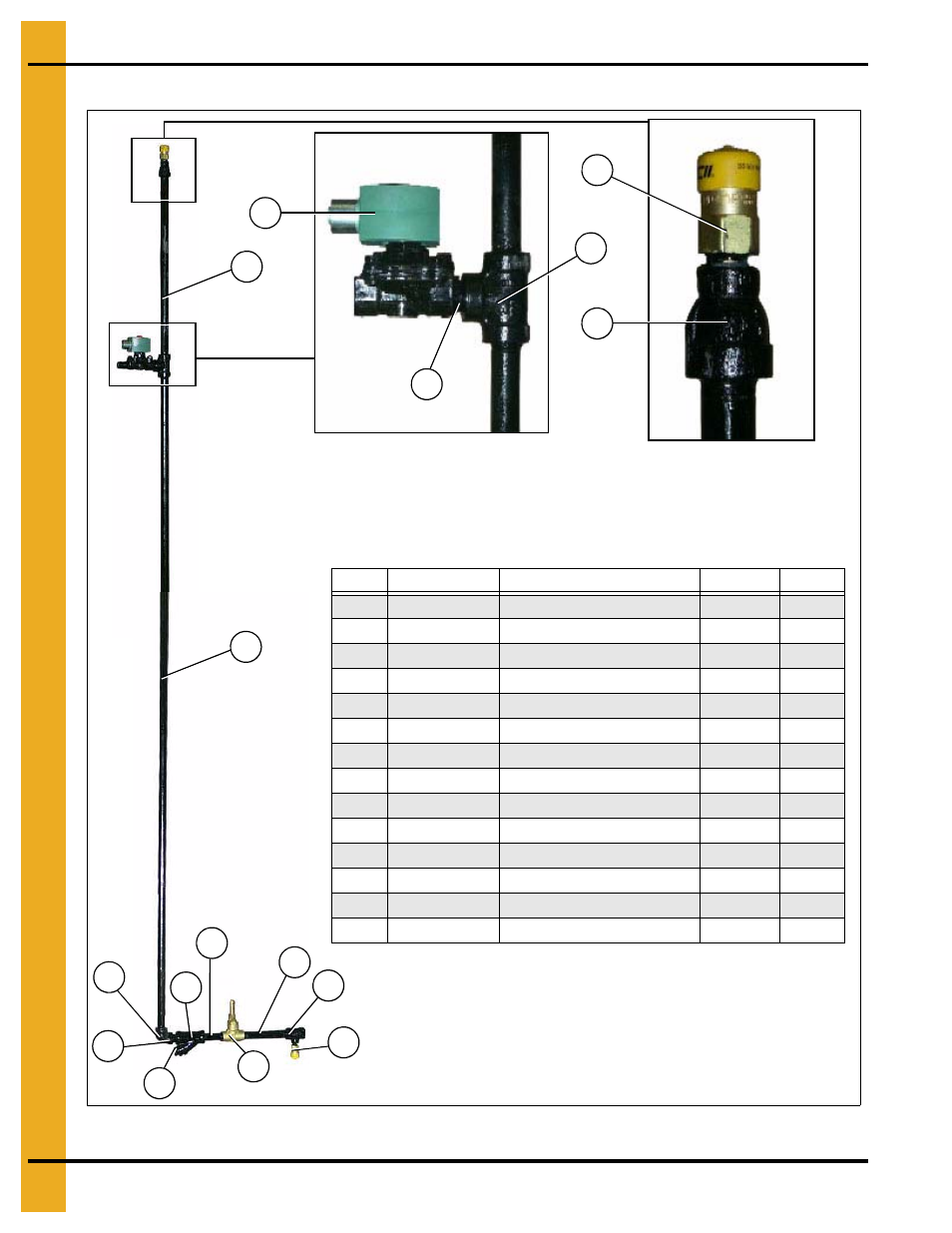

LP Supply Line
Figure 3K
Ref # Part # Description 1108T-1112 1114-1126
1 TFC-0027 Valve 1/4" NPT 250 PSI 2 2
2 THH-4144 Reducer 1/2" x 1/4" Bell SCH 80 1 1
3 D01-1186 Nipple, 1/2" x 21" SCH 80 1 1
4 TFC-0100 Valve, 1/2" NPT Sol w/ Din 1 1
5 D07-0019 Nipple, 1/2" x 1-1/2" SCH 80 2 2
6 THH-4058 Tee 1/2" x 1/2" x 1/2" SCH 80 1 1
7 D01-1185 Nipple, 1/2" x 67" SCH 80 1 1
8 HH-4847 Elbow, 1/2" - 90° SCH 80 1 1
9 007-1747-0 Pipe Plug, 1/4" 1 1
10 D07-0023 Nipple, 1/2" x 3" SCH 80 1 1
11 HH-1376 Valve, Vaporizer Shut Off 1 1
12 HH-3854 Nipple, 1/2" x 6" SCH 80 1 1
13 HH-4846 Tee 1/2" x 1/2" x 1/4" SCH 80 1 1
14 HH-1251 Strainer, 1/2" “Y” SCH 80 1 1
8
14
10
12
9
1
5
13
5
6
7
3
11
4
1
2
