3. Fan/Heaters
PNEG-1402 Vision Series Model 1100 Portable Dryers 45
NG Pipe Train Assemblies (Continued)

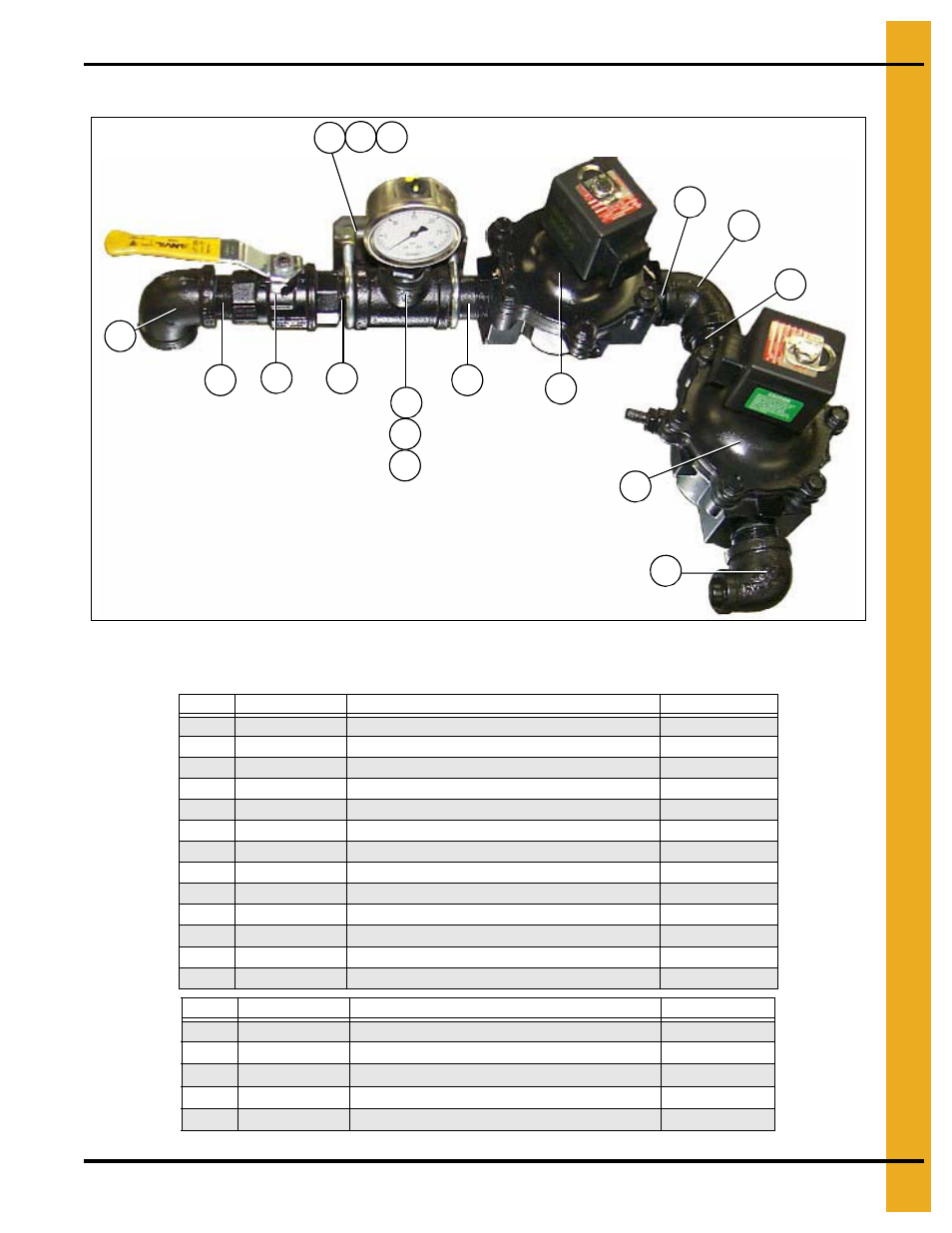

Figure 3J 40" and 42" Fan/Heater NG Pipe Train Assembly
40" and 42" Fan/Heater NG Pipe Train Assembly Parts List
Ref # Part # Description 40'' and 42'' F/H
1 THH-4115 Elbow, 1" - 90° SCH 40 2
2 007-1104-4 Nipple, Close 1" 3
3 007-1296-8 Ball Valve, 1" w/ Lever Handle 1
4 007-1106-9 Tee, 1" x 1" x 3/4" 1
5 D07-0027 Reducer, 3/4"-1/4" Hex Bushing 1
6 D08-0022 Gauge, Pressure 0-15# 1
7 007-1242-2 Nipple, 1" x 2" SCH 40 2
8 THH-4164 Elbow, 1" - 90° Street SCH 40 1
9 056-2224-6 Valve, Solenoid 1" NPT 115V Din 1
10 056-2230-3 Valve, Solenoid 1" NPT 115V w/ Bypass 1
11 326-1047-9 U-Bolt 5/16"-18 x 1-3/8" x 2-3/16" 2
12 401-5503-8 Plumbing Mounting Bracket 1
13 401-5255-5 Plumbing Mounting Base Bracket 1
Ref # Part # Description Orifice Size
N/S THF-3246 Orifice for 40" Fans W/15 HP Motors 0.516"
N/S THF-3248 Orifice for 42" Fans W/20 HP Motors 0.547"
N/S THF-3250 Orifice for 42" Fans W/25 HP Motors 0.578"
N/S THF-3251 Orifice for 42" Fans W/30 HP Motors 0.594"
N/S THF-3253 Orifice for 42" Fans W/40 HP Motors 0.641"
12 13
1
10
7
1
2
11
8
2 3 2
5
6
4
7
9
