3. Fan/Heaters
PNEG-1402 Vision Series Model 1100 Portable Dryers 35
Fan Motor, Motor Mount and Fan Blade

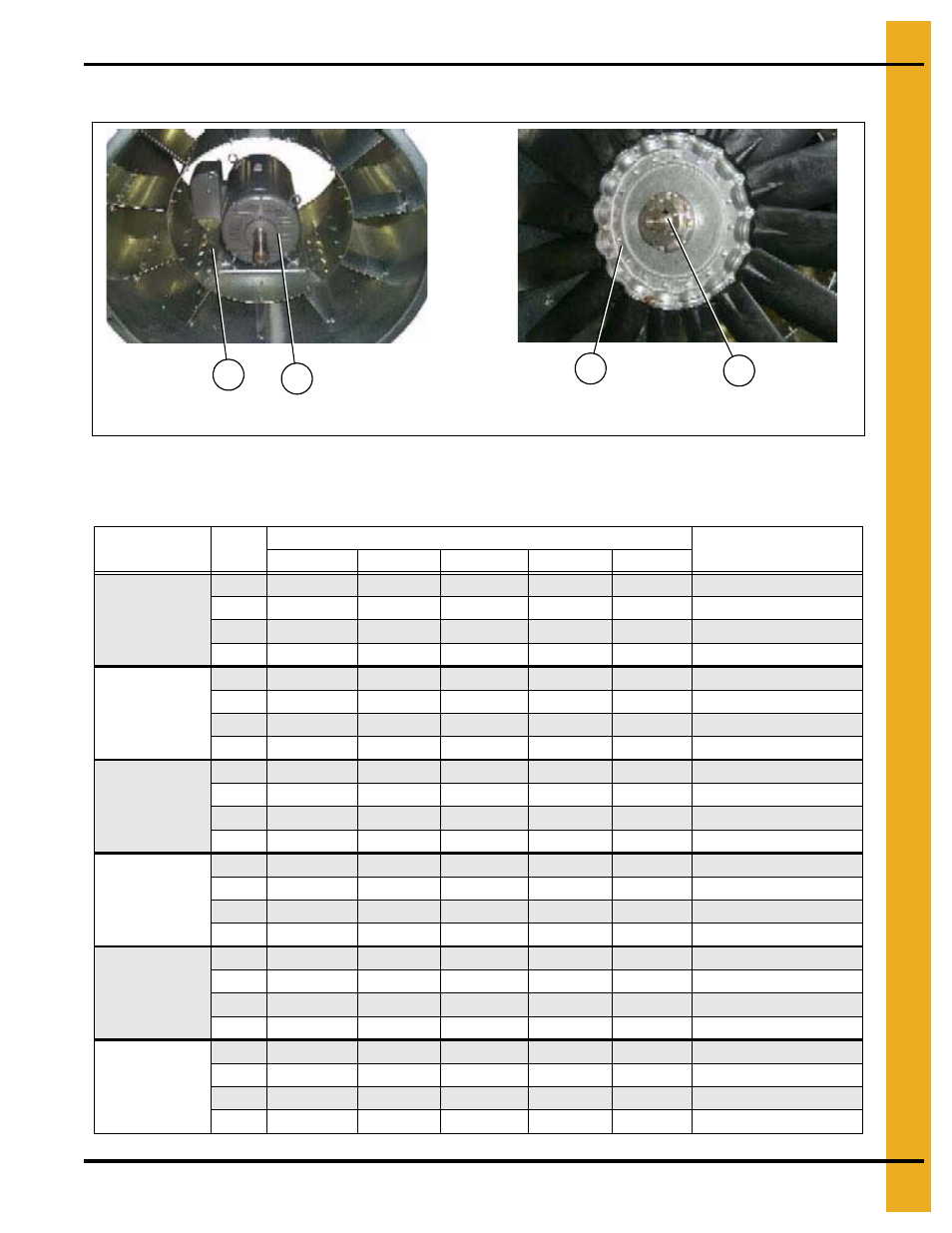

Figure 3C
Fan Motor, Motor Mount and Fan Blade Parts List
Fan/Heater
(Diameter, HP)
Ref #
Part #
Description
220V 1 PH 208V 3 PH 220V 3 PH 440V 3 PH 575V 3 PH
36" 15 HP
1 D01-1478 D01-1478 D01-1478 D01-1478 D01-1478 Motor Mount
2 002-1073-2 CH-1050 CH-1050 CH-1050 CH-6820 Motor
3 D82-0002 D82-0002 D82-0002 D82-0002 D82-0002 Fan Blade
4 FH-1009 FH-6963 FH-6963 FH-6963 FH-6963 Bushing
40" 15 HP
1 D01-1481 D01-1481 D01-1481 D01-1481 D01-1481 Motor Mount
2 CD-0571 CH-1050 CH-1050 CH-1050 CH-6820 Motor
3 D03-0567 D03-0567 D03-0567 D03-0567 D03-0567 Fan Blade
4 GC03810 GC03810 GC03810 GC03810 GC03810 Bushing
42" 20 HP
1 N/A D01-1453 D01-1453 D01-1453 D01-1453 Motor Mount
2 N/A CH-1051 CH-1051 CH-1051 2000-3-5 Motor
3 N/A D01-0470 D01-0470 D01-0470 D01-0470 Fan Blade
4 N/A GC03810 GC03810 GC03810 GC03810 Bushing
42" 25 HP
1 N/A D01-1474 D01-1474 D01-1474 D01-1474 Motor Mount
2 N/A C-2049 C-2049 C-2049 CH-6692 Motor
3 N/A D01-0471 D01-0471 D01-0471 D01-0471 Fan Blade
4 N/A CE-00617 CE-00617 CE-00617 CE-00617 Bushing
42" 30 HP
1 N/A D01-1474 D01-1474 D01-1474 D01-1474 Motor Mount
2 N/A TFH-2011 TFH-2011 TFH-2011 CH-6917 Motor
3 N/A D01-0472 D01-0472 D01-0472 D01-0472 Fan Blade
4 N/A CE-00617 CE-00617 CE-00617 CE-00617 Bushing
42" 40 HP
1 N/A D01-1475 D01-1475 D01-1475 D01-1475 Motor Mount
2 N/A CH-6848 CH-6848 CH-6848 CH-6887 Motor
3 N/A D01-0473 D01-0473 D01-0473 D01-0473 Fan Blade
4 N/A PT0784 PT0784 PT0784 PT0784 Bushing
Fan blade and bushing
Fan motor and motor mount
1
2
4 3
