20 12" & 14" Commercial Bin Sweep Augers PNEG-1050
Assembly
3. FLIGHT AND SHIELD ASSEMBLY (cont.)
Drive Unit and Pivot Point
Sweep Tractor
Sweep End Wheel
Bearing Stand (2 Places)
Drive Unit and
Pivot Point
Sweep Tractor
Sweep End Wheel
Bearing Stand (3 Places)
Drive Unit and
Pivot Point
Sweep Tractor
Sweep End Wheel
Bearing Stand (4 Places)
Drive Unit and
Pivot Point
Sweep Tractor
Sweep End Wheel
Bearing Stand (5 Places)
Truss Cable
Truss Stand
Sweep Carrier
Truss Cable
Truss Stand
Truss Stand
Sweep
Tractor
Bearing Stand (6 Places)
Drive Unit and
Pivot Point
Sweep Carrier
(See Fig. 14 on pg. 25)
Sweep End
Wheel
Sweep Carrier
Truss Cable
Truss Stand
(See Fig. 13 on pg. 25)
Two Flight Section Units (36' - 43' Bin Dia.)
Three Flight Section Units (48' - 62' Bin Dia.)
Four Flight Section Units (68' - 80' Bin Dia.)
Five Flight Section Units (88' - 92')
Six Flight Units (105' - 120' Bin Dia.)
(See Fig. 13 on pg. 25)
(See Fig. 14 on pg. 25)
(See Fig. 14 on pg. 25) (See Fig. 13 on pg. 25)

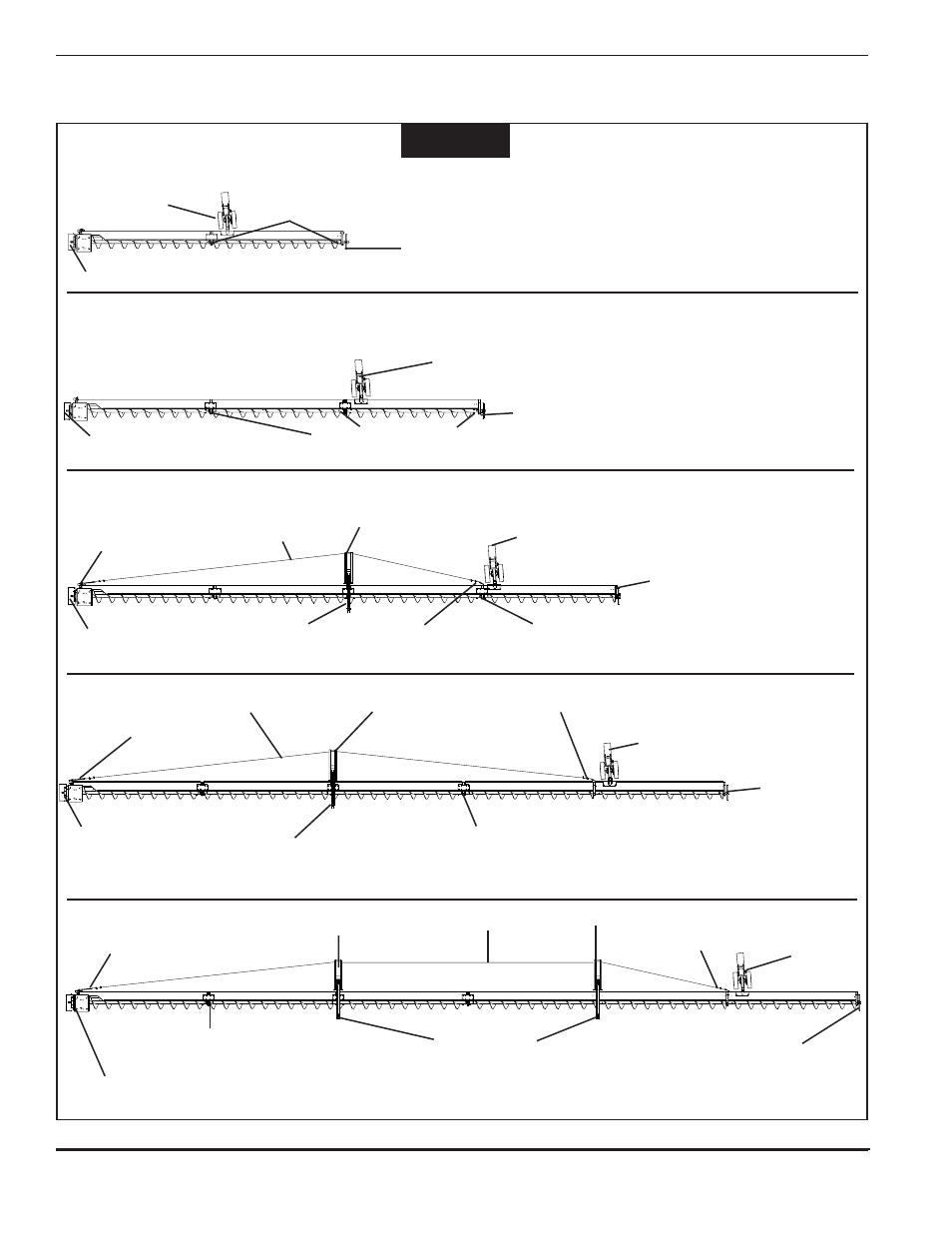

FIG. 6
Sweep Flight Back Shield Layouts
