Optional rotary switch roof location, Optional rotary switch panel location, Figure #47 – Grain Systems PNEG-365 User Manual
Page 41
41
Grain Systems, Inc. Assumption, Ill.
18' Manual Batch

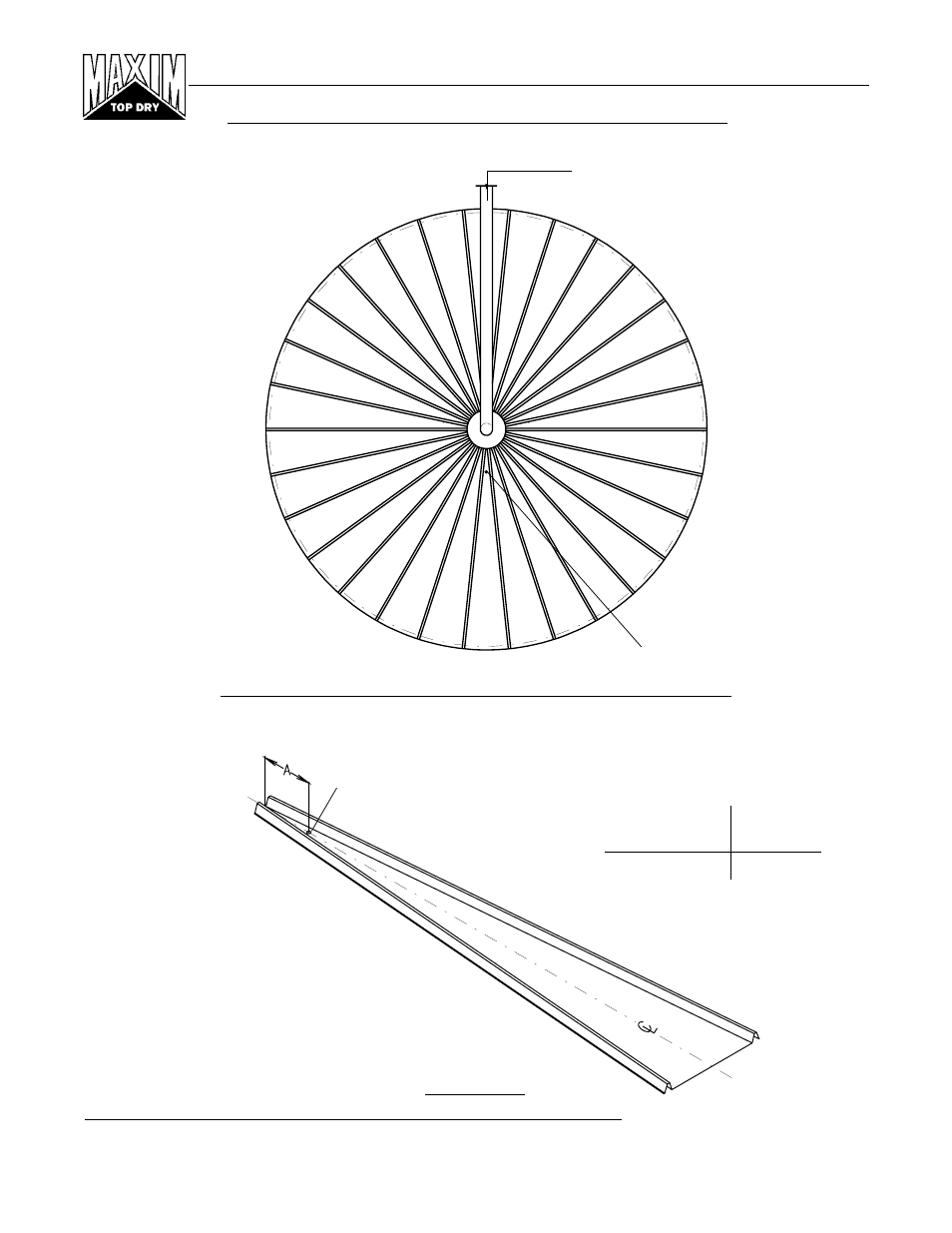

OPTIONAL ROTARY SWITCH ROOF LOCATION
REV. 9-30-96
Overhead View of optional rotary Switch Location
Fill Spout
Optional Rotary Switch
OPTIONAL ROTARY SWITCH PANEL LOCATION
Drill 2" diameter holes through roof panels at locations shown above. Use a mounting plate as a pattern and drill
(4) 3/8" holes through roof panels at each switch location so the plate can be bolted to the roof.
Field Drill 2" Hole
Figure #47
Top Dry Bin
Diameter
18'
"A"
23.50"
