Grain Systems PNEG-365 - Manual (Page 31)

31
Grain Systems, Inc. Assumption, Ill.
18' Manual Batch

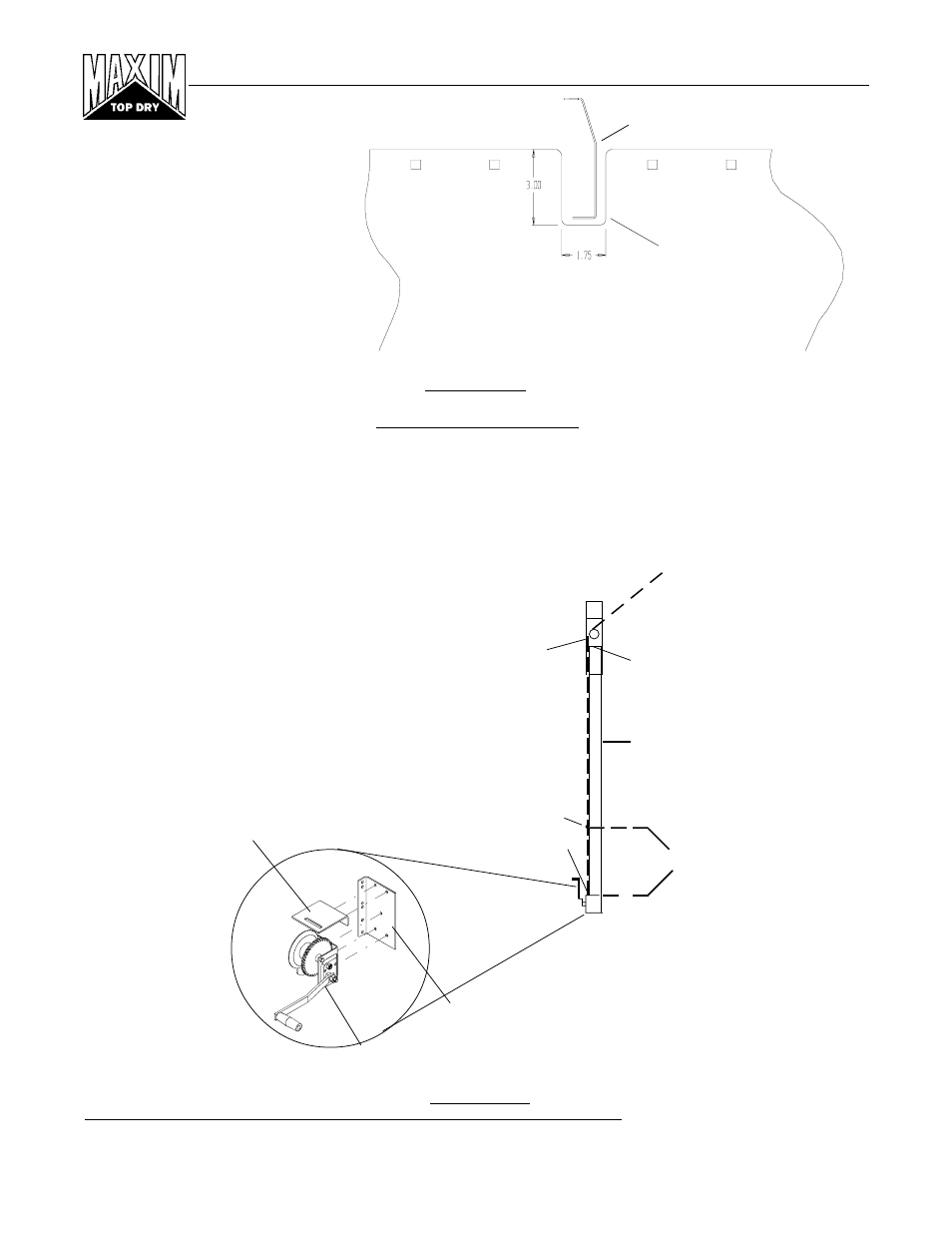

Field cut notch
Round corners to
prevent tearing
WINCH ASSEMBLY
Figure #35
Roof Ladder
Support Channel
Top Leveling Band
Note: Field cut rounded notches
in the outer leveling band(s)
where the two roof support
channels hang from the roof ribs.
Complete erection of bin. Install winch as shown using 5/16" x 3/4" bin bolts to attach to the sidewall. The cable clamps
from either side of the pulley on the cross channel should be removed and the dump chutes pulled tightly shut. Check
for the uniformity of the chains on the dump chutes and readjust if needed. The downward travel of the chutes must
be limited to prevent damage on new Top Dry bins. This can be done after the bin is complete and the cable stop bracket
and clamp is set to indicate when the dump chutes are fully closed. Open the chutes until the cable clamp is about 30"
above the cable stop bracket. Attach another cable clamp just below the small outside pulley bracket making sure it
is tight.
30"
Sidewall
Cable clamp to
limit downward
travel of chutes
S-4691
Winch
TD-100041
Winch Mount Bracket
Cable clamp
Outside pulley
brackets
Cable stop
TD-100040
Winch Stop Bracket
Figure #36
REV. 9-30-96
