Chapter 3: Dryer Supports
1. Position the leg stands (E) behind the hitch frame, and align them with the holes in the rear hitch
cross channel (D).
2. Fasten the legs to the channel using two bolts (B), four washers (C), and two nuts (A) per each leg.

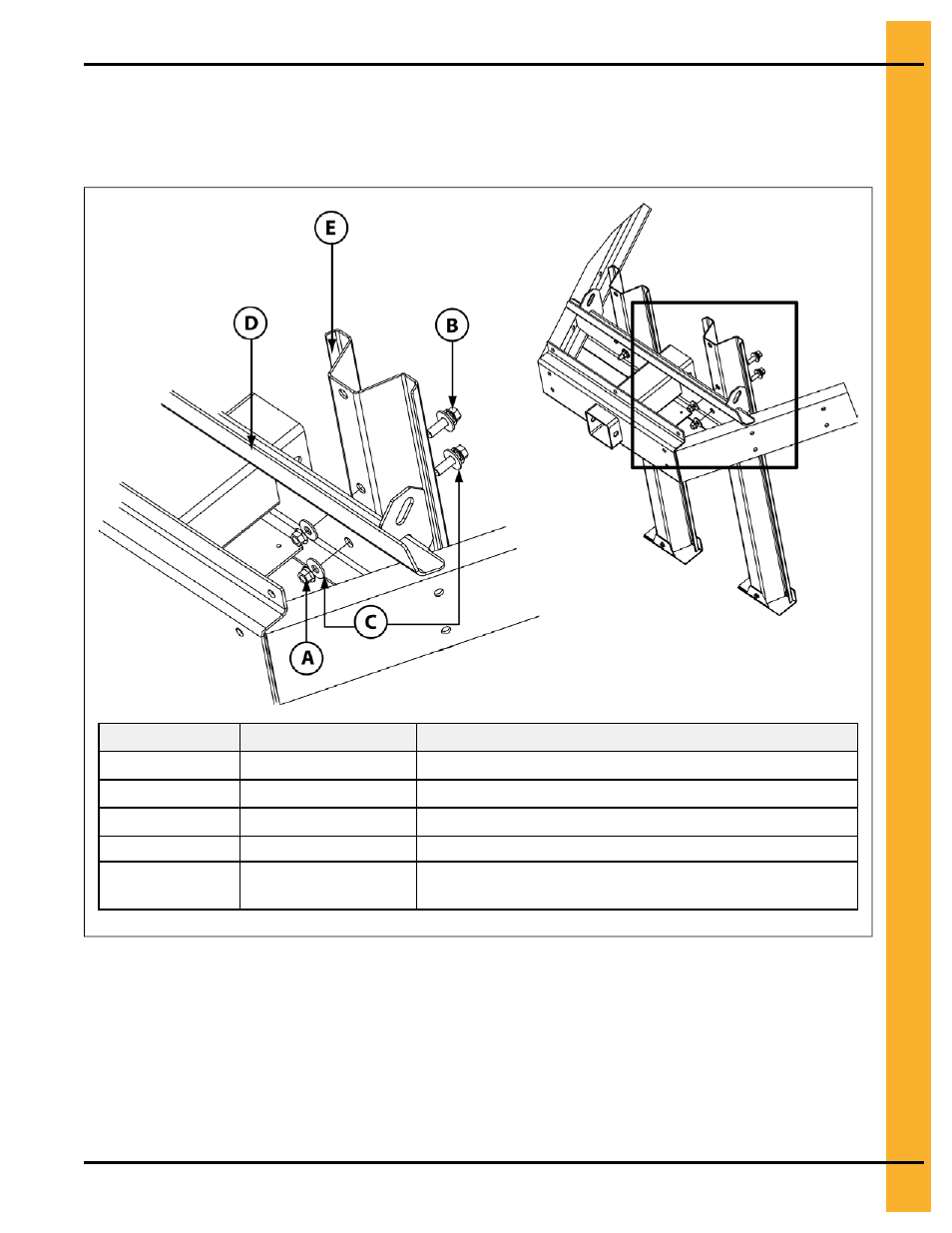

Figure 3-7 Installing leg stands to the hitch assembly
Callout Part number Description
A S-8506 1/2 in. - 13 zinc flange nut
B S-8856 1/2 in. - 13 X 1 3/4 in. zinc grade 5 flange bolt
C S-2121 1/2 in. X 1 3/8 in. type A plated flat washer
D D01–2481 Rear hitch cross channel
E D01–xxxx For leg stand, refer to Guidelines for Supporting the Dryer with
Leg Stands, page 16
Pneg-1891 Portable Dryers 21
