Chapter 3: Dryer Supports
Installing a Leg Stand to the Dryer Basket Corner
If not using concrete blocks, you must install leg stands to the dryer frame at the dryer basket corners to
support the dryer.
What You Should Know
The additional width of the hitch bracket requires the use of an extra shim to install the legs located at the
dryer frame corners.
To install a leg stand to the dryer basket corner:
1. Remove the two existing bolts and nuts from the dryer frame corner (E and F).
2. Align the holes in leg stand (H) with the holes in the dryer frame corner, and fasten in place using the
bolts and nuts that were previously removed (E and F).
3. Align the top hole in the leg stand with the hole in the basket corner leg (G).
4. Fasten the legs together using bolt (B), washer (C), two shims (A), and nut (D).

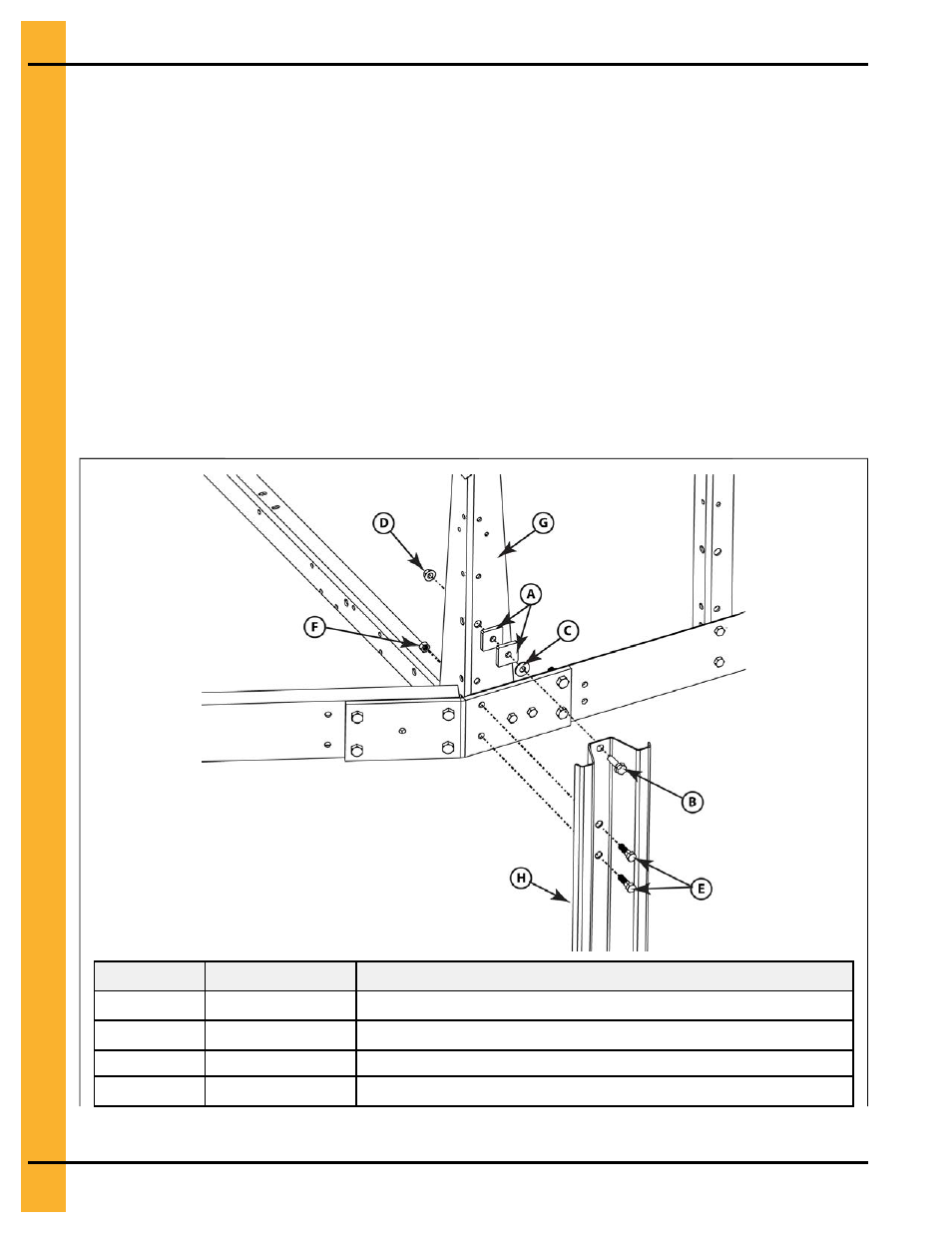

Figure 3-5 Installing a leg stand to the dryer basket corner
Callout Part number Description
A D01–1221 Shim dryer stand to dryer
B S-8856 1/2 in. - 13 X 1 3/4 in. zinc grade 5 flange bolt
C S-2121 1/2 in. X 1 3/8 in. flat washer
D S-8506 1/2 in. - 13 zinc flange nut
