6. Vision Touch Screen Display
PNEG-1797CE CE Approved T-Series Tower Dryer 33
1. Dryer operation animation shows the status of the fan/heaters, load and unload augers and meter
rolls. Also grain temperature, moisture content, M/C set point and tones counter.
2. Dryer status indicates if the dryer is stopped, started, loading or unloading.
3. Dryer status chart shows the grain temperature, moisture in/out, temperature out and metering roll
speed. Over a period of time.
4. Plenum shows the plenum temperature set point (SP), actual plenum temperature and
burner status.
5. Setup buttons provides access to timers, temperature set points, dryer model and moisture
control setup.

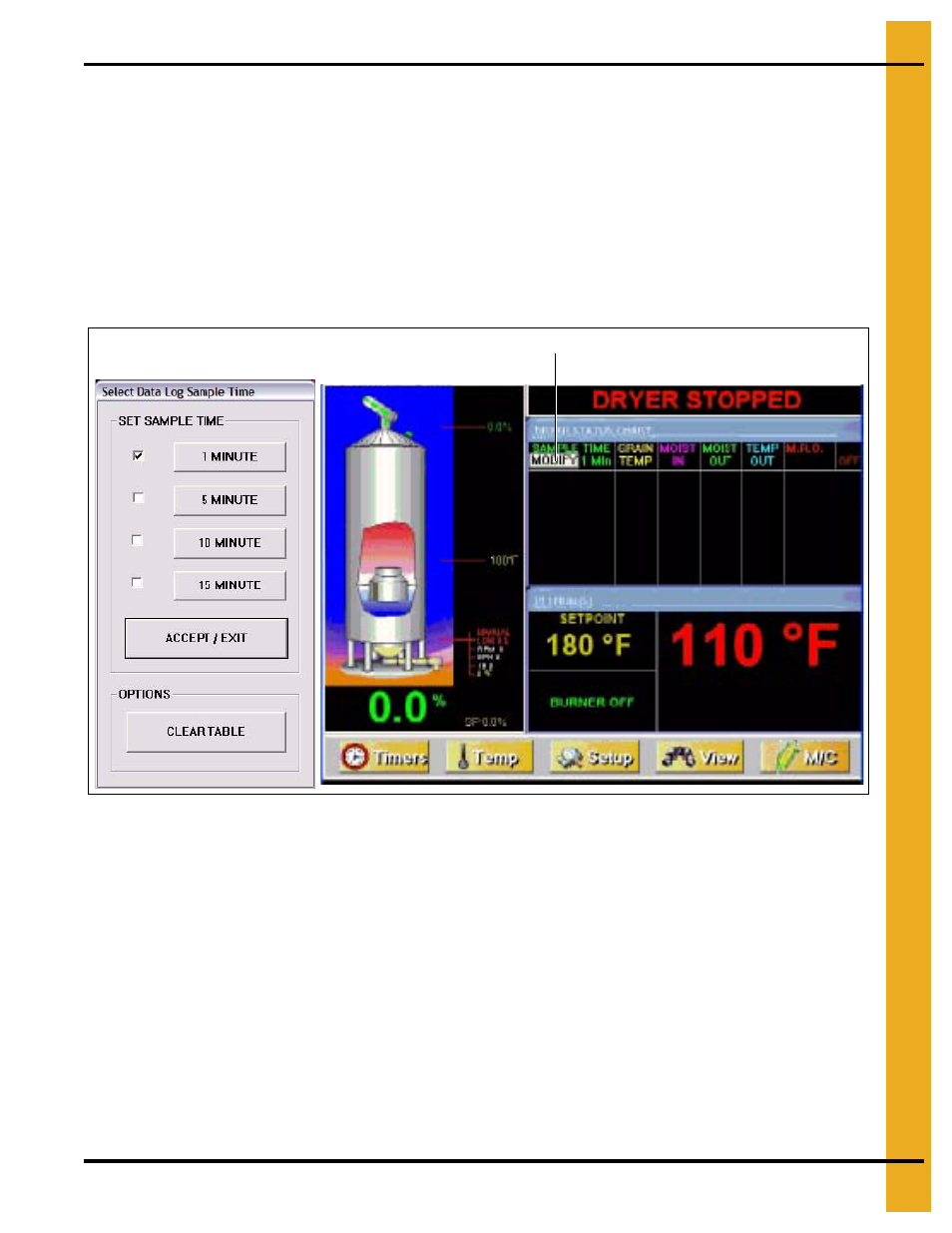

Figure 6C
Select Data Log Sample Time
To change the sample time:
1. Press modify.
2. Select required time.
3. Press Accept/Exit.
To clear the table, press Clear Table button. (See Figure 6C.)
Modify button
