5. Operating Controls

Vision Control Panel Layout

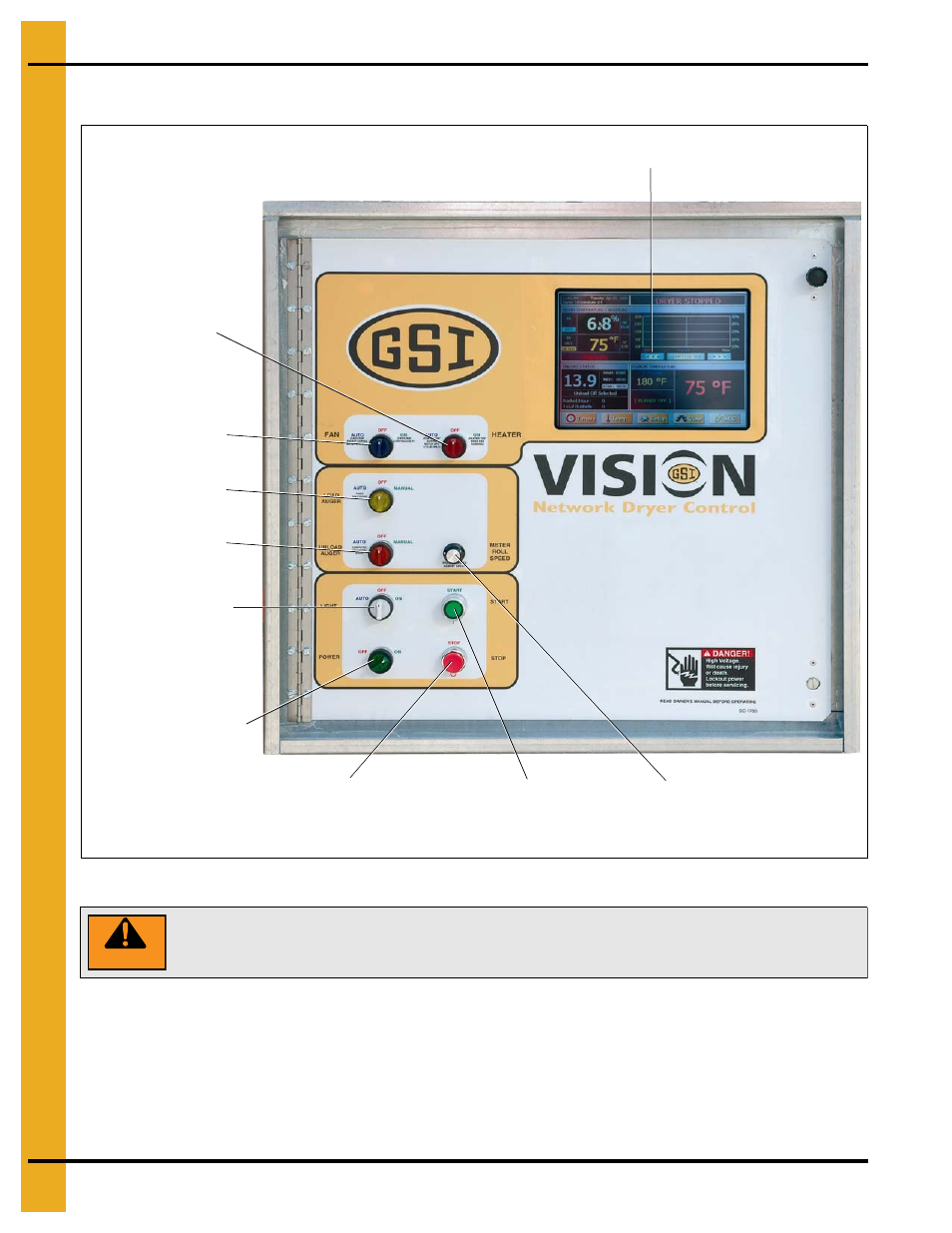

Figure 5A

Vision controls are used on several GSI drying products. It can operate any dryer in either a batch or a
continuous flow mode. All operating instructions for the T-Series dryer describes continuous flow
operation only.

Heater switch

Fan switch

Load auger switch

Unload auger switch

Operator light switch

Control power switch

Stop switch

Start switch

Meter roll speed

Touch screen

WARNING

Switches on the vision panel are for control purposes only. For servicing and
maintenance switch OFF and lock at the main disconnect.
