If Banks Six-Gun/EconoMind has
been previously installed, skip to
Section 2.
If installing Banks Six-Gun/
EconoMind for the first time,
proceed to step 1
1.
Disconnect the battery ground
cables from each of the batteries.
Secure the cables so that they do not
come in contact with the battery posts
during the installation.
2.
Remove the (+) battery cable from
the driver side battery.
3.
Remove the driver side plastic
battery cover, as shown in Figure 2.
This is accomplished by depressing a
tab at the front and rear of the cover.
Be careful not to damage the cover, as
it will be re-installed.
4.
Remove the driver side battery hold
down clamp (8mm socket). Remove
the driver side battery.
WARNING: When lifting a battery,
excessive pressure on the end
walls could cause acid to spew
through the vent caps, resulting
in personal injury. Lift with a
battery carrier or with hands
on opposite corners. Failure to
follow these instructions may
result in personal injury.
5.
Place the Six-Gun/EconoMind
Diesel Tuner in close proximity as
shown in Figure 3 for 2003-04 and
Figure 4 for 2005-07. The ‘In-cab
cable’ with the three small connectors
will be routed into the cabin via
the grommet on the firewall. The
MAP sensor harness with the two
connectors will be routed via the
firewall to its prospective location
listed in the following steps.
NotE: (the Six-Gun/EconoMind Diesel
tuner will be affixed to its permanent
location in step 20.)
6.
Locate the Powertrain control
Module (PcM) on the driver side of
the vehicle engine compartment (see
Figure 5).
Section 1
INSTALLATION OF WIRING HARNESS AND CONNECTIONS FOR
BANKS SIx-GUN/ECONOMIND DIESEL TUNER

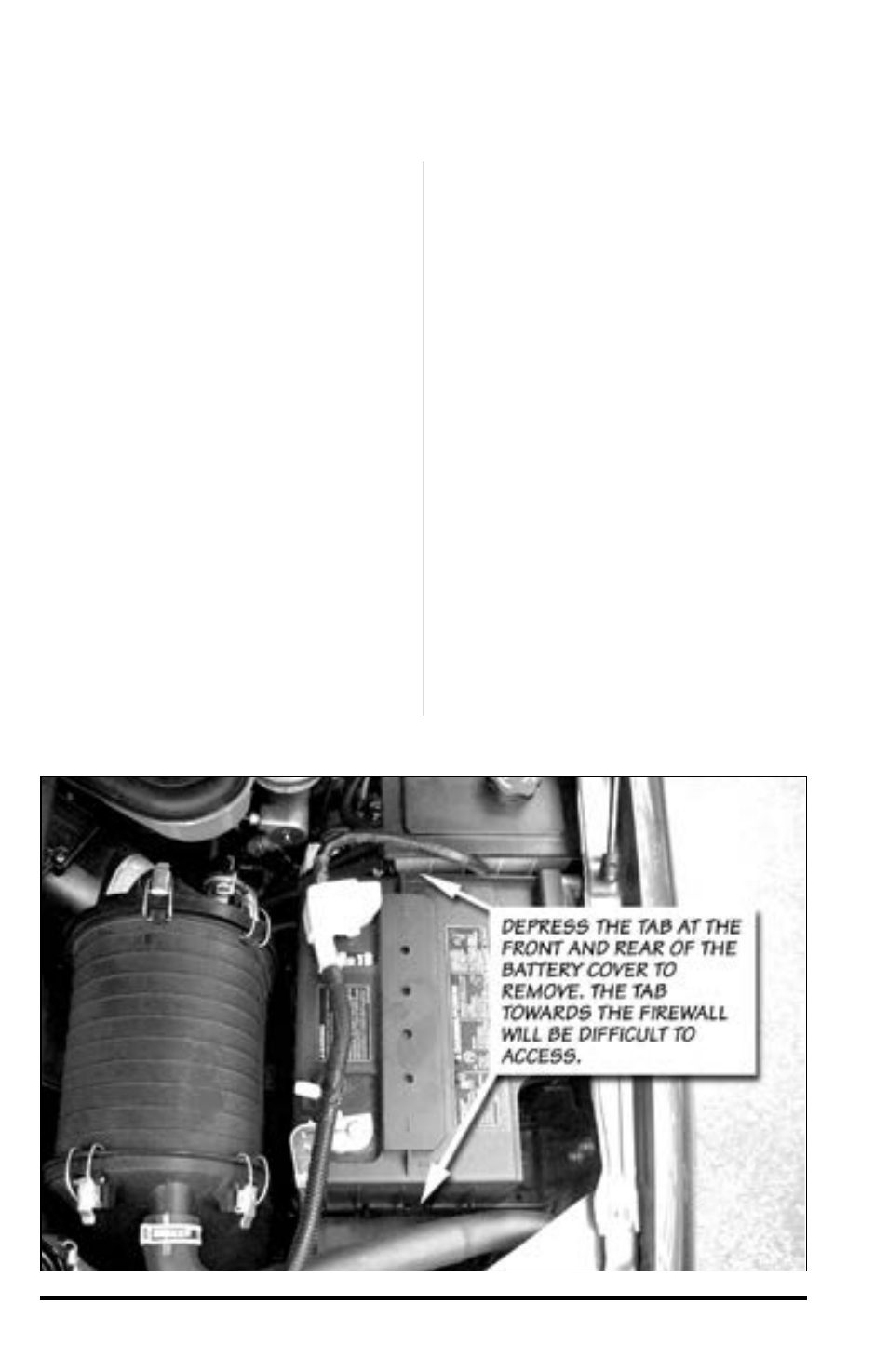

Figure 2: Removal of the battery box cover
