96825 v.6.0
11
7.
Disconnect the middle connector
from the PcM by opening the
overcenter retaining clamp as shown
in Figure 5. Route the disconnected
PCM connector to the Six-Gun/
EconoMind Diesel Tuner as directed
below:
2003-04 model year vehicles: Route
the previously disconnected middle
connector under the power steering
fluid reservoir towards the Six-Gun/
EconoMind Diesel Tuner.
2005-07 model year vehicles: Route
the previously disconnected middle
connector in the most direct path
towards the Six-Gun/EconoMind Diesel
Tuner.
8.
All Years: Plug the PcM connector
into the connector on the Six-Gun/
EconoMind Diesel Tuner labeled,
”VEHIcLE HARNESS”.
9.
Locate the supplied ‘crossover
Cable’ wiring harness in your Six-Gun/
EconoMind tuner kit.
10.
Plug the supplied ‘crossover
Cable’ wiring harness into the Six-Gun/
EconoMind Diesel Tuner connector
labeled, “BANKS HARNESS.”
For 2005-2007 Model vehicles: Slide
Six-Gun/EconoMind Shield onto
crossover cable.
NotE: Be sure that the seam on the
top of the shield is facing away from
the cabin (see Figure 6).
For all models, route the other end of
the ‘crossover cable’ to the vehicle’s
PcM middle connector labeled “c”.
Route the ‘crossover cable’ as
directed below:
2003-04 model year vehicles: Route
the ‘crossover cable’ under the power
steering fluid reservoir.
2005-07 model year vehicles: Route
the ‘crossover cable’ to the PcM in
the most direct path possible.
11.
All Years: Plug the ‘crossover
cable’ into the vehicle’s PcM middle
connector labeled “c”.

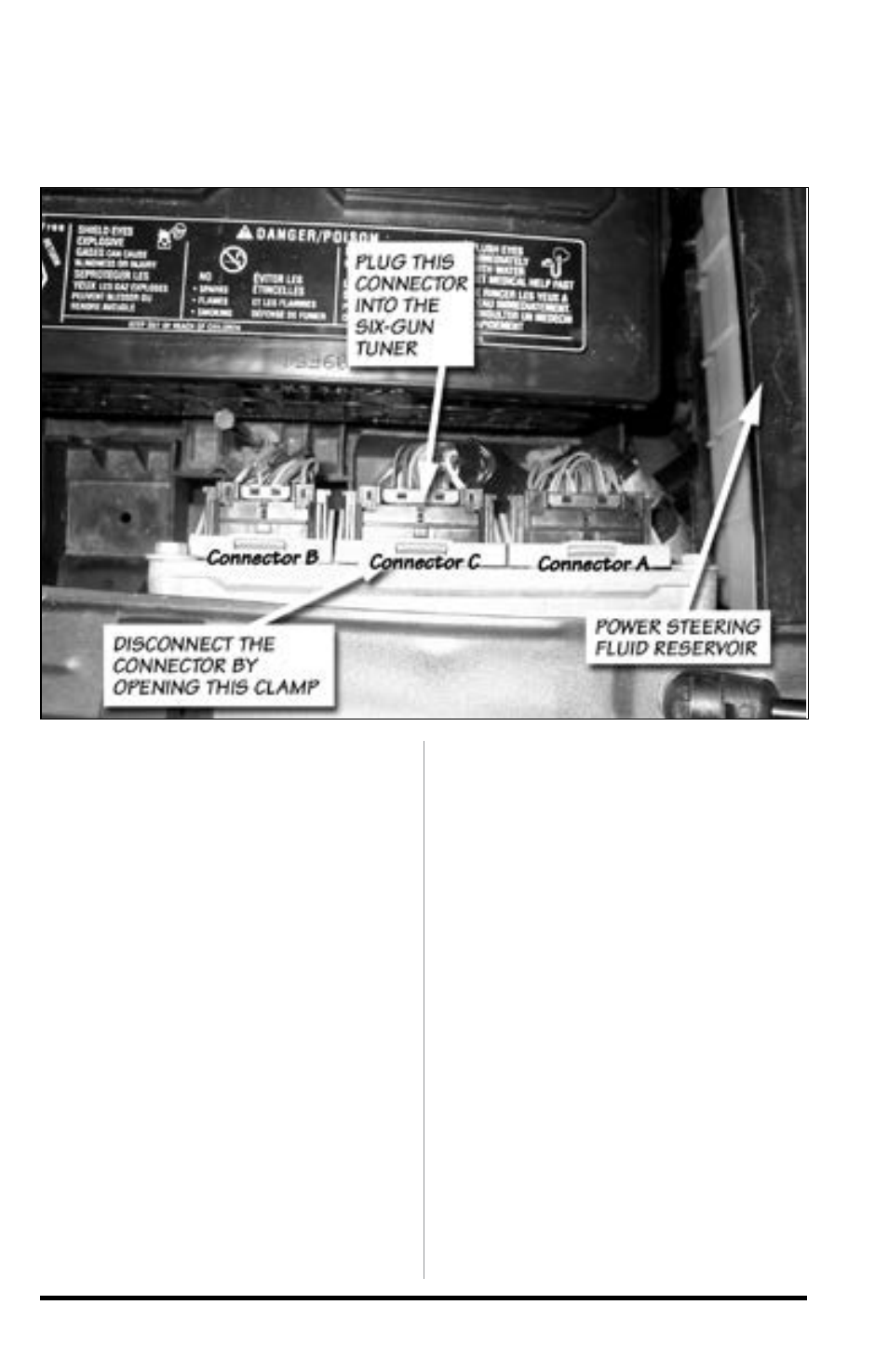

Figure 5: View of the PCM after the battery cover has been removed
