96825 v.6.0
29
If not installing the Optional
Thermocouple, skip to Section 5
1.
The thermocouple monitors
the temperature of the exhaust
gases entering the turbocharger
at the turbine housing. Installation
requires that the exhaust manifold
be drilled near the manifold outlet.
It is recommended that the manifold
be removed from the engine to
thoroughly clean out all metal chips
from drilling. All metal shavings must
be cleaned from the manifold to avoid
turbine wheel damage and possible
interference with the turbocharger’s
variable geometry turbine stage.
2.
Disconnect the Exhaust Back
Pressure Sensor tap located at the
front of the driver side manifold. The
pressure tap must be removed by
using a 9 ⁄
16
” open-end wrench to hold
the fitting stationary, and loosen the
tube using a 5 ⁄
8
” open-end wrench.
The fitting is shown in Figure 30.
NotE: Failure to hold the fitting
stationary will damage the tube upon
removal.
3.
Remove the driver side exhaust
manifold.
4.
Drill a 7 ⁄
16
” hole in the driver side
exhaust manifold at the location
shown in Figure 31.
5.
Tap the hole for a 1 ⁄
4
” NPT thread.
check the thread depth as you tap
by periodically removing the tap and
screwing the pipe coupling into the
tapped hole. The coupling should
thread in 3 to 3 1 ⁄
2
turns hand tight. Do
not install the probe in place at this
time.
CAUTION: Running the tap too
deeply can prevent the pipe
fitting from properly sealing.
6.
Remove the NPT fitting from the
thermocouple and install it on the
exhaust manifold. Use anti-seize
lubricant on the threads and torque to
14–16 lb-ft.
7.
Remove all metal chips from the
exhaust manifold.
NotE: Failure to remove all metal chips
could result in catastrophic damage
to the turbocharger’s turbine wheel
or interfere with the operation of the
variable geometry vane mechanism.
8.
Re-install the exhaust manifold.
Apply anti-seize lubricant to the
Section 4
OPTIONAL THERMOCOUPLE INSTALLATION
(REQUIRED FOR BANKS iQ)

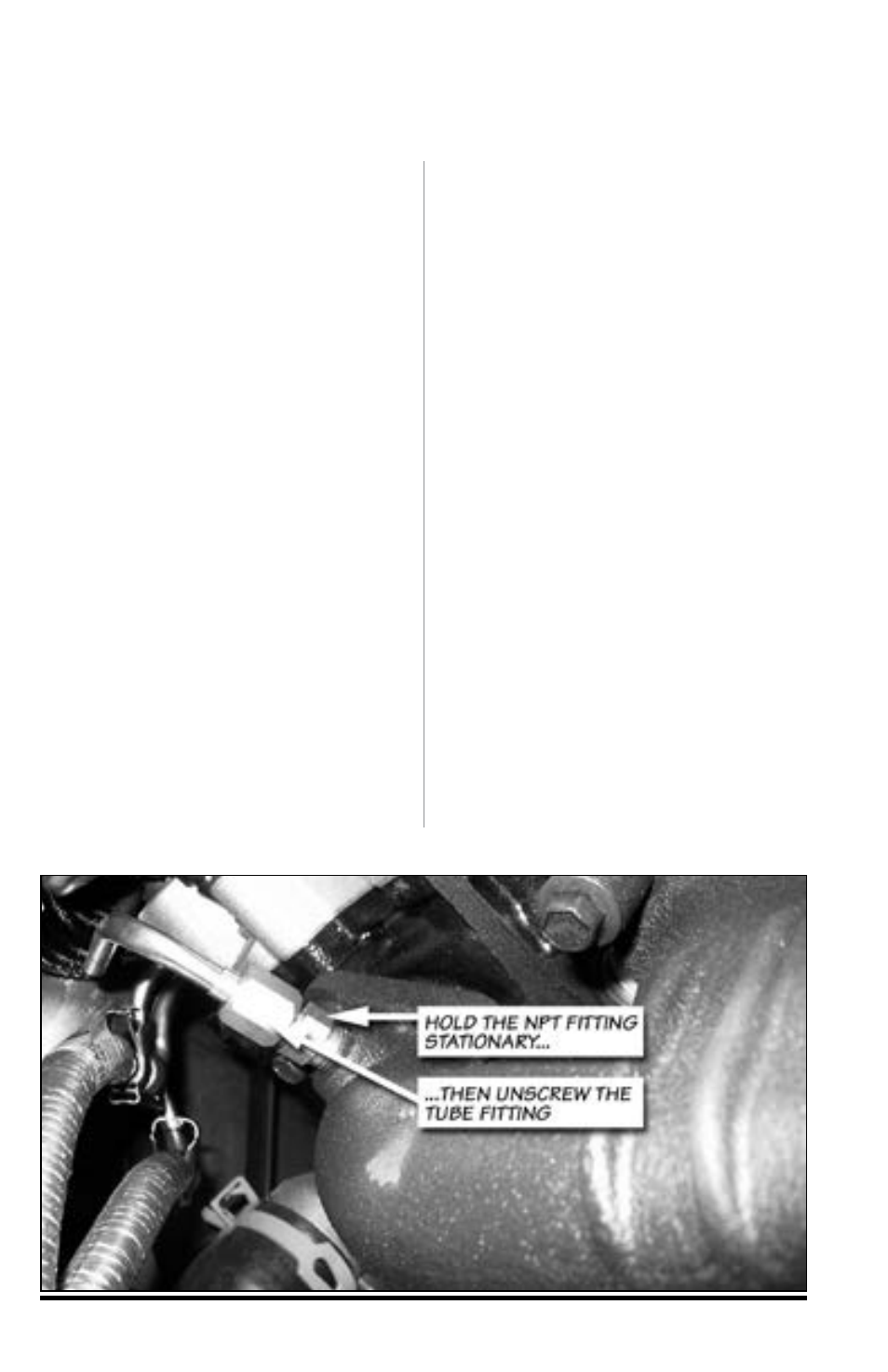

Figure 30: Location of the static exhaust pressure line tap
