96825 v.6.0
19

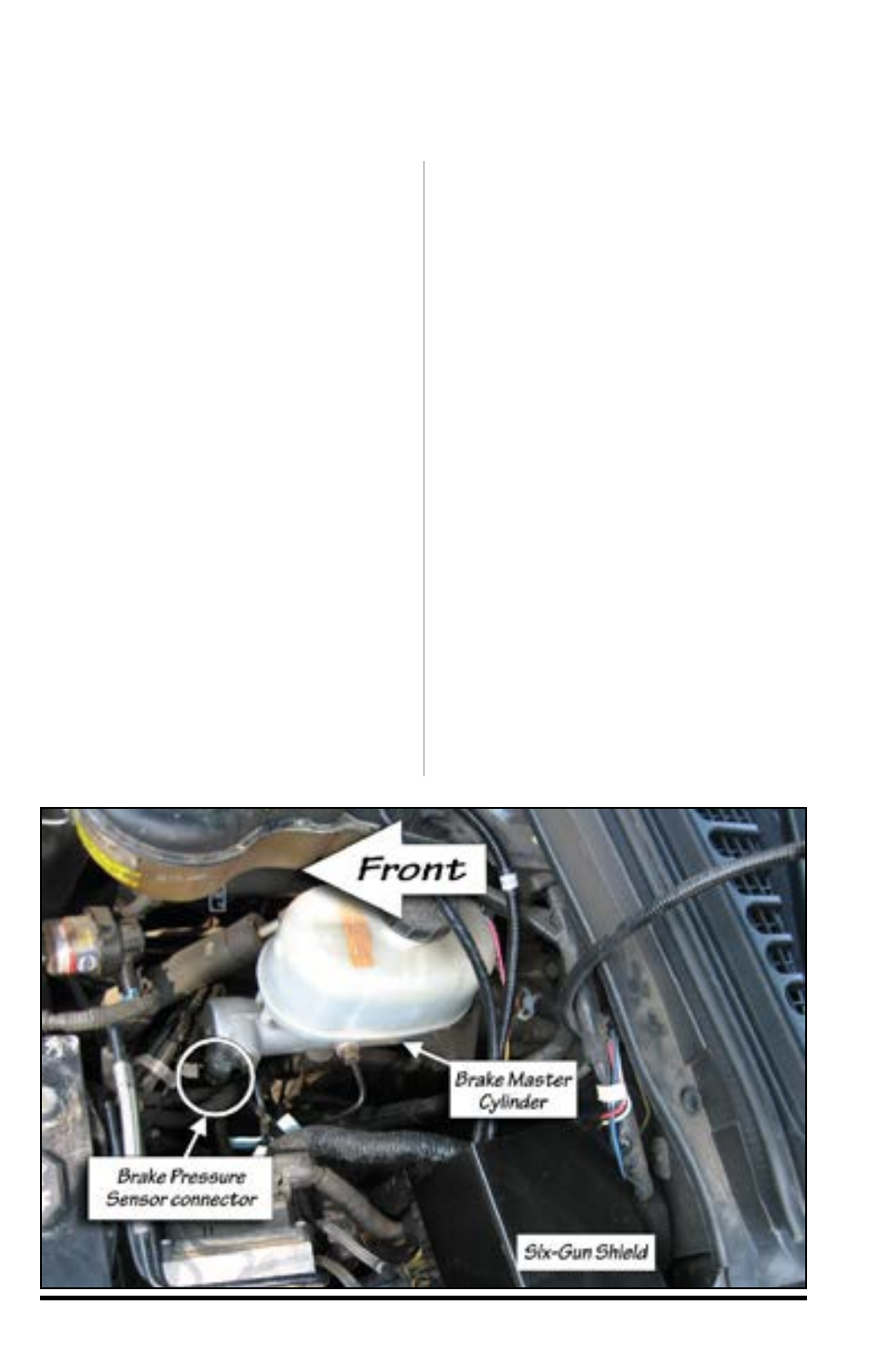

Figure 17 Brake Pressure Sensor
6.
Disconnecting the RJ12 cable.
A) For installed PowerPDA:
Disconnect RJ12 from docking station.
B) For installed Banks iQ: Disconnect
RJ12 from bridge module.
7.
Remove the OBD II interface cable
from the vehicle.
Installing Banks SpeedBrake Wire
Harness
8.
From inside the engine
compartment, locate the factory
brake pressure sensor connector on
the brake master cylinder. The brake
pressure sensor will be the connector
farthest away from the firewall. See
Figure 17. Disconnect the factory
brake pressure sensor connector.
9.
Locate the Brake Pressure Sensor
harness in your kit. connect the
female connector on the Brake
Pressure Sensor harness to the factory
male connector. connect the male
connector on the Brake Pressure
Sensor harness to the factory female
connector.
10.
Route the 2-pin connector on
the Brake Pressure Sensor harness
following the Six-Gun/EconoMind
in-cab cable through the fire wall.
Secure the wiring harness with the
supplied cable ties away from any heat
source or moving parts.
11.
From under the dash, pull the
2-pin connector on the Brake Pressure
Sensor harness through the fire wall.
12.
Locate the Banks SpeedBrake
Wire Harness and connect the 2-pin
male connector on the Brake Pressure
Sensor harness to the 2-pin connector
on the Banks SpeedBrake wire
harness.
13.
connect the Banks SpeedBrake
Wire Harness OBD II connector to the
vehicle’s OBD II connector. Use a cable
tie, as shown in Figure 18 to secure
the Banks SpeedBrake Wire Harness to
the vehicle’s OBD II connector.
14.
Locate the Fuse connector on the
Banks SpeedBrake Wire Harness and
connect it to the mini-fuse blade tap
location #22. Replace the fuse cover
and make sure not to pinch the Fuse
wire.
