If installing a Banks SpeedBrake
with a PowerPDA. Proceed to
step 7.
WARNING: Below 32
o F (0 o C) or
above 140 o F (60 o C), the Banks iQ
may be susceptible to damage
as a result of extended direct
exposure to sunlight, heat
or extreme cold. It is highly
recommended that the Banks iQ
be removed from its mounting
location if the vehicle will be
subjected to high concentrations
of sunlight, heat or cold for
an extended period of time.
Gale Banks Engineering is not
responsible for damage to Banks
iQ resulting from exposure
conditions.
CAUTION: Do not use force
when working on plastic parts.
Permanent damage to the part
might result.
1.
Locate the Window Mount
Assembly in your kit.
2.
Assemble the Banks iQ docking
station to the Universal mount by
inserting and sliding the Universal
mount tab into the docking station
groove. Hand tighten the nut behind
the docking station to hold the
docking station in place.
3.
Attach the window mount to your
Banks iQ. See Figure 24. Align and
place the two (2) lower tabs on the
window mount to the corresponding
slots on the bottom of Banks iQ first
then snap the top of Banks iQ into
place.
NotE: there may be a snug fit when
installing the Banks iQ into the
window mount. take care not to force
this process.
4.
Find a suitable place on the
windshield for ease of access and
viewing of Banks iQ. Use location
shown in Figure 25 as a reference
for mounting Banks iQ in your vehicle.
Loosen the knob and move the swivel
suction plate to achieve desired
viewing angle of the Banks iQ screen.
Do a test fit and note the angle
necessary to achieve the correct
viewing angle.
Section 3
MOUNTING AND CONNECTING THE BANKS iQ

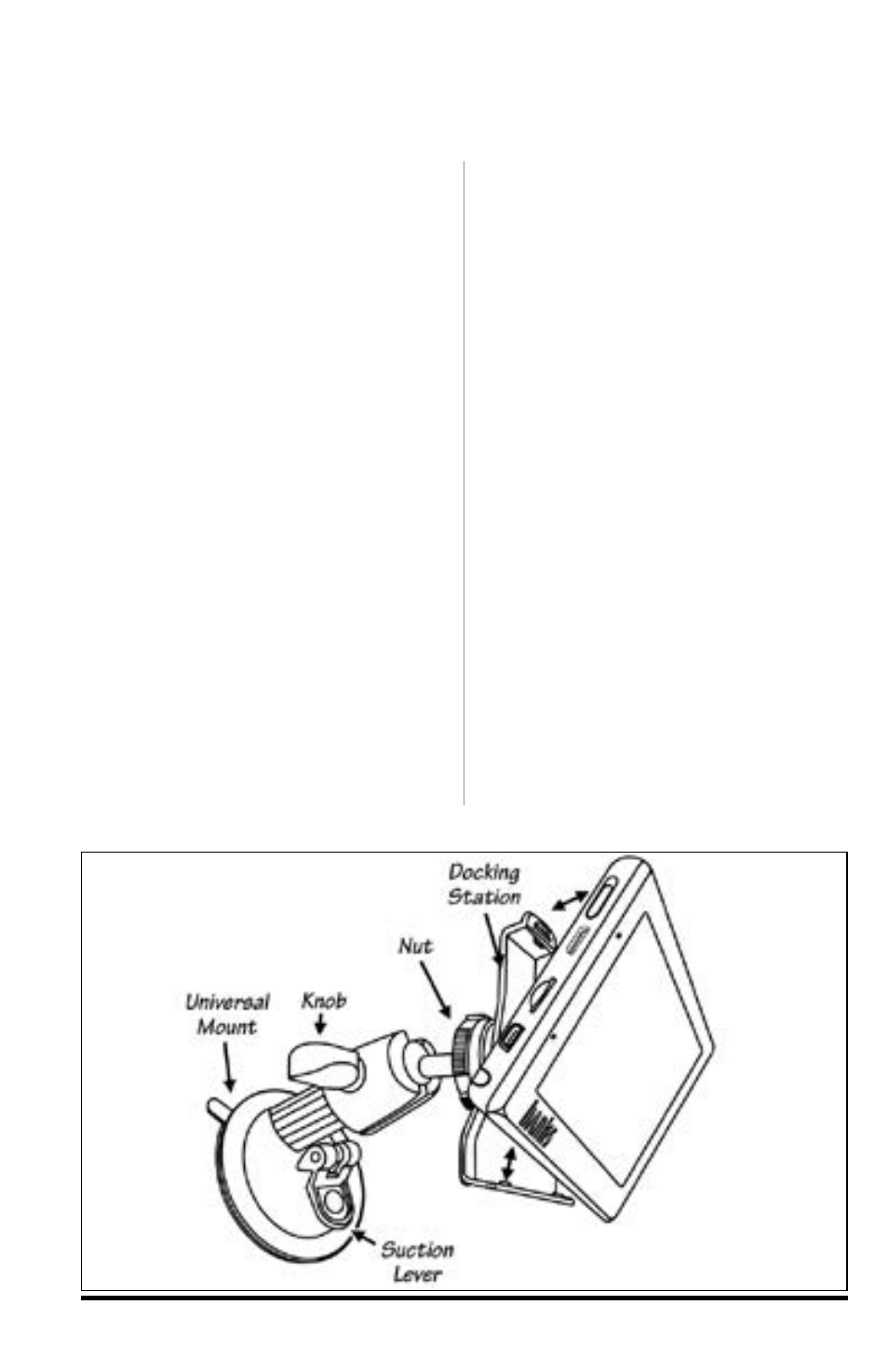

Figure 24 Attaching Banks iQ to window mount
