8.
Remove the nut and internal
tooth washer from the Power Level
Selector switch. Rotate the shaft
counter clockwise until the shaft
stops. Verify that the locating washer
tab is inserted into the #6 position on
the switch (see Figure 40) .
NOTE: If the washer is in any position
other than the #6, your EconoMind
Diesel Tuner will not select power
levels correctly.
9.
After confirming the locating
washer is in the #6 location, install
the switch through the 3 ⁄ 8 ” hole
on the backside of the bezel. The
alignment pin should rest in the 1 ⁄ 8 ”
hole and with the switch fully rotated
counter clockwise; the shaft’s flat
side should be facing the steering
column. Secure switch with internal
tooth washer and nut. Snug the nut.
Be careful not to over torque the nut
and damage the plastic threads.
10.
Install the knob onto the shaft
facing the #1 Level on the EconoMind
label. On the knob, snug the two (2)
set screws with the supplied 0.050”
hex key wrench.
11.
Reinstall the cluster bezel by
pressing on it to ensure all the clips
are engaged. Secure it with the
original a two (2) screws.
12.
Reconnect the electrical
connector to the headlamp switch
bezel. Reinstall this bezel by gently
pushing on it until all clips are
engaged.
13.
Reconnect the four (4) electrical
connections to the center bezel.
Reinstall this bezel by pushing on
it to engage all the clips. Open the
ashtray and cup holder and reinstall
the original screw.
14.
Route the Power Level Selector
switch wires down to the steering
column.
15.
Route the Power Level Selector
switch’s cable to the wire harness
that was routed into the passenger
compartment from the EconoMind
module, and plug the 2-pin connector
into the corresponding connector on
the EconoMind harness.
16.
Route all wiring away from any
pedals or other moving components.
Using the cable ties supplied, secure
the wiring under the dash.
-EnD, SECTIOn 7-

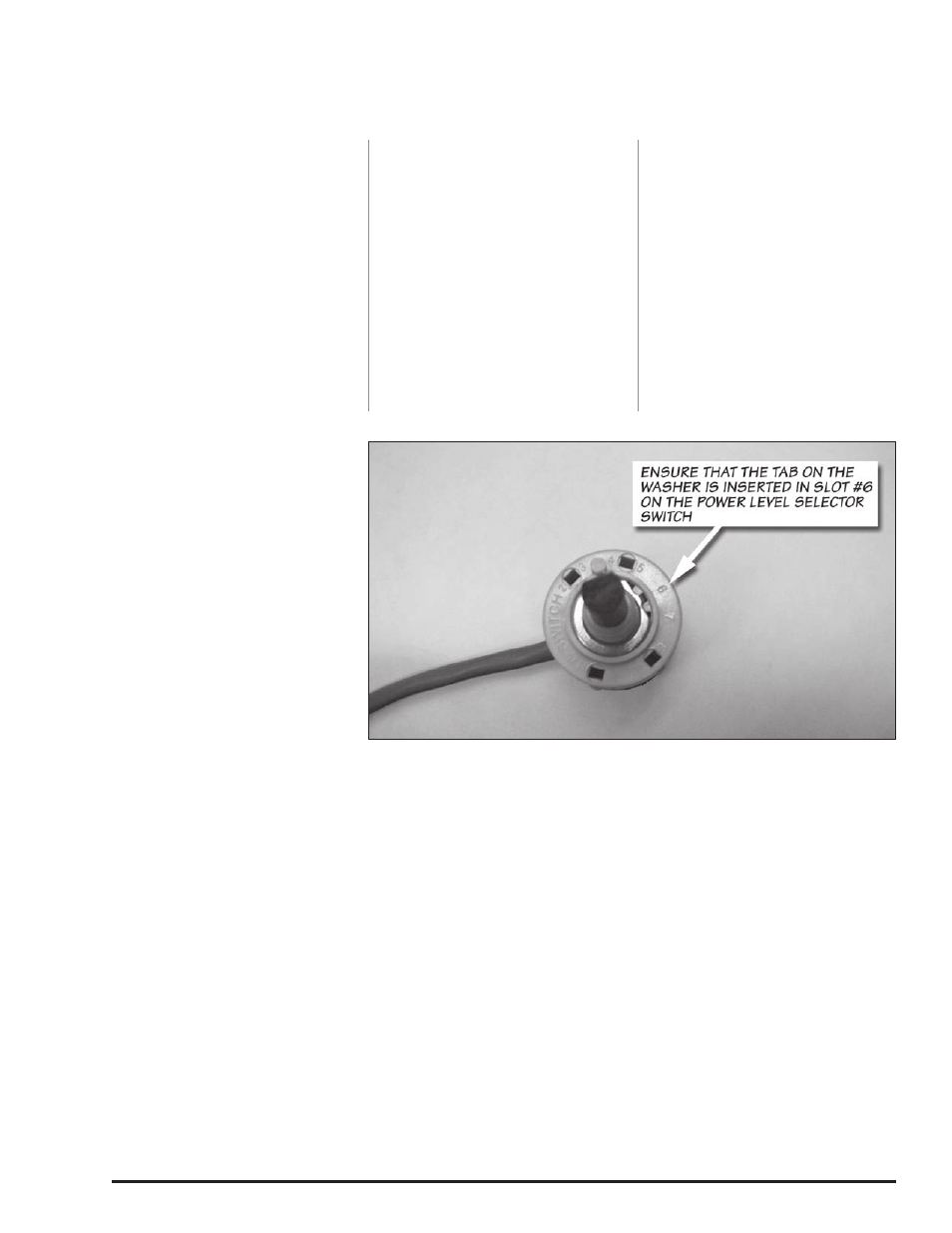

Figure 40 EconoMind switch, orientation of the tab on the washer
