CAuTIoN: Do not use force
when working on plastic parts.
Permanent damage to the part
might result.
1.
The Power Level Selector switch
will be installed on the drivers side of
the instrument panel (IP) next to the
steering column. See Figure 38.
2.
Remove the headlamp switch
bezel on the drivers side by gently
pulling on it. Disconnect the electrical
connector once the bezel is removed.
3.
To remove the center bezel, open
the ashtray and cup holder and
remove the retaining screw. Gently
pull on the center bezel to disengage
all the clips that attach the bezel
to the dash. Disconnect the four
(4) electrical connections after the
bezel is removed. Keep the screw for
reinstallation.
4.
Remove the cluster bezel by first
removing the two (2) screws at the
top. Gently pull on it and disengage
all the clips that attach the bezel
to the dash. Retain the screws for
reinstallation.
5.
cut out the supplied template (see
Figure 39) and align the template
onto the front of the cluster bezel
by placing its left edge against the
cluster rib, and its bottom edge
against the cluster bottom edge. Use
masking tape to securely hold down
the template. NOTE: Do not tape over
the markings on the template.
6.
Using a
3
⁄
8
” Uni-bit, center the
bit onto the
3
⁄
8
” drill location on the
template and slowly drill through the
IP. Using a
1
⁄
8
” drill bit, center and
drill through the
1
⁄
8
” location on the
template. Remove and discard the
template and any plastic shavings.
NOTE: It is important that the hole is
drilled at the recommended location.
The switch may not clear the
instrument panel structure if the hole
is shifted to another location.
7.
Align the label onto the previously
drilled hole. Make sure the entire
mounting surface is clean and free of
dirt and oil before mounting the label.
clean and dry as required using a
cloth dampened with rubbing alcohol
or similar cleaning solution.
CAuTIoN: Do not spray fluid
directly onto any electrical
equipment, or equipment damage
may result. Mount the EconoMind
Diesel Tuner switch label onto
the cluster bezel by peeling the
protective backing off the adhesive
tape on the back of the switch
label. Hold the label against the
panel for approximately 20 seconds
while applying pressure to allow the
adhesive to properly adhere to the
surface.
Section 7
PoWER SElECToR SWITCH INSTAllATIoN

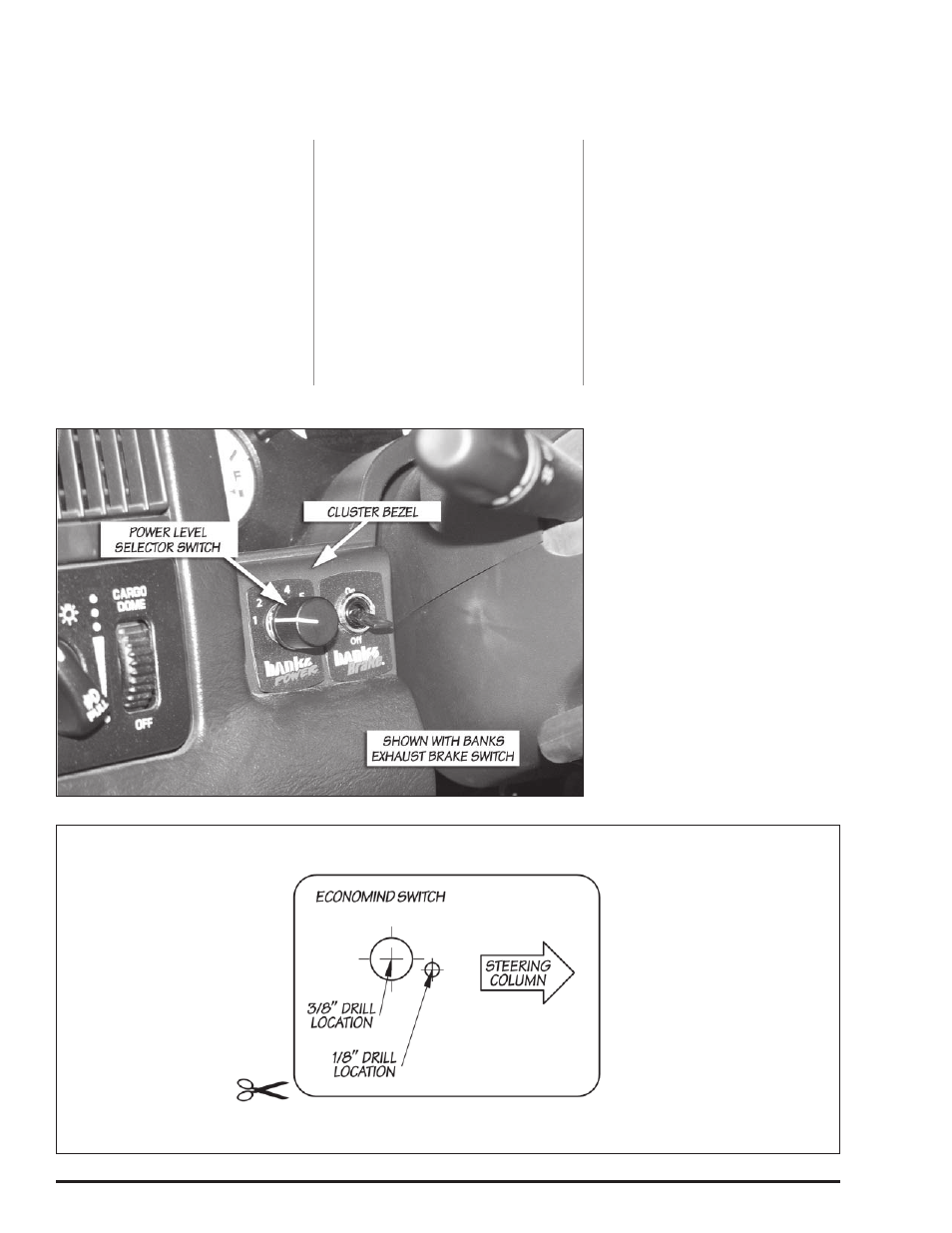

Figure 39 — Template
Figure 38
