Supertop NX Installation Instructions

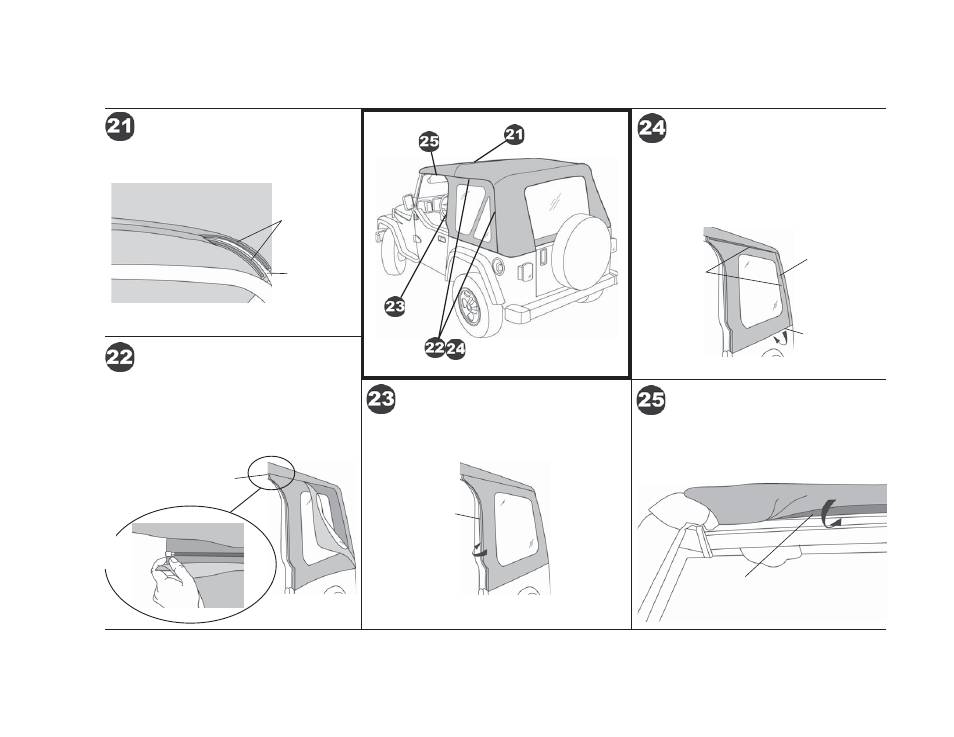

Locate the two plastic strips sewn to the sides of
the top, above each door. Slip the strips into the
channel in the Door Surround above the door open-
ing. It is easiest to insert the front plastic strip into
the channel fi rst.
Roll the plastic along the front of the Quarter
Panel into the channel of the Door Surround
on the vehicle.
Roll Plastic Strip into
channel in retainer
Secure Front of Quarter Panels
Roll Plastic Strips
into channel above
door opening
Secure Top above Door
Openings
Close the zippers on the Quarter Panels the rest of
the way to the lower rear corner of the panel.
Start at the rear and roll the plastic along the bottom
of the panel into the retainer on the vehicle. Then
fasten the hook and loop strips along the top and
rear of the panel to the top.
Roll Plastic Strip into
channel in retainer
Fasten Hook and
Loop Strips
Close Zipper
Secure Quarter Panels
Wrap the hook and loop fl ap inside the top around
the Center Bow and fasten it to itself.
View from inside vehicle
Sport Bar
Wrap fl ap around
bow and fasten
hook and loop
Center Bow
Locate the left and right Quarter Panels and orient
them with the zipper along the top and rear of the
panel. Start the zipper at the front top corner of
the Quarter Panel, next to the door. Hold the end
of the zipper and close the zipper slider 10" - 12"
along the top of the panel.
Detail of Quarter
Panel
Start zipper at front
and close 10" - 12"
Hold end of
zipper while
starting slider
Secure Center Bow
Attach Quarter Panel Zippers
