Rev. G 0412 54720 pg. 7
Supertop NX Installation Instructions

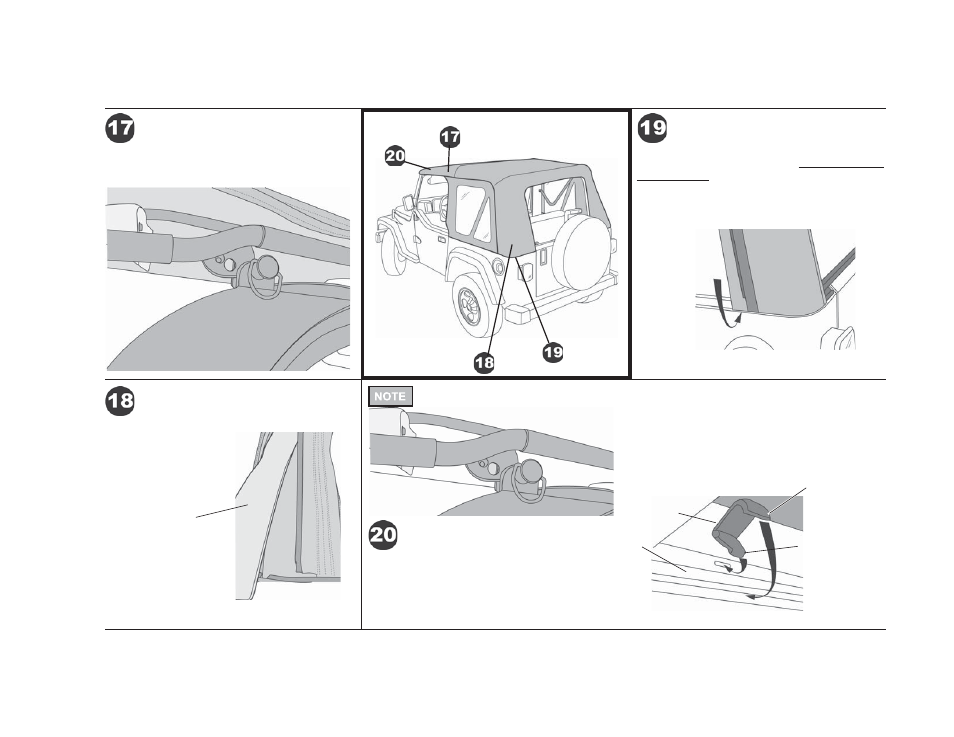

Clip the locking block on the Side Bow into the
rail on the Door Surround.
Sport Bar
Secure Side Bow to
Door Surround
Close the header latches to secure the front
of the top to the windshield. Catch the hook in
the slot in the windshield frame and then close
the lever over it so that it lays fl at against the
windshield frame.
Windshield
Frame
Windshield
Header Latch
Close lever over
top of hook to lay
fl ush with windshield
frame
Catch hook
in slot
Make sure that the Center Bow is centered in the
hook and loop fl ap inside the top. Do not fasten the
fl ap at this time.
Pull down gently on the Rear Bow and work the
plastic sewn to the rear corners of the top into the
retainer on the vehicle.
Pull down gently
on the Rear Bow
and slip plastic into
retainer
Secure Rear Corners
Secure Header to Windshield
Open the zipper inside
the rear corner of the
top and install a plastic
stiffener in the pocket.
Repeat this on both
sides of the vehicle.
Install Plastic Corner Stiffeners
Install Plastic
Stiffener in
Pocket
Sport Bar
Make sure the Side bow is latched to the
Door surround before you latch the header.
