Rev. G 0412 54720 pg. 6
Supertop NX Installation Instructions

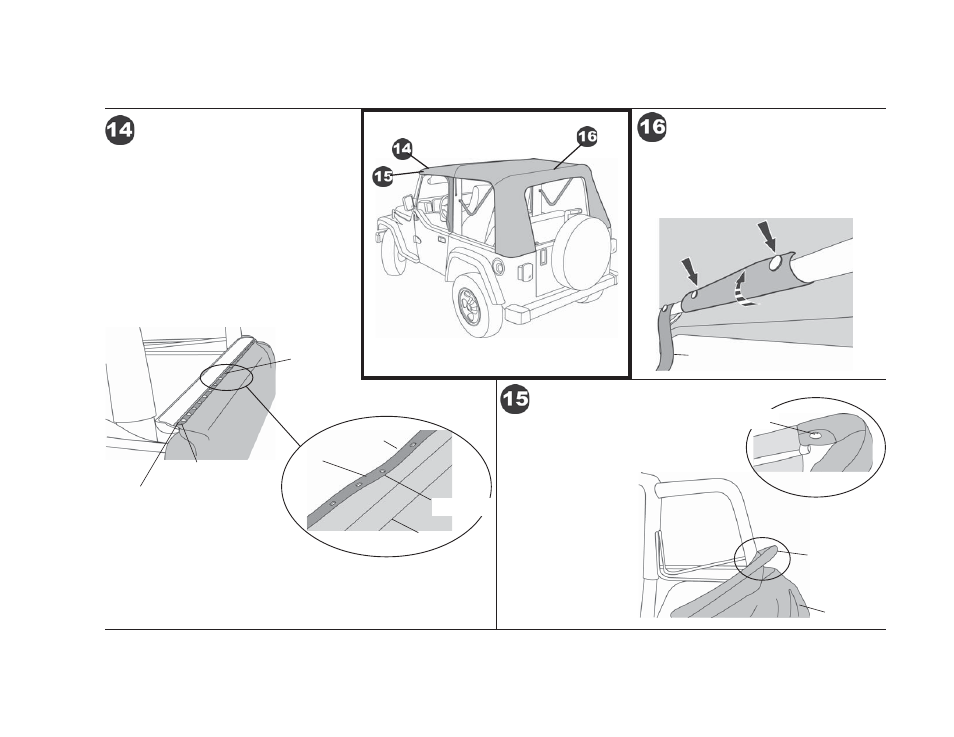

Flip the fabric over so that it wraps around
the header and drape the top fabric over
the tailgate. Raise the header slightly and
work the pockets in the
fabric over the corners
of the header. Install an
oval head screw in each
corner to secure the fabric
to the header.
Detail of Header
Work pockets over
corners of header
Install Screw to
secure fabric
Drape fabric
over tailgate
Install Corner Screws
Raise the header and bow assembly toward the
windshield and into position.
Inside the top, snap the fabric to the Rear Bow
(four snaps). Snap the Rear Window Roll-Up
Straps to the outer snap on the bow on each side.
Rear Opening
Snap Flaps to Rear Bow
Rear Bow
Rear Window
Roll-Up Strap
In order to install the top fabric, make sure that all
the Bows are in the folded down position on the rear
of the vehicle.
Lay the top fabric with the plastic strip facing up and
aligned with the front edge of the header. Locate the
round hole that marks the center of the plastic strip
(all other holes are slotted). Install a #8 x 1/2" Pan
Head Washer Screw in the round hole to secure
the fabric to the header as well as to center the top.
Then proceed to install screws in the remaining
seven holes along the front of the header.
Start with center
ROUND hole
Detail of Center
Screw Hole
Plastic Strip along
front edge of fabric
Start with center
ROUND hole
Align fabric
with header
Fabric
Plastic
Strip
Install Top Fabric on Header
