Supertop NX Installation Instructions

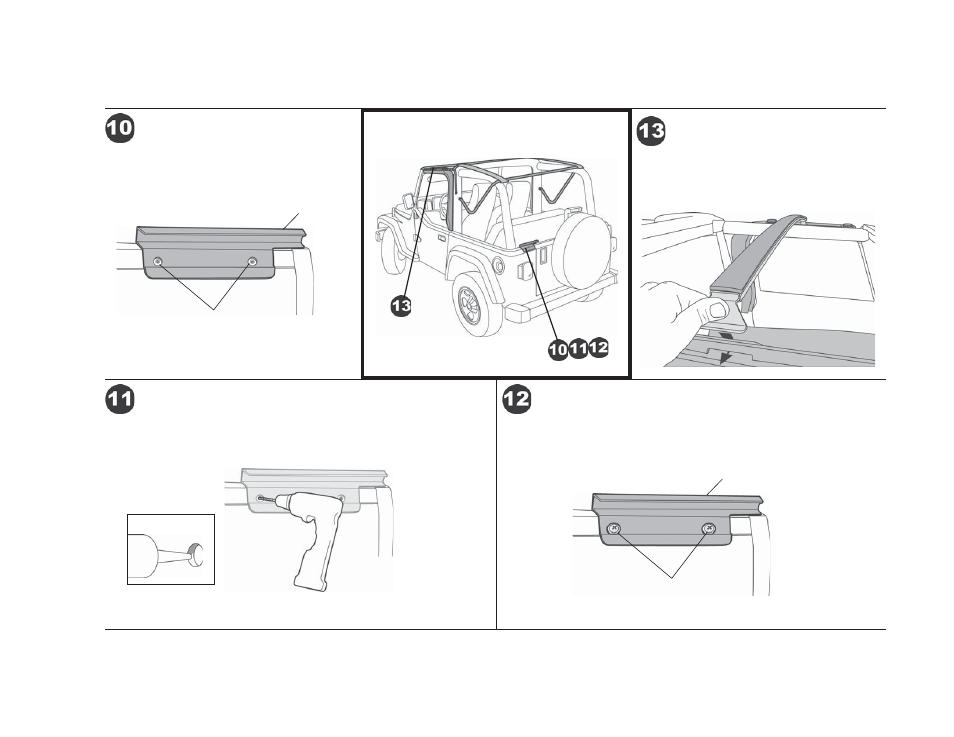

Orient Tailgate Mounts
Locate the left and right Tailgate Mounts. Place the
holes in the mounts over the dimples in the vehicle
body. Mark the hole locations.
Place holes in Tailgate
Mount over dimples
in body
Driver’s Side
Left Tailgate
Mount
Drill a 1/8” hole at the marked locations. Deburr the holes and seal the edges
of the holes with Silicone Sealant.
Driver’s Side
Drill Holes Install Tailgate Mounts
Install the Tailgate Mounts with two #8 x 1/2” Pan Head Washer Screws for
each mount.
Driver’s Side
Left Tailgate
Mount
#8 x 1/2” Pan Head
Washer Screws
Insert one end of the top arch in to the slot in the
middle of one of the Door Surrounds. Push the
other end inward to flex the bow and insert it into
the slot on the other side of the vehicle.
Install Top Arch
