Trektop NX Installation Instructions

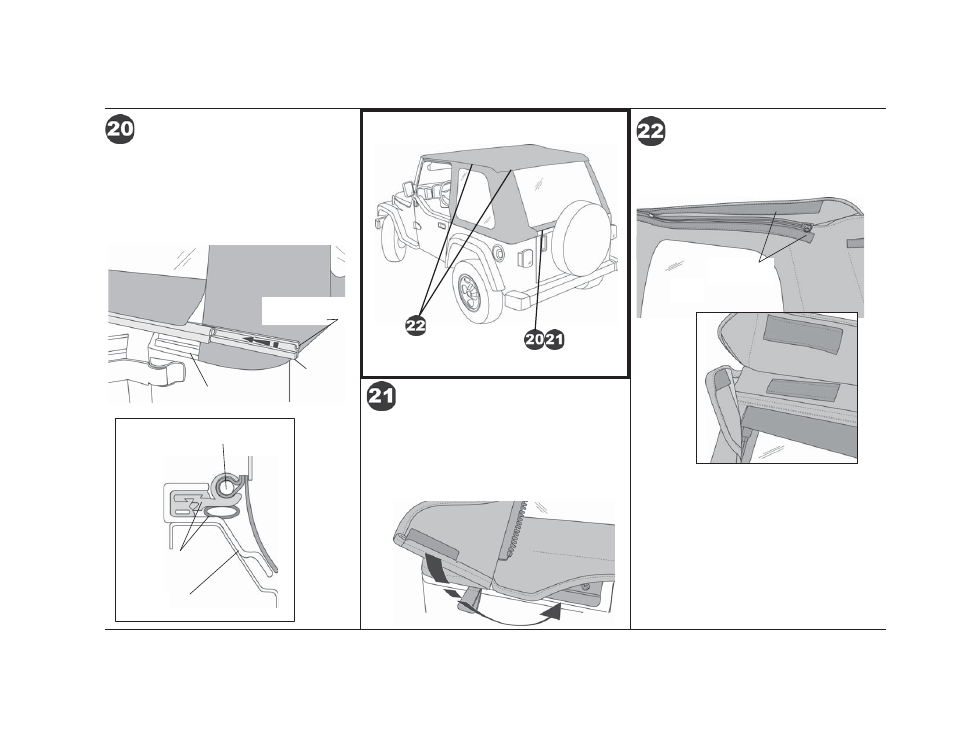

Open the tailgate. Orient the Tailgate Bar with the
rubber bulb facing down, in order to form a seal
with the top of the tailgate. Slide the groove in the
Tailgate Bar onto the tube inside the bottom of the
Rear Window. Roll the Tailgate Bar into the top of the
Tailgate Mounts.
Close the Rear Window zippers.
Install Tailgate Bar
Rear Corner
Retainer
Tube on inside of
Rear Window
Rear Window Retainer -
Oriented with Rubber
Bulb Down
Tailgate
Bar
Rear Window
Open
Tailgate
Slide groove in Tailgate
Bar onto tube on inside
of Rear Window
Tailgate Mount Secure Rear Window to
Tailgate Mounts
Slip the plastic strips along the bottom of the Rear
Window into the channel in the Tailgate Mounts on
each side of the tailgate.
Wrap the Quarter Windows over the Rear Window
and slip the plastic strips on each Quarter Window into
the channel in the Tailgate Mounts on each side of the
tailgate.
Fasten the loop strip sewn inside the Top to the
hook strip along the top of the Quarter Window
on each side of the vehicle.
Secure Top Fabric to
Quarter Windows
Fasten Hook
and Loop
Quarter
Window
Rear Window
