Trektop NX Installation Instructions
Slip the plastic strip on the front of a Quarter
Window into the channel in the Door Surround.
Repeat with both Quarter Windows.
Secure Quarter Windows to
Door Surrounds
Close the zippers along the top of each Quarter
Window.
Close Upper Zipper on Quarter
Windows
Quarter
Window
Close
Zipper
Slip Plastic Strip
into Channel
Quarter
Window
Slip the plastic strip along the bottom of the Quarter
Windows into the channel in the belt rail on each
side of the vehicle.
Secure Quarter Windows to
Belt Rails
Push Plastic Reinforcement down to
make it easier to close zipper.
Separate the protective fl ap covering the hook strip
on the side of the Deck. Open the fl ap toward the
inside of the vehicle.
Start the zipper along the top of the Quarter
Window with the zipper in the Top. Only close
the zipper 1-2". Repeat with the rear zipper and
the zipper on the Rear Window. Repeat with both
Quarter Windows.

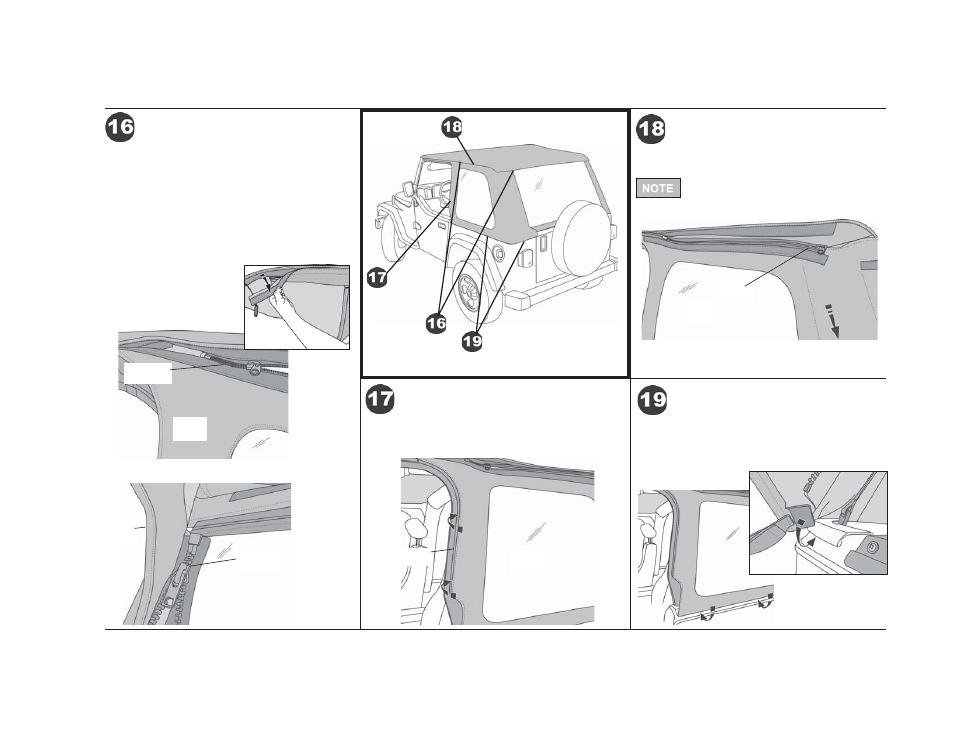

Install Quarter Windows
Quarter
Window
Start Zipper
1-2"
Rear Window
Start Zipper
1-2"
Quarter
Window
Driver’s Side Shown
