Rev. H 0113 56820 pg. 3
Trektop NX Installation Instructions

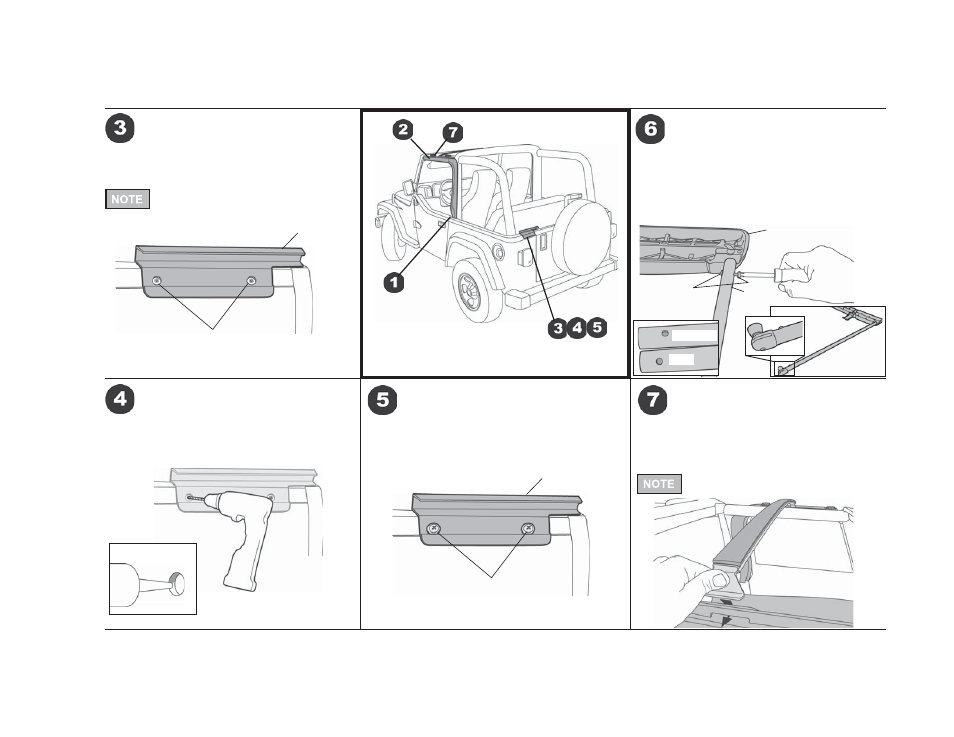

Orient Tailgate Mounts
Locate the left and right Tailgate Mounts. Place the
holes in the mounts over the dimples in the vehicle
body. Mark the hole locations.
Place holes in Tailgate
Mount over dimples
in body
Driver’s Side
Drill a 1/8" hole at the marked locations. Deburr the
holes and seal the edges of the holes with Silicone
Sealant.
Driver’s Side
Left Tailgate
Mount
Drill Holes Install Tailgate Mounts
Install the Tailgate Mounts with two #8 x 1/2" Pan
Head Washer Screws for each mount.
Driver’s Side
Left Tailgate
Mount
#8 x 1/2" Pan Head
Washer Screws
Assemble Side Bows to Header
Lay the Header upside down. Match the holes in
the Side Bows with the holes in the Header. Orient
the so the knobs point inward. Slide the Bows over
the pins on each side of the Header. Use two (2)
#12 x 3/8" Pan Head Zinc Screws to secure each
Side Bow to the Header.
Driver
Side Bow
Header
#12 x 3/8" Pan
Head Zinc
Screws (2)
Driver
Passenger
Insert one end of the top arch in to the slot in the
middle of one of the Door Surrounds. Push the
other end inward to flex the bow and insert it into
the slot on the other side of the vehicle.
Install Top Arch
If you already have holes that line up,
skip to Step 5.
Shown Upside
Down
Remove adhesive paper from Top Arch
before installing.
