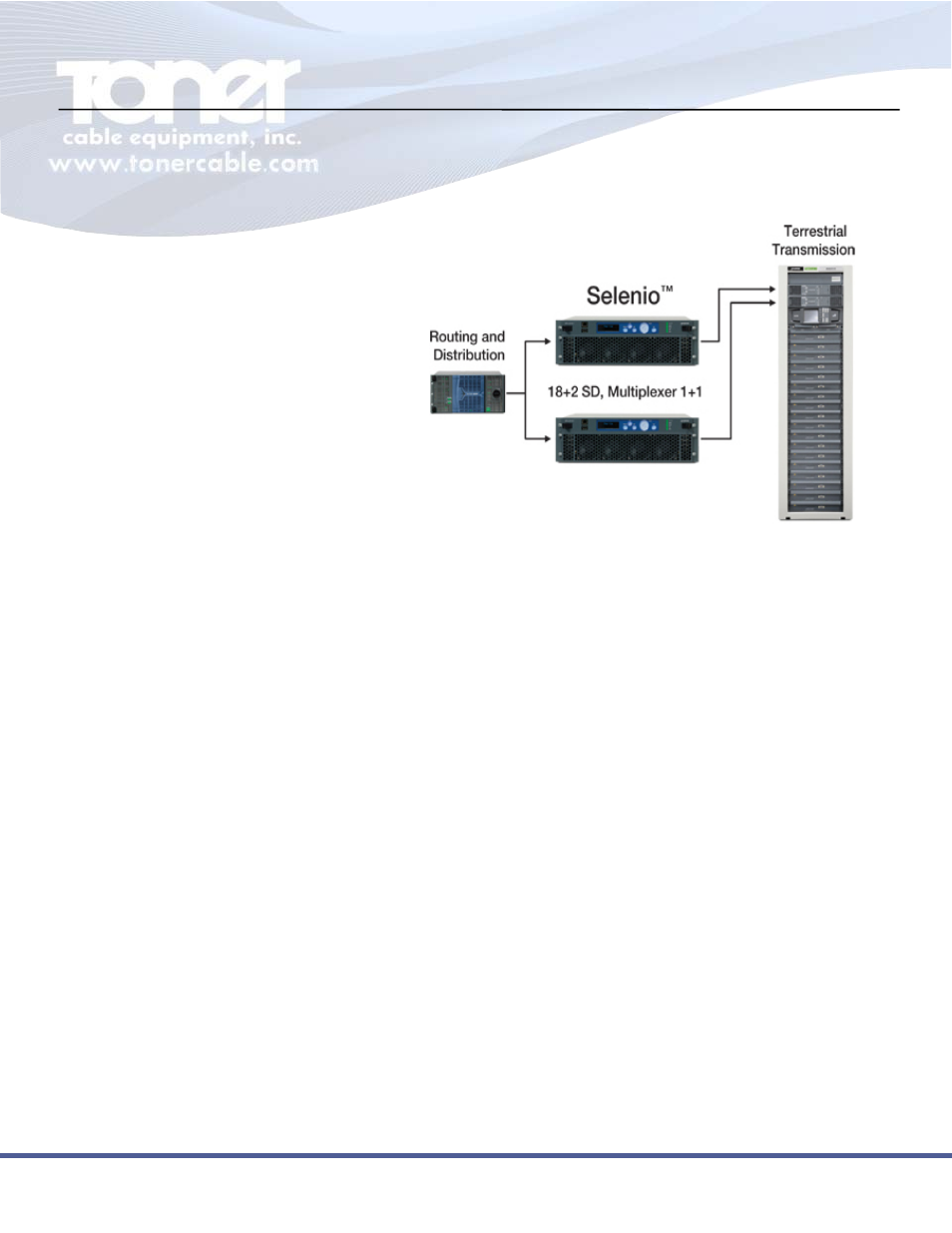

Genlock Reference
There are three means of utilizing the external reference:
1. Main and back-up color black (blackburst)
or TLS (Tri-Level Sync) references
2. Color black (blackburst) or TLS and DARS
(Digital Audio Reference Signal) for AES-11
compliance configurations
3. Two different reference signals – e.g., color
black NTSC and (black burst) PAL – can be
applied to the frame, and each module capable
of locking to an external reference can be
chosen to lock to either reference
Application modules with a frame synchronizer function have an analog reference connection to the two
external reference inputs. Neither of these analog reference connections is broken if the controller
module must be removed for servicing.
Application modules that require a digital reference — such as the encoder, decoder or
multiplexer/demultplexer — have a digital reference connection to each of the two controller modules.
Intuitive Web-based GUI
Featuring a built-in, browser-based management system (no software required) that incorporates support
for rich interactive features through Microsoft® Silverlight®, Selenio provides a graphically rich interface
that enables operators to get the most functionality from the new platform — without being buried under
an avalanche of manuals and bespoke commands.
Operators can access the platform from their web browser and, using graphical block diagrams for each
particular module, can easily step through the configuration process — significantly reducing the chance
of error.
HD-BNC Connectors
Selenio application modules utilize high-density HD-BNC connectors for video and audio connectivity.
The HD-BNC offers the same strength and is the same bayonet-locking connector as standard BNC
connectors.
HD-BNC connectors meet all SMPTE 292M and SMPTE 424M return loss specifications — and exceeds
them at 3 Gb/s. For high-density applications, a cable insertion/extraction tool is available, which is as
simple to use as the standard BNC tool
