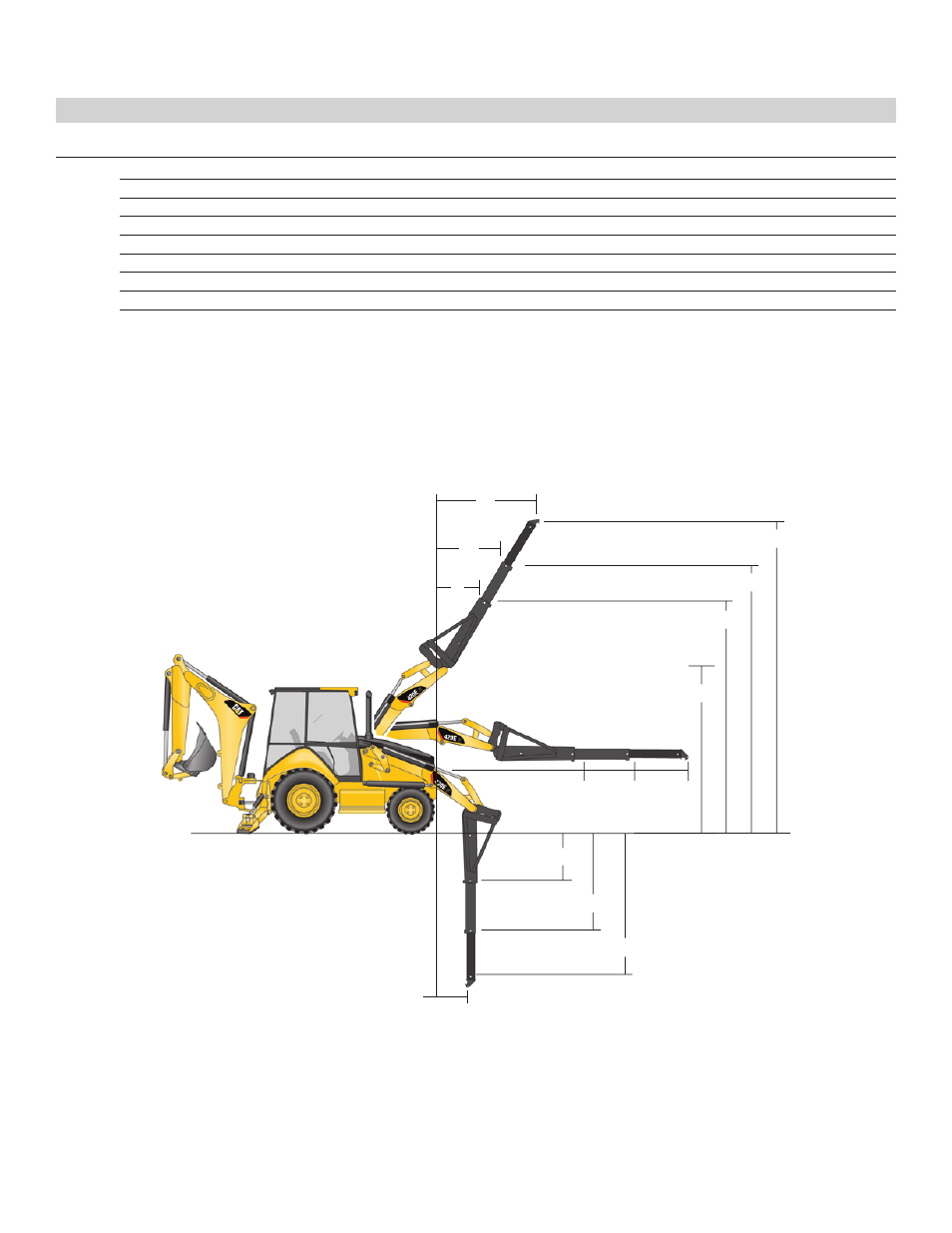

Dimensions/Material Handling Arm
Material Handling Arm Position Retracted Mid-Position Extended
Operating load (SAE J1197 and CEN 474-4) *† 933 kg 2,057 lb 590 kg 1,301 lb 431 kg 950 lb
Overall length, maximum 8809 mm 28 ft 11 in 9807 mm 32 ft 2 in 10 807 mm 35 ft 5 in
(1) Reach at maximum depth (from machine nose) 585 mm 1 ft 11 in 585 mm 1 ft 11 in 585 mm 1 ft 11 in
(2, 3, 4) Maximum depth 1998 mm 6 ft 7 in 2996 mm 9 ft 10 in 3996 mm 13 ft 1 in
(5, 6, 7) Maximum reach (from machine nose) † 3147 mm 10 ft 4 in 4145 mm 13 ft 7 in 5145 mm 16 ft 11 in
(8) Height at maximum reach 1549 mm 5 ft 1 in 1549 mm 5 ft 1 in 1549 mm 5 ft 1 in
(9, 10, 11) Reach at maximum height (from machine nose) † 1462 mm 4 ft 10 in 2000 mm 6 ft 7 in 2541 mm 8 ft 4 in
(12, 13, 14) Maximum height 5051 mm 16 ft 7 in 5892 mm 19 ft 4 in 6733 mm 22 ft 1 in
* Hydraulically limited.
†
Measured from nose of machine.
Dimensions and performance specifi cations shown are for machines equipped with 12.5/80-18 SGL front tires, 19.5L-24 IT525 rear tires, ROPS canopy, standard stick with
610 mm (24 inch) standard duty bucket, and 0.96 m³ (1.25 yd³) loader bucket and standard equipment unless otherwise specified.
1
2
5 6 7
8
12
13
14
9
10
11
3
4
