Supplied Spanner
Installation Complete
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 07.05.12 ©

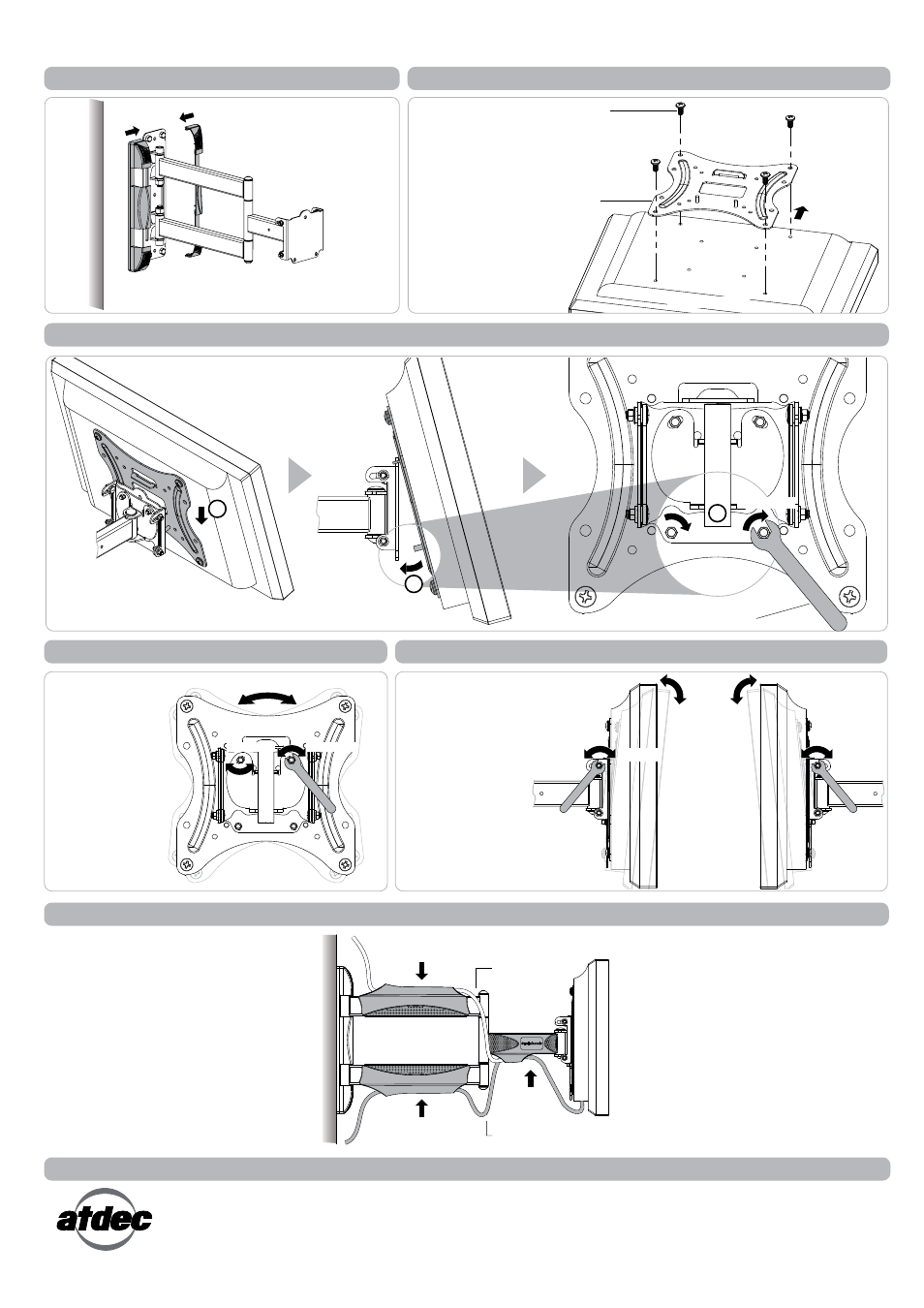

Step 4. Attach Wall Mount Covers Step 5. Attach Screen Mount to Display
TOP OF
DISPLAY
The screen mount supports VESA
mounting hole configurations
100x100mm, 100x200mm and
200x200mm.
WALL
Mounting Screw
Screen Mount
Back of Display
Step 6. Attach Display to the Arm
Step 7. Horizontal Adjustment
Step 9. Cable Management
1. Hook Screen Mount to the Arm.
2. Push bottom of Display to insert studs to the slots.
3. Replace Screw Nuts and tighten to secure.
1
2
3
TIGHTEN LOOSEN
±3°
LOOSEN TIGHTEN
0 - 10°
OPTION 1
OPTION 2
TIGHTEN
Loosen both nuts to
adjust horizontal tilt.
When the desired
viewing angle has
been achieved,
re-tighten both nuts
to secure.
Re-attach Cable Management Clips, by pushing
over arm section.
Ensure sufficient slack is left around joints.
Loosen each nut on
both the left and
right sides of the
head to adjust the
vertical tilt. When the
desired viewing
angle has been
achieved, re-tighten
both nuts to secure.
Step 8. Vertical Adjustment
PUSH
PUSH
PUSH
left view right view
