Component Checklist
Coach Screw (x4) Nylon Anchor (x4)
M6x16mm/25mm
M8x16mm/25mm
Installation Instructions TH-1040-VFL
Small-Medium TV Articulated Arm
IMPORTANT INFORMATION:
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
! IMPORTANT - Install Telehook 1040 Small-Medium TV Articulated Arm per Installation Instructions.
! This product supports a maximum load of 27kg (60lbs).
! This product supports VESA mounting hole configurations: 100x100mm, 100x200mm, and 200x200mm.
! The manufacturer accepts no responsibility for incorrect installation.
Display Mounting
Screws (x4 each)
Hardware
Tools Required:
Power drill •
4.5mm (0.18”) drill bit •
10mm (0.39”) masonry drill bit •
12mm (0.47”) socket wrench or shifter •

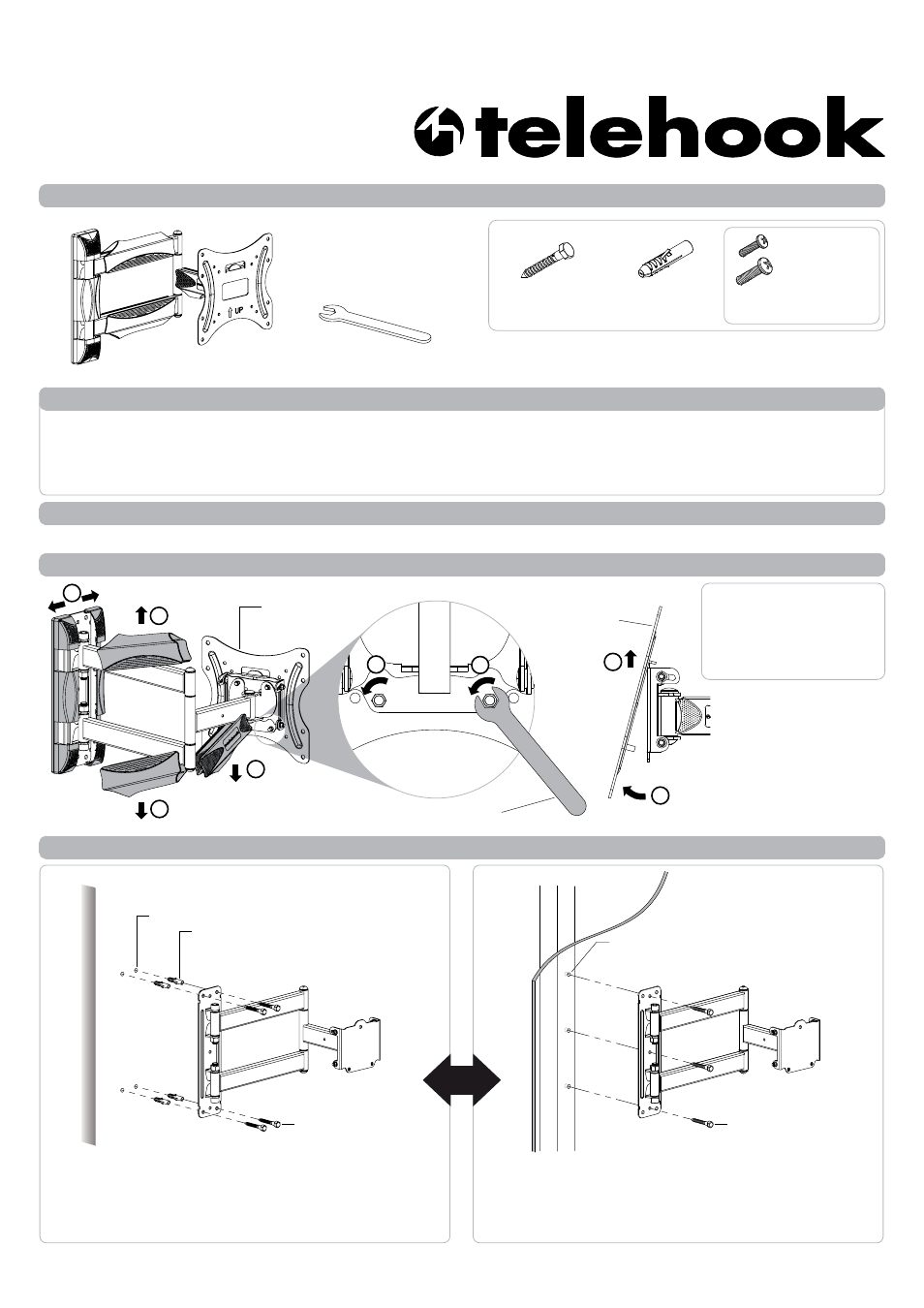

Step 2. Remove Screen Mount, Cable Clips, and Wall Mount Covers.
Step 3. Install Arm/Wall Mount to the Wall
Arm/Wall Mount 10mm Spanner
Timber Stud Wall Masonry Wall
- Drill three 10mm (0.39”) diameter holes, 80mm (3.15”) deep.
- Secure the mounting plate to the wall using the Coach
Screws and Nylon Anchors supplied.
- Drill three 4.5mm (0.18”) diameter holes, 80mm (3.15”) deep.
- Secure the mounting plate to the wall using the Coach
Screws supplied.
NOTE: Use a stud finder to accurately locate the centre
of the stud. Ensure that all screws fixed securely into stud.
OR
Coach Screw
Nylon Anchor
Drilled Hole
Coach Screw
Drilled Hole
WALL WALL
1 1
2
3
4
4
4
5 1. Remove screw nuts using
the supplied spannner.
2. Push away Screen Mount.
3. Lift Screen Mount to remove.
4. Remove Cable Clips.
5. Remove Wall Mount Covers.
Supplied Spanner
Screen Mount
Screen Mount
