Atdec Telehook TH-EMC Installation manual - Manual

To Motor
Wired
Remote Control
To Mains
Transformer
Component Checklist
Column
Mounting
Bracket (x2)
Extension
Bracket (x4)
Frame
Transformer Wired Remote
Control
Column M8x25
Screw (x4)
LOCKED
Allen Key
Short Cable
Cover (x2)
Long Cable
Cover (x4)

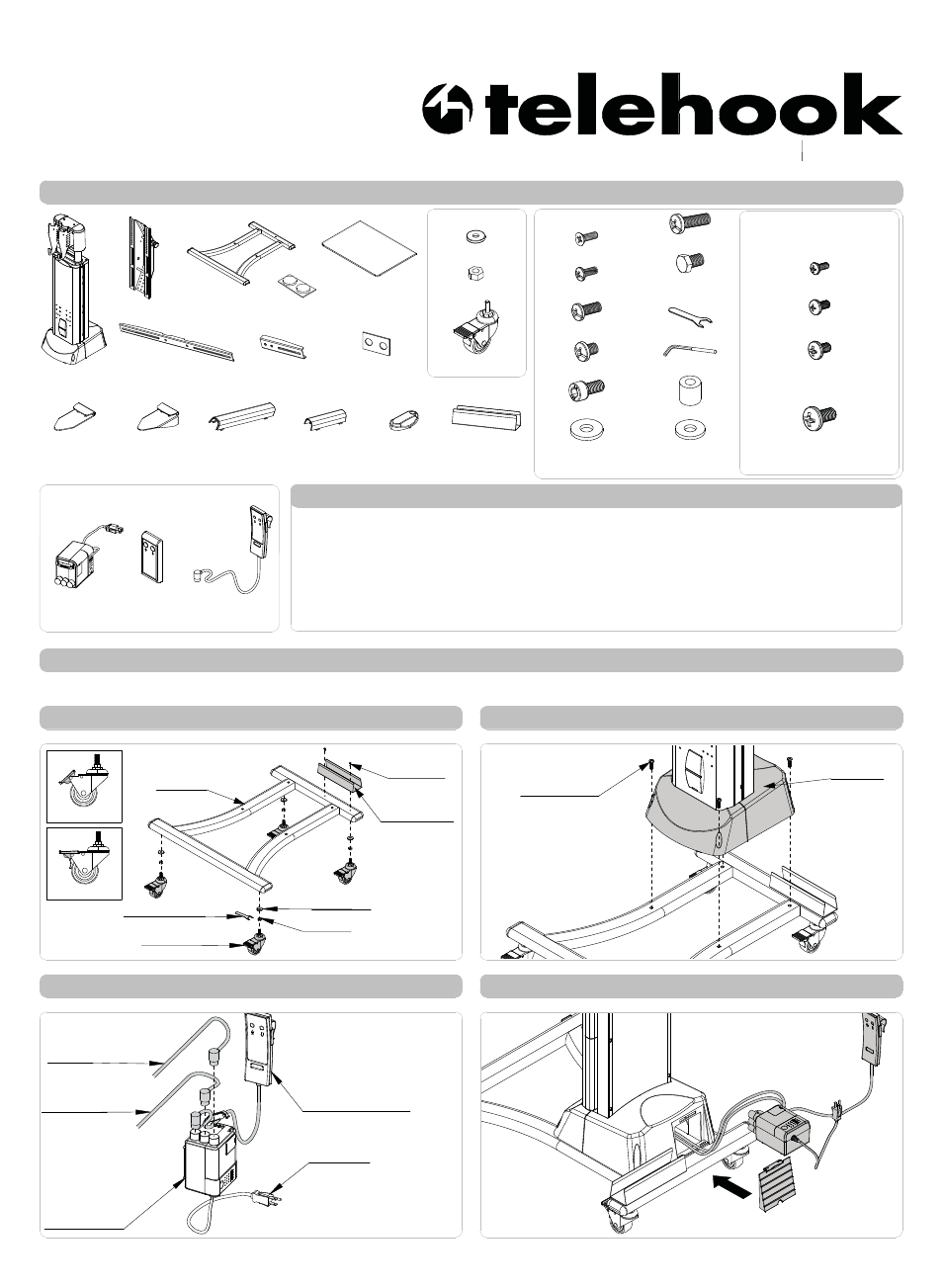

Installation Instructions TH-EMC
Mobile TV Cart Motorized
IMPORTANT INFORMATION:
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
Step 2. Assemble Base
! IMPORTANT - Install Telehook Motorised TV Cart as per Installation Instructions.
! This product supports a maximum load of 50kg (110lbs).
!
Electrical Ratings: Input Ratings - 120 V ac, 60 Hz. Output Ratings - Max. 22 V dc, 3 A.
! This product only supports displays with mounting hole configurations from:
200mm wide x 200mm high up to 800mm wide x 450mm high.
! The manufacturer accepts no responsibility for incorrect installation.
Step 3. Fasten Column to Base
Step 4. Connect Cables Step 5. Install Wiring into Column
ELECTRONIC
Tilt
Mechanism
Left Shelf
Bracket
Right Shelf
Bracket
Wireless
Remote Control
UNLOCKED
M8x16 (x4)
M8x25 (x4)
M4x8 (x2)
Lock Cap
(x2)
M5x6 (x6)
Nylon Shelf
Bolt (x4)
HARDWARE
M5 Washer (x8)
M8 Washer (x8)
Spacers (x12)
M4x16/25mm (x8 each)
M5x16/25mm (x8 each)
M8x20/40/55mm
(x6 each)
Display Mounting
Screws
M6x20/40/55mm
(x6 each)
Frame
Caster Wheel
M10 Nut
Caster Spanner
Caster Wheel
M10 Washer
M10 Nut
CASTER (x4)
M10 Washer
NOTE: Wired Remote Control and
Wireless Remote Control are used
to adjust the height of the Display
up and down.
Safety
Micro-Switch
Glass Shelf
Extension
Washer (x4)
Caster Spanner
Power
Board Holder
M4x7.5
Screw (x2)
Power
Board Holder
Non-slip Pads
¼” Washer (x6)
5
/
16
” Washer (x2)
M8x10 (x8)
M4x7.5 (x2)
