Nylon Anchor (x4)
Multi-washer (x4)
M6 Washer (x4)
M4x10/20mm (x4 each)
M5x10/20mm (x4 each)
M8x15/30mm (x4 each)
Display Mounting
Screws
M5/M6 Spacer (x4)
M8 Spacer (x4)
Note: Use a stud finder to accurately locate the centre of
the stud. Ensure that all screws fix securely into the stud.
Hardware
Coach Screw (x4)

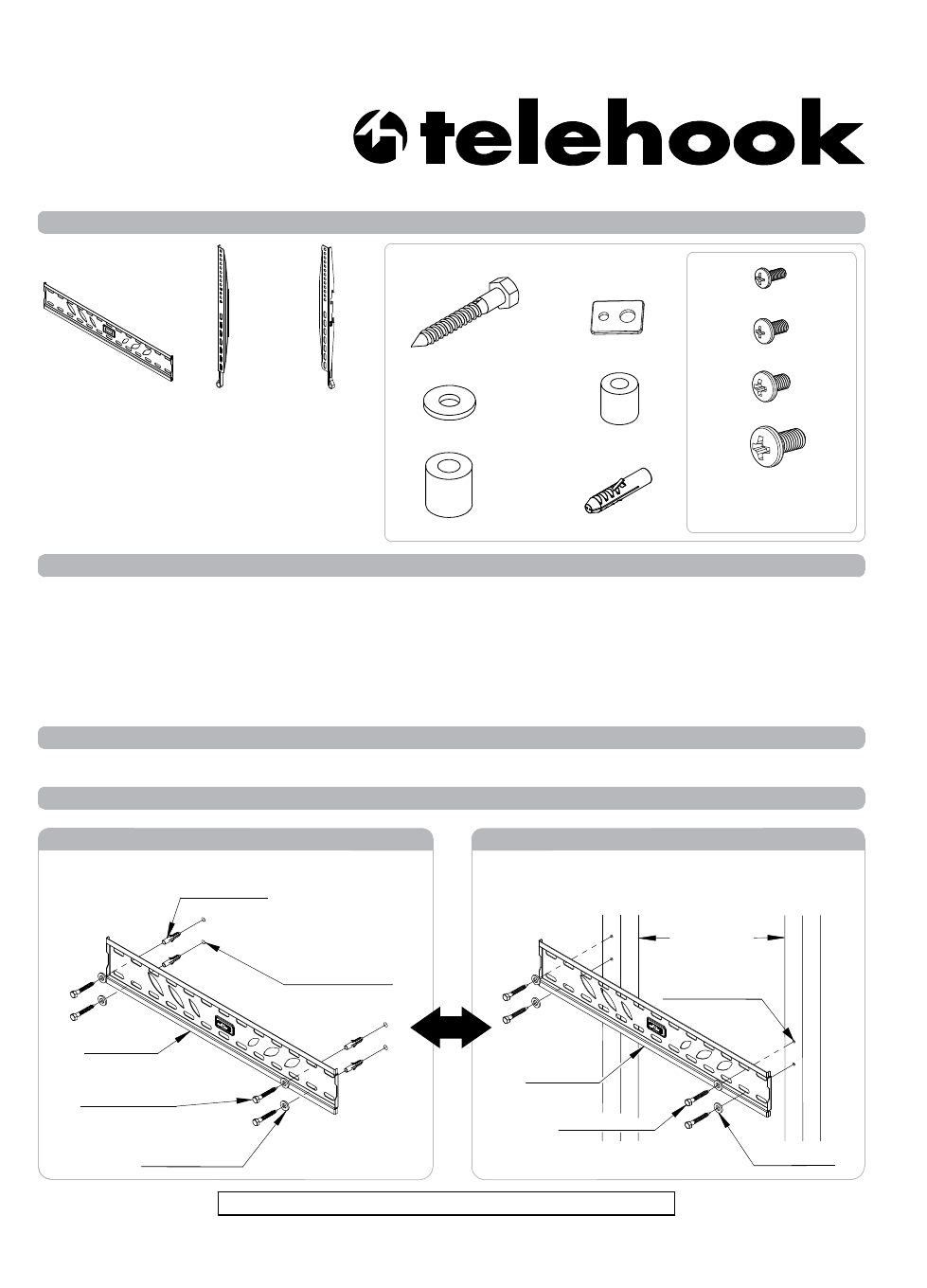

Installation Instructions
TH-3060-UF
Component Checklist
Wall Plate Right Mounting
Bracket
IMPORTANT INFORMATION
! IMPORTANT - Install Telehook 3060 Wall Mount as per Installation Instructions.
! This product supports a maximum load of 50kg (110lbs).
! This product only supports displays with mounting hole configurations from 100mm wide x 100mm
high up to 600mm wide x 400mm high.
! The manufacturer does not accept responsibility for incorrect installation.
! Before installing this Telehook product, please check the display ventilation requirements with your
LED/LCD manufacturer.
Step 1. Check Components
Step 2. Mounting the Wall Plate
Tools Required:
Power Drill •
3mm ( 1 /
8
”) drill bit •
Phillips Head screwdriver •
10mm ( 3 /
8
”) masonry drill bit •
11mm ( 7 /
16
”) Socket Wrench or Shifter •
Tip: Use the built-in spirit level to ensure wall plate is horizontal
Masonry Wall Timber Stud
Check you have received all parts against the Component Checklist and Hardware above.
Left Mounting
Bracket
Nylon Anchor
10mm ( 3 /
8
”) hole
depth: 60mm (2.5”)
Coach Screw
Wall Plate
M6 Washer
3mm ( 1 /
8
”) hole
depth: 40mm (1.5”)
Timber Stud
Wall Plate
Coach Screw
M6 Washer
M6x10/20mm (x4 each)
OR
