Atdec Visidec VF-AT Installation manual User Manual
Installation instructions, A component checklist, Bolt through

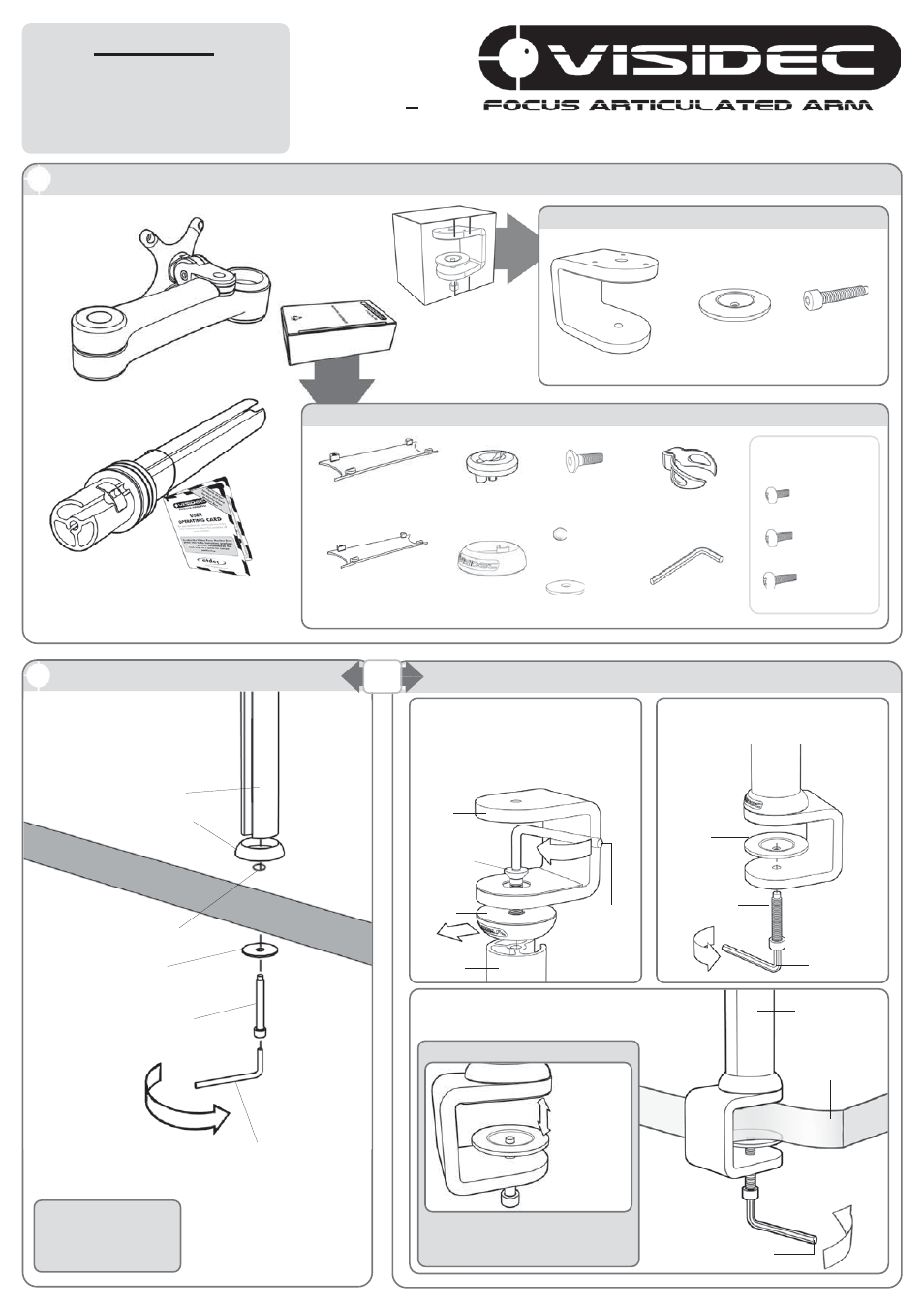

A Component Checklist
- Check you have received all parts against the component checklist prior to installing
Bolt Through
Installation Instructions
Arm Assembly
Pole Assembly
Bits Box
Primary Arm
Cable Cover
Secondary Arm
Cable Cover
Bolt Through
Base
Steel
Washer
M8x30mm
Screw
Pole Top
Cap
Cable Clip
5mm Allen
Key
Display Mounting
Screws
M4x16mm
(x4)
M4x12mm
(x4)
M4x10mm
(x4)
Desk Clamp Box
Desk Clamp Bracket
Pressure Plate
M8 Desk
Clamp Screw
Steel Washer
Bolt Through Base
M8 Desk Clamp Screw
(found in the Desk
Clamp Box)
5mm Allen Key
Tighten Firmly
9mm (³/
8
”) Hole
Drill a 9mm (³/
8
”) hole in the Work
Surface at the desired position and
assemble as shown below.
NOTE: It is recomended
that the Pole Assembly be
mounted towards the rear
edge of the Work Surface
Work Surface
Pole
Assembly
Step 3: Adjust the height of the Pressure Plate to suit the
Work Surface and Tighten Firmly in the desired location.
5mm Allen Key
Tighten Firmly
User Operating Card
(see note at top of page)
IMPORTANT:
The “User Operating
Card” must be left with
Visidec Focus Articulated
Arm once installed
Desk Clamp
Pole Assembly
OR
B1
B2
Step 1: Attach the Desk Clamp Bracket
to the bottom of the Pole Assembly using
the M8x30mm Screw. Tighten firmly
using the 5mm Allen Key. Ensure the
Visidec logo is facing the front as shown.
M8x30mm
Screw
Bottom
Top
Bottom
Bottom
Cable
Balls (x2)
Step 2: Install the M8 Desk Clamp
Screw and Pressure Plate as shown.
Desk
Clamp
Bracket
5mm
Allen Key
Bolt Thru
Base
Pole
Assembly
Pressure
Plate
M8 Desk
Clamp Screw
5mm
Allen Key
NOTE: It is recommended that the Pole
Assembly be clamped to the rear or side
edge of the Work Surface
Suits 12mm
(½”)
to 38mm
(1½”)
Thick Work
Surfaces
ADJUSTMENT RANGE
VF-aT /
