Atdec Visidec VF-AT-AA Installation manual - Manual

Articulated Arm
UP
M4x10mm
(4x)
M4x12mm
(4x)
M4x16mm
(4x)
Display Mounting
Screws
Hand Grip
Primary Arm
Cable Cover
Secondary Arm
Cable Cover
Hardware
Pole Top Cap
Pole of the existing Visidec
Focus Product
A. Slightly insert Articulated Arm. D. Twist and lock the Hand Grip.
Pole
Articulated Arm
Lip of the Pole
Hand Grip tab

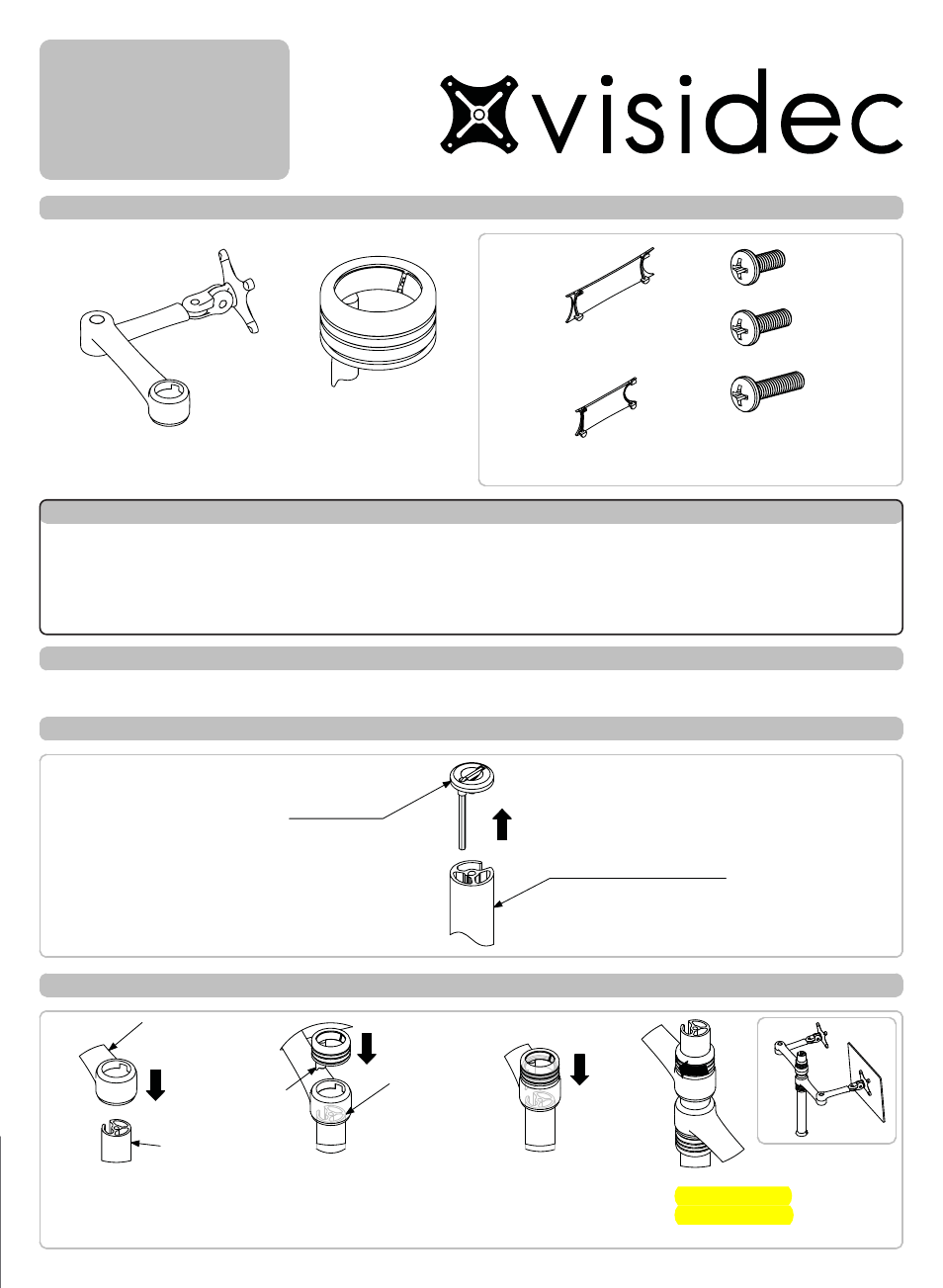

Installation Instructions VF-AT-AA
Component Checklist
IMPORTANT:
The "User Operating
Card" must be left with
Visidec Focus Articulated
Arm once installed.
IMPORTANT INFORMATION:
Step 1. Check Components
Check you have received all parts against the Component Checklist and Hardware above.
Step 2. Remove Top Cap
Step 3. Attached Articulated Arm to the Existing Visidec Focus Product
B. Hold Articulated Arm at the lip of
the pole and insert Hand Grip tab
in the Articulated Arm.
Ensure the tab lines up with the slot
in the Pole. C. Slide down Articulated
Arm with Hand Grip to
the desired position.
! IMPORTANT - Install Visidec Focus Accessory Arm as per Installation Instructions.
! This product is designed to be installed onto an existing Visidec Focus pole mount.
! This products supports displays with a maximum weight of 8kg (17½ lbs), and VESA mounting hole configurations:
75 x 75mm (3" x 3"), 100 x 100mm (4" x 4").
! The manufacturer accepts no responsibility for incorrect installation.
Focus Accessory Arm
Note: DO NOT
OVER TIGHTEN
