ergonomic Guidelines F
B
Ergonomists recommend that the optimal position of your screen should be slightly below eye level.
when looking at the screen’s centre the user should have a downward visual angle of approximately
10°-20°. as a guide, the height (h) of your display should approximately be as follows:
Tall male (max): 560mm (22”) Tall Female (max): 520mm (20 1 /
2
”)
short male (min): 368mm (14 1 /
2
”) short Female (min): 356mm (14”)
For visual comfort, a viewing distance (d) between 500mm (19 1 /
2
”) to 750mm (29 1 /
2
”) is recommended.
angular adjustments to reduce reflection on your monitor should range between 5° forward tilt to 15°
backward tilt.
wall mount
15°
5°
HOriZOnTal sigHT linE (d)
CEnTr
E O
F sCrE
En
10°-20°

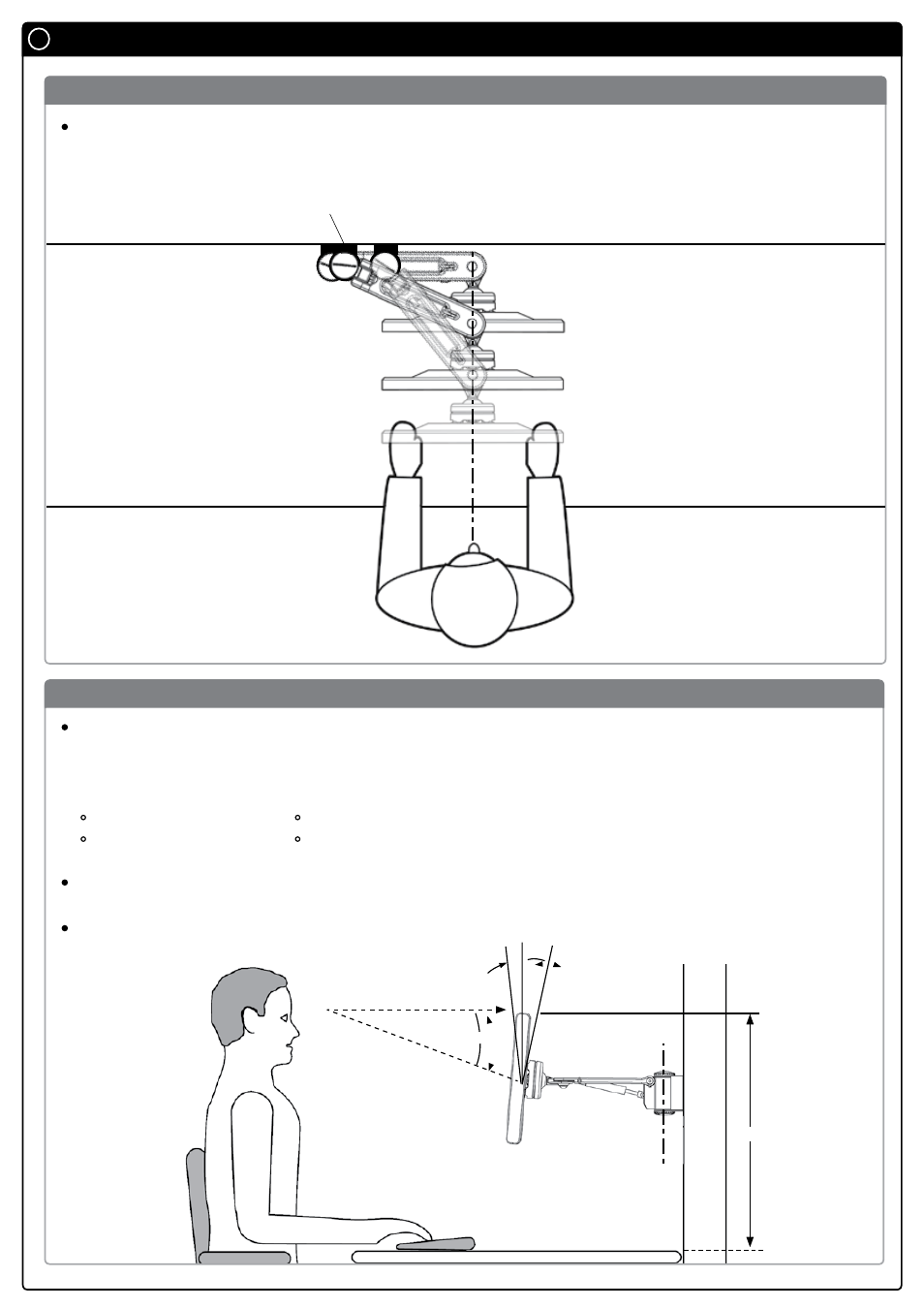

Recommended Viewing distance / Height
Recommended Mounting position
when mounting the spacedec acrobat swing arm wall, ensure the correct focal distance can be achieved
for ultimate visual comfort (refer to recommended Viewing Distance / Height below)
(h)
