ergonomic Guidelines F
B

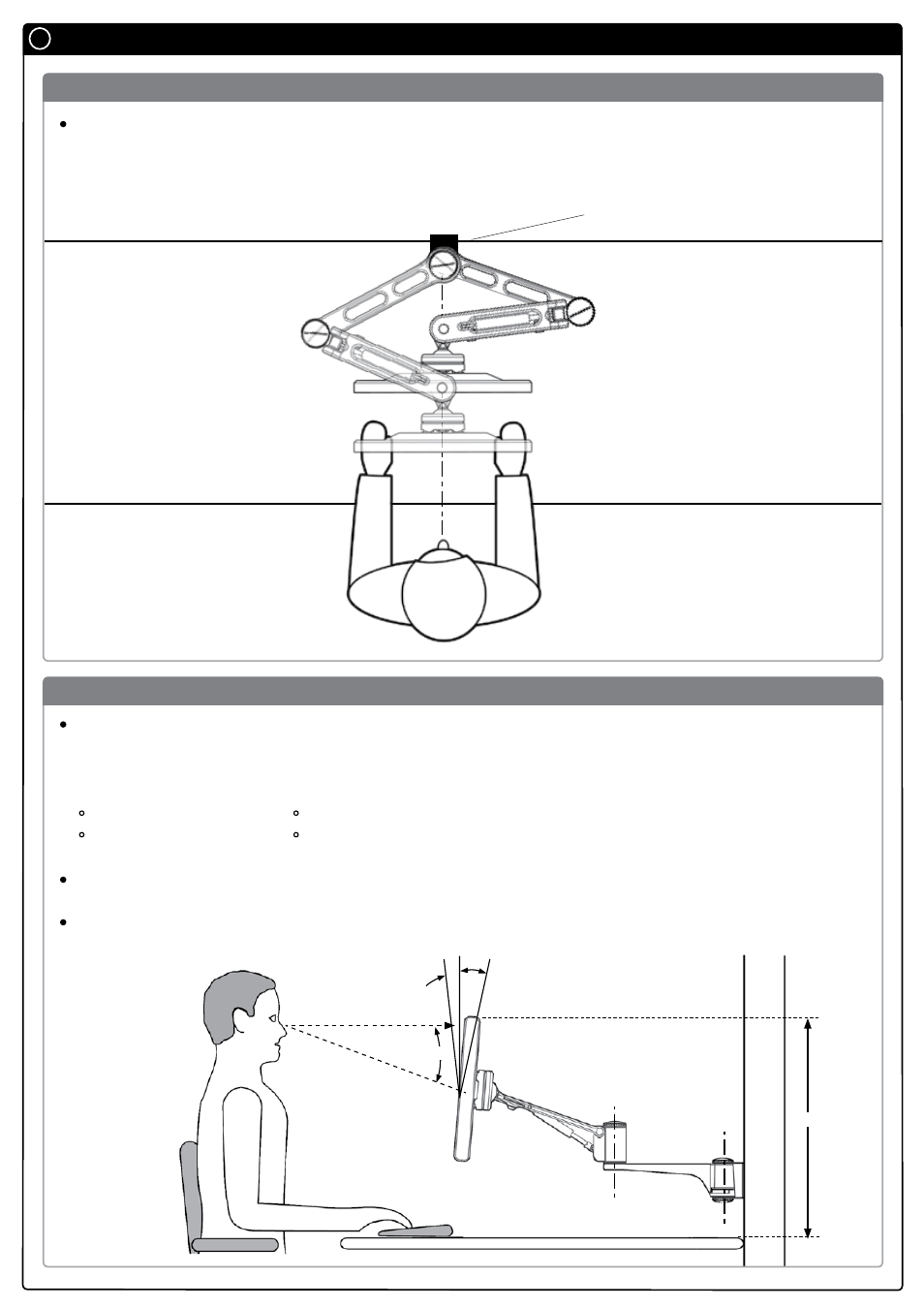

Ergonomists recommend that the optimal position of your screen should be slightly below eye level. When
looking at the screen’s centre the user should have a downward visual angle of approximately 10°-20°. As
a guide, the height (h) of your display should approximately be as follows:
Tall Male (Max): 560mm (22”) Tall Female (Max): 520mm (20 1 /
2
”)
Short Male (Min): 368mm (14 1 /
2
”) Short Female (Min): 356mm (14”)
For visual comfort, a viewing distance (d) between 500mm (19 1 /
2
”) to 750mm (29 1 /
2
”) is recommended.
Angular adjustments to reduce reflection on your monitor should range between 5° forward tilt to 15°
backward tilt.
Wall Mount
15°
5°
HOrIZONTAl SIGHT lINE (d)
CENTr
E O
F SCrE
EN
10°-20°
Recommended Viewing Distance / Height
Recommended Mounting position
When mounting the Spacedec Acrobat Wall Articulated Arm, ensure the correct focal distance can be
achieved for ultimate visual comfort (refer to recommended Viewing Distance / Height below)
(h)
