Altronix ALTV248UL Series Installation Instructions - Manual (Page 10)

- 10 - ALTV248ULseries
IN
PU
T
N
P
S
IN
PU
T
N
P
S
White
Lead
XFMR*
Black
Lead
115VAC input,
60 Hz.
XFMR*
Green
Lead
(Ground)
Connected
to Door
non-power limited
non-power limited
non-power limited

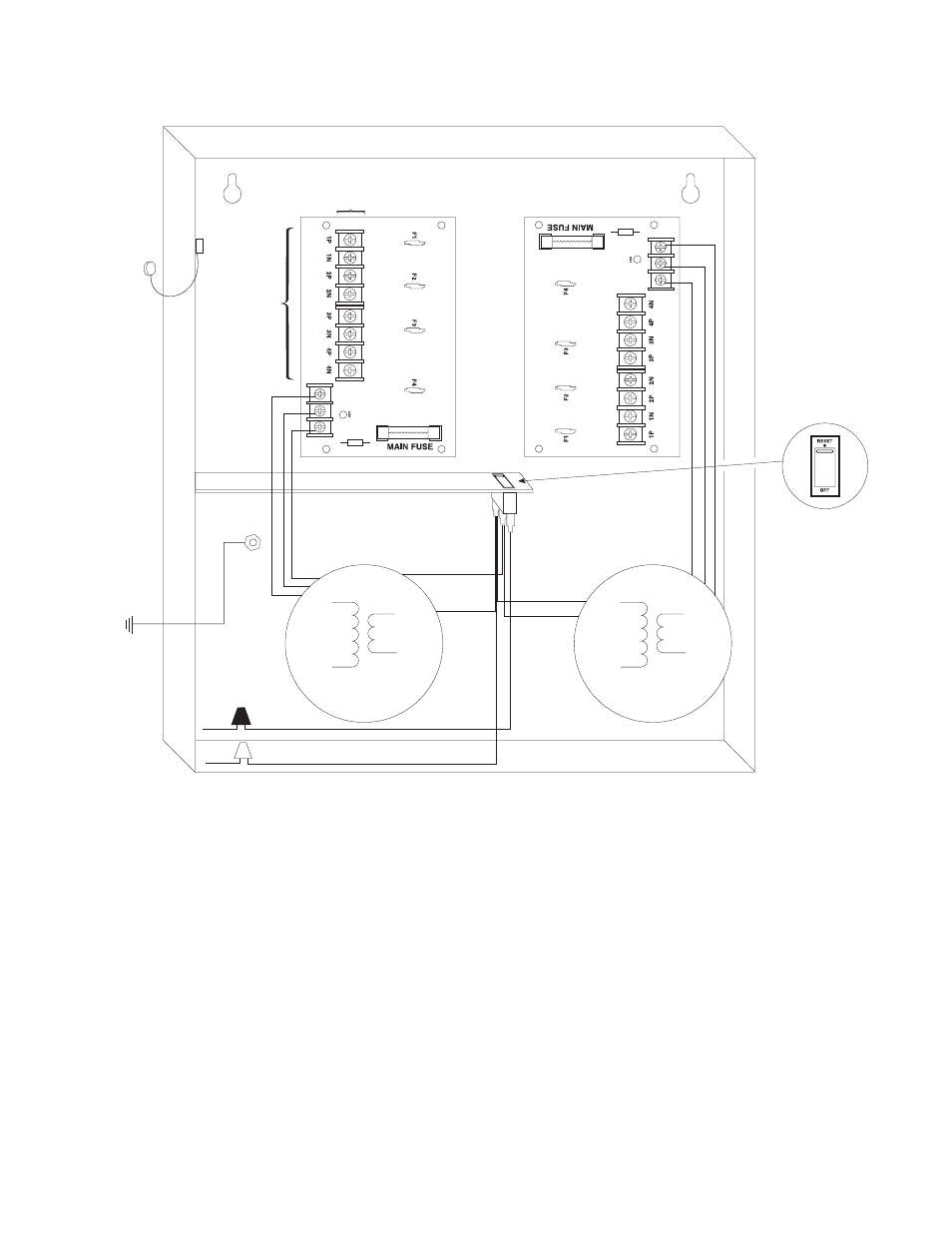

Illuminated Power Disconnect
Circuit Breaker with manual reset
24VAC or 28VAC output 1
(Follow same procedure using terminals 2P & N
through 4P & N outputs 2 through 4)
24VAC configuration
Class 2 Not Wet/Class 3 Wet
Fig. 10
ALTV248600ULCB
Fig. 10a
