RBR1224 Electronic Toggle/Ratchet Relay works with PGM alarm control panels, door
control, keypads and more. The RBR1224 is snap track mountable.
RBR1224
Electronic Toggle/Ratchet Relay
Rev. DSRBR1224_10242012
Overview
Specifications
Altronix Corp. - 140 58th Street, Brooklyn, NY 11220 • 718-567-8181 • 888-258-7669 • altronix.com
Applications
• Use with PGM alarm control panel outputs.
• Electronically shunt-alarm zones,
door control or keypads. • Interfaces with wireless receivers.
• Converts momentary to maintained contacts.
0.156”
(3.96mm)
0.12”
(3.05mm)
0.13”
(3.3mm)
2.3”
(58.42mm)
2.8”
(71.11mm)
2.5”
(63.5mm)
3.0”
(76.2mm)

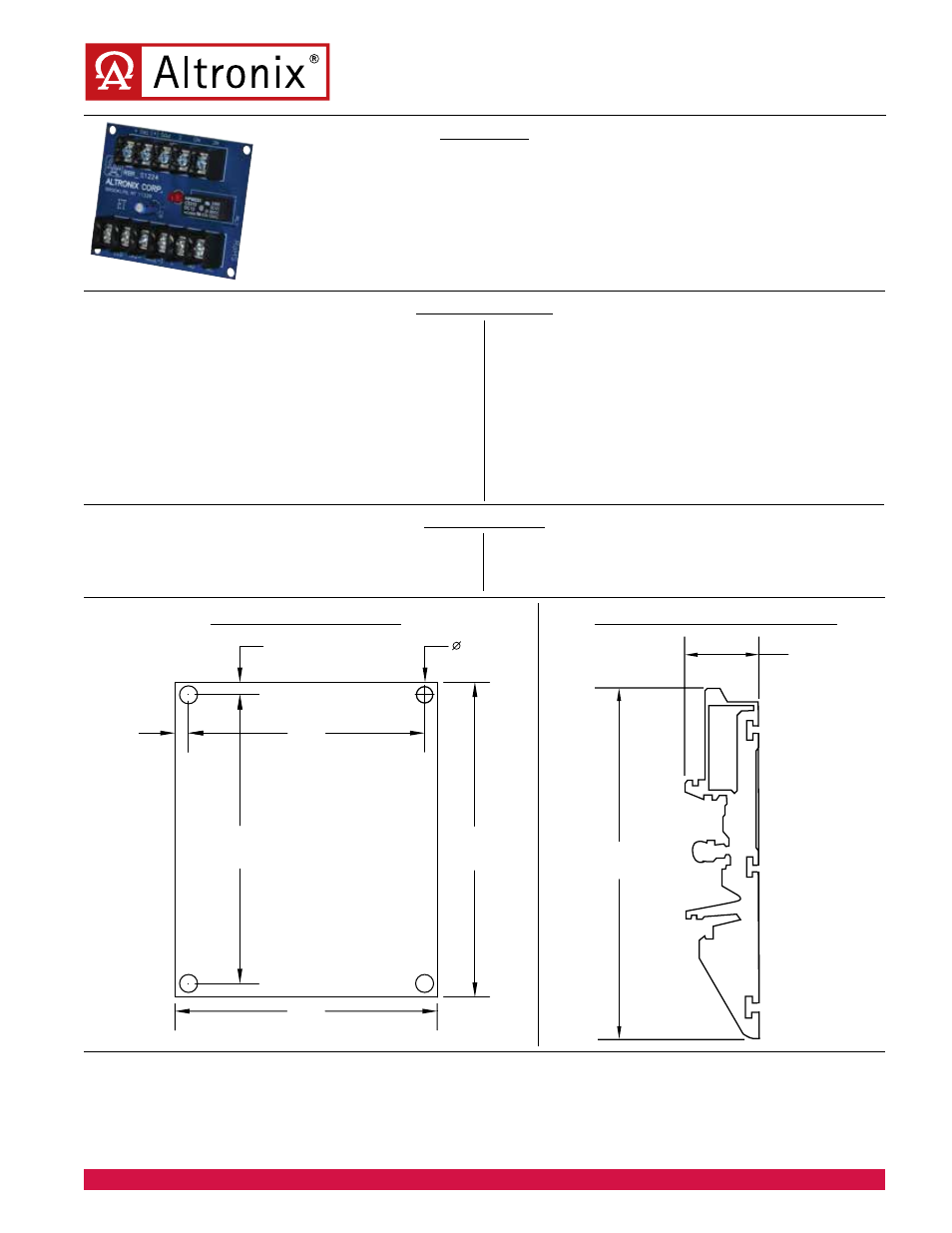

Mounting Diagrams ST3 Mechanical Drawing
3.25”
(82.55mm)
0.625”
(15.88mm)
RBR1224
Input Voltage:
• 12VDC to 24VDC operation.
• Current draw: 20mA.
Trigger Input:
• Positive (+) or negative (-) ultra sensitive trigger
(3VDC to 24VDC @ 20mA minimum).
Contact Rating:
• DPDT contacts rated at 0.5 amp/120VAC or
2 amp/28VDC.
LED Indicators:
• Relay status LED.
• Remote LED status output.
Electrical:
• Operating temperature: -- 25º C to 55º C ambient.
Mechanical:
• Snap track mountable (order part # ST3).
• Product weight (approx.): 0.48 lbs. (0.22 kg.).
• Shipping weight (approx.): 0.52 lbs. (0.24 kg.).
