7 Rotate the connection head in such a way that the cable
entry points downwards (moisture can drain off). Fasten
the cylinder with screws (4); torque max. 5 Nm
8 Insert the plug at the end of the transducer cable into the
socket on the remote electronics
1
2
3
4

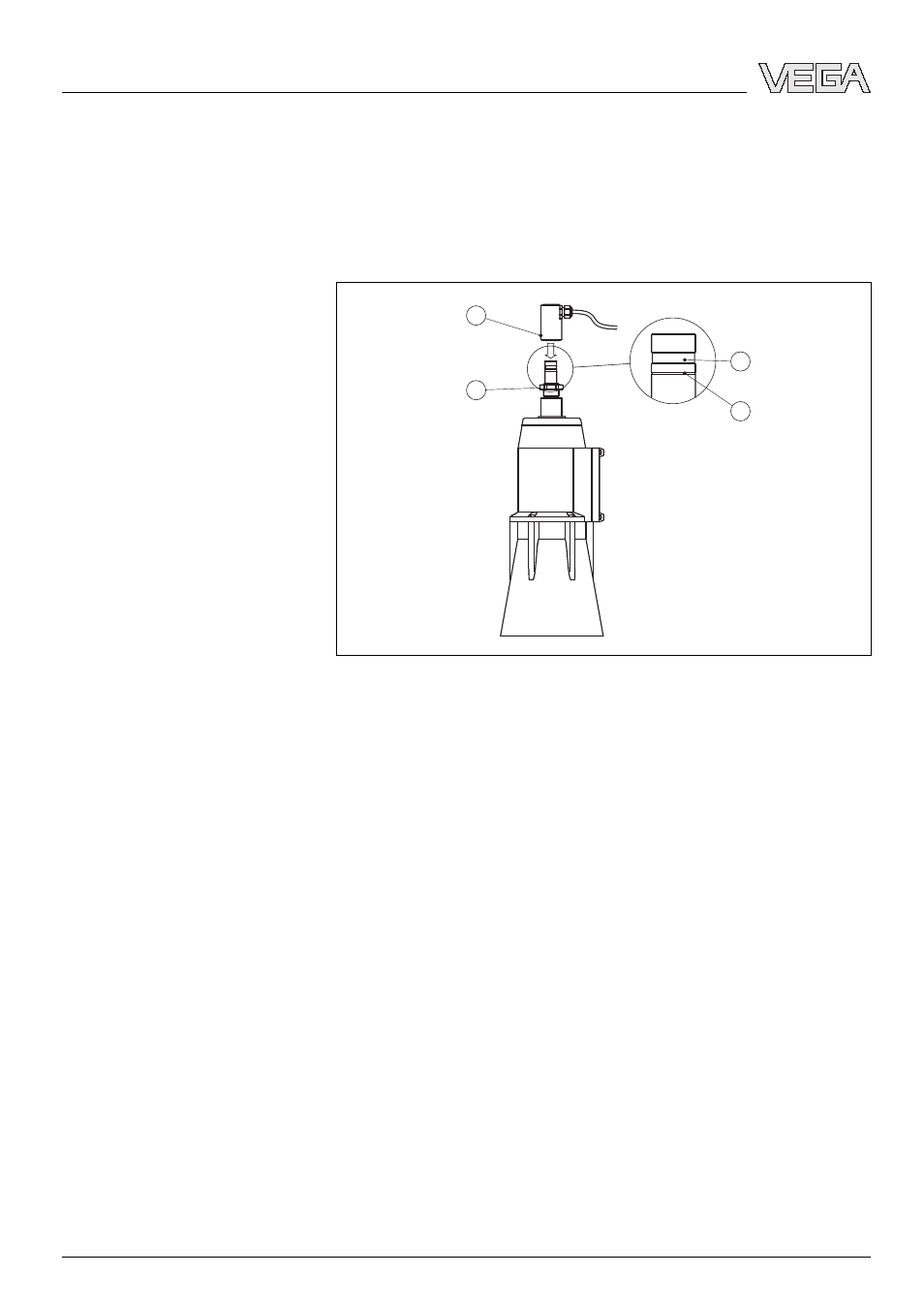

Fig. 7: Mounting - Version D
1 Groove for locking the connection head
2 Marking notch
3 Hexagon nut SW 46
4 Terminal screws, connection head (hexagon spanner - size 4)
4.3 Mounting instructions
Mount VEGASON 66 at least 500 mm (19.7 in) from the vessel
wall. If the sensor is installed in the center of vessels with
dished or round tops, multiple echoes can arise. These can,
however, be suppressed by an appropriate adjustment (see
"Setup").
If this distance cannot be maintained, a false echo storage
should be carried out during setup. This applies particularly if
buildup on the vessel wall is expected. In such case, we
recommend repeating the false echo storage later on with
existing buildup.
Installation location
