8 VEGACOM 557 - without protocol
Measuring system
Explanation:
1 VEGA Visual Operating (VVO)
Adjustment software for the PC for conven-
ient configuration and parameter adjust-
ment of VEGA-instruments
-
VEGALOG 571 directly via RS 232-
connection cable to CPU-card or VEGA-
COM 557
- several VEGAMET via VEGACOM 557
or individually via VEGACONNECT
- VEGASON, VEGAPULS via VEGACON-
NECT to the signal line or on the sensor
2 Visual VEGA (VV)
Visualisation software for the PC for meas-
ured value demonstration in graphic or
tabular form. Composition of individual
measurement loops to groups, saving of
fault signals and measured values (re-
corder function).
Suitable for networks

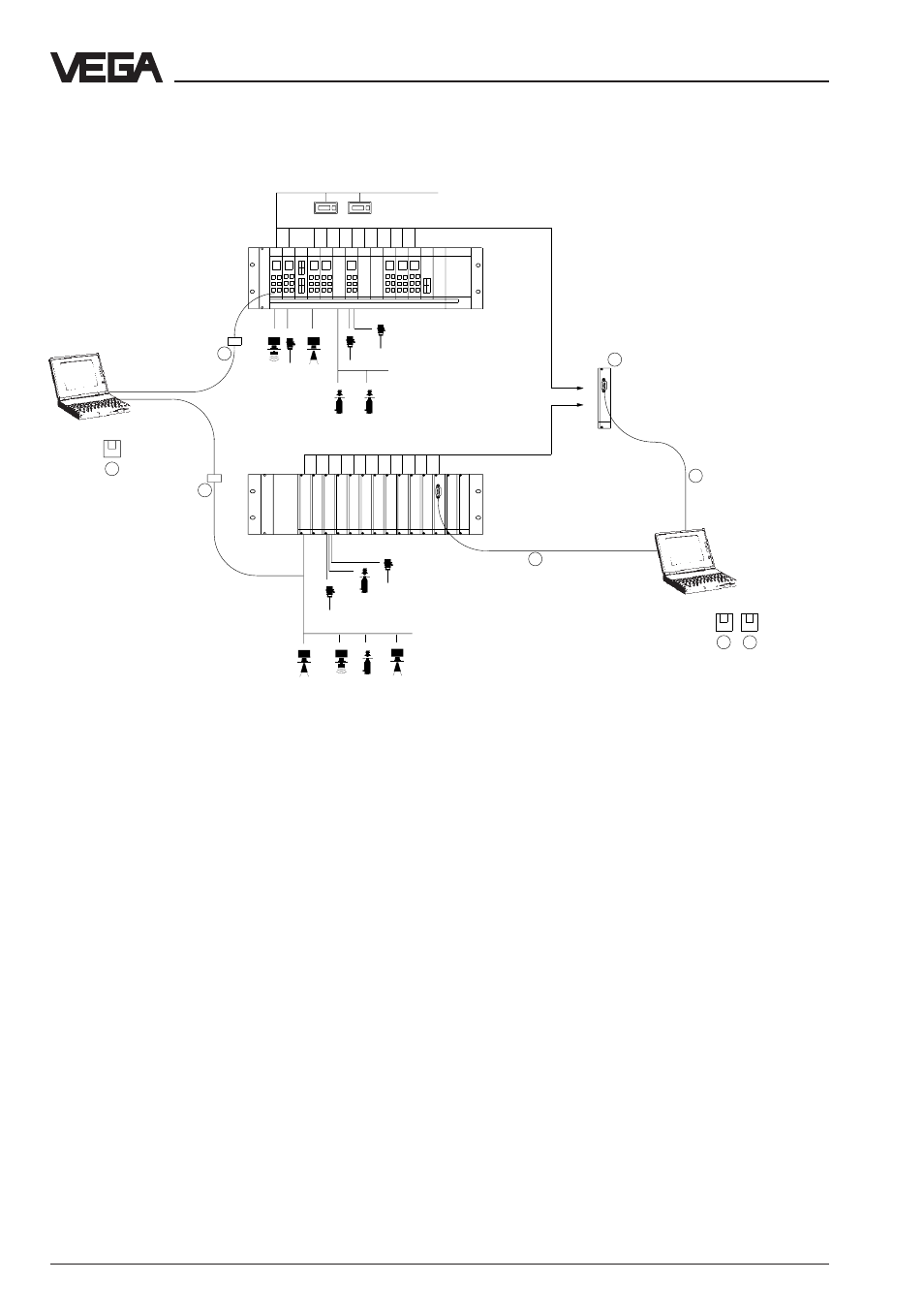

3 Measuring system with digital
communication
1 2
1
4
4
3
5
5
DISBUS
LOGBUS
Automatisation system
3 VEGACOM 557
Interface converter for conversion of
VEGA-specific protocols in standard for-
mats. Suitable for connection to the DIS-
BUS-output of VEGAMET series 500 / 600
signal conditioning instruments or the
LOGBUS of VEGALOG 571 processing
system.
4 VEGACONNECT 2
Connection cable (interface converter)
between VEGA-instruments (VEGASON,
VEGAPULS or VEGAMET) and a PC in
conjunction with the VEGA Visual Operat-
ing adjustment software.
5 RS 232-connection cable (interlink cable)
Connection cable between PC and VEGA-
LOG 571-CPU or VEGACOM 557
