VEGACOM 557 - without protocol 5
Product description
1.2 Functional principle
The gateway VEGACOM 557 can be inte-
grated in two ways in level or pressure meas-
uring systems:
- as DISBUS-participant
- as LOGBUS-participant.
In both cases it is a passive participant.

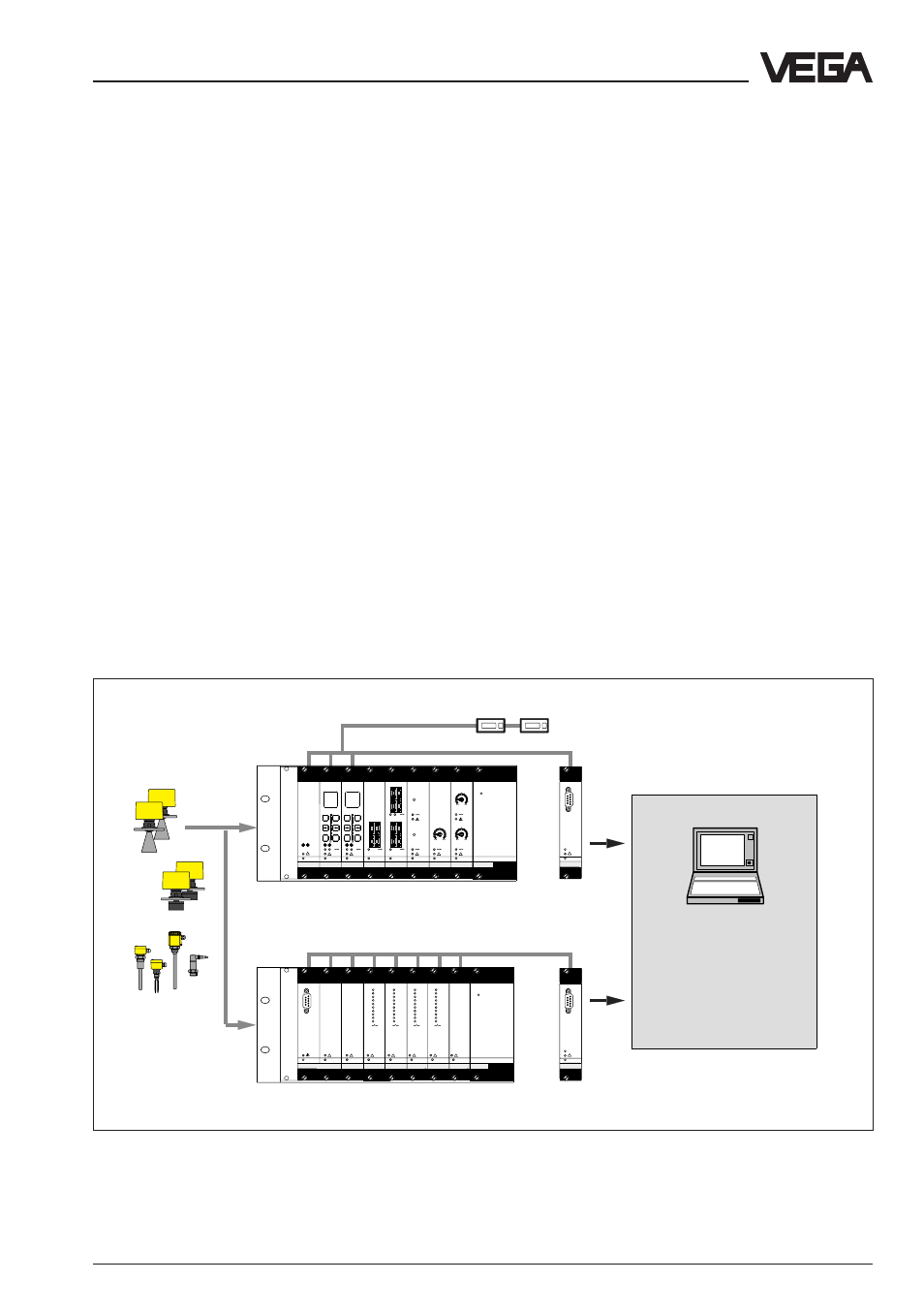

VEGACOM 557 as DISBUS-participant
VEGAMET series 500 /600 signal conditioning
instruments transmit so called PC/PLC-tel-
egrams via the DISBUS measured data and
status information. VEGACOM 557 receives
as participant on the DISBUS these data.
Max. two VEGACOM 557 can be connected
to the same DISBUS.
ESC OK
- +
1 2
on
100 %
CONNECT
514 Ex
ESC OK
- +
1 2
on
100 %
CONNECT
515 Ex
on
514 N 543
on
max.
min.
0 9
0 1
545
on
1
2
1 2
max.
min.
5 7
5 2
0 9
0 1
537 Ex
on
1
TEST
TEST
1
0 10
5
527 Ex
on
0 10
5
2
0 10
5
521 Ex
on
2
on on on
PC
on on
VEGALOG
1
2
3 4
5
6 7
8 9
10
on
1
2
3 4
5
6 7
8 9
10
1
2
3 4
5
6 7
8 9
10
on
1
2
3 4
5
6 7
8 9
10
on
571 CPU VEGALOG 571 EA VEGALOG 571 EX VEGALOG 571 AT VEGALOG 571 AR VEGALOG 571 AT VEGALOG 571 AR VEGALOG 571 AD
on
557
BA
PC
on
557
BA
PC
VEGAMET VEGAMET VEGASEL VEGASEL VEGATOR VEGATOR VEGATOR VEGACOM
VEGACOM
VEGASTAB 593
on
CONNECT
VEGASTAB 593
on
VEGAMET
max. 1000 m
max. 45 VEGADIS
DISBUS
LOGBUS
Signal conditioning instrumenst series 500
Processing system VEGALOG 571
PC
(directly via interlink cable
or via Modem)
VEGACOM 557 as DISBUS-participant
VEGACOM 557 as LOGBUS-participant
VEGACOM 557 as LOGBUS-participant
There is a permanent data exchange on the
LOGBUS between the individual components
of the VEGALOG 571. The VEGACOM 557
receives PC/PLC-telegrams containing meas-
ured values and status information as a par-
ticipant of this LOGBUS.
