Installation option - converting from desktop to wall mount position
To mount the telephone base on the wall:
Unplug the power adapter and telephone line cord. Disconnect the power cord from the telephone base.
Remove the cordless handset from the telephone base. On the telephone base, place a coin in the slit of the wall mount clip and
rotate a half turn (180 degrees). It locks into place with the protruding edge pointing towards the upper edge of the telephone
base. This protruding edge holds the cordless handset when the phone is mounted on the wall.

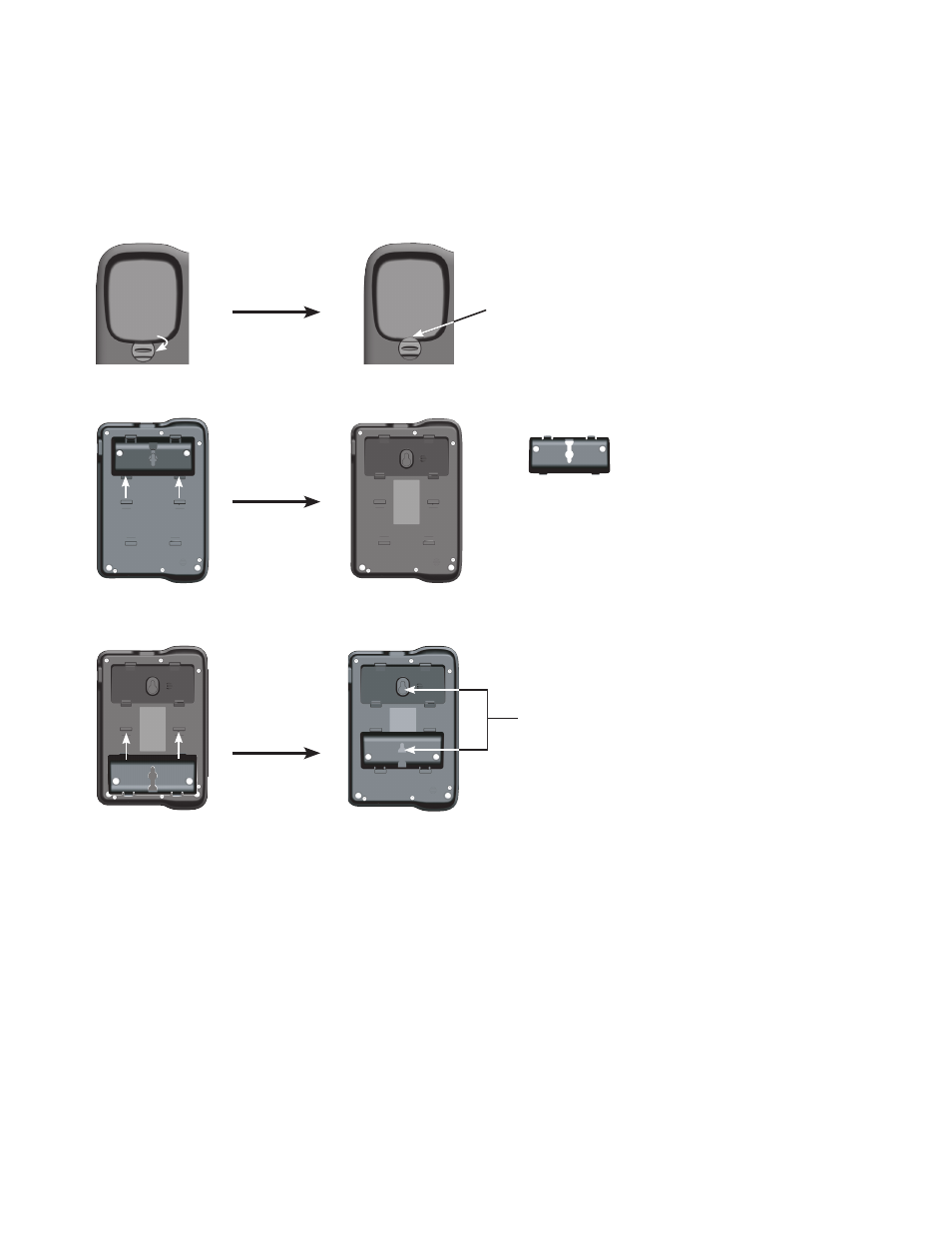

Turn the telephone base over with the bottom side facing up. Press the tabs of the mounting bracket as the direction indicated
below to release and remove the mounting bracket from the telephone base.
Rotate the mounting bracket. Insert the tabs of the mounting bracket into the middle grooves on the telephone base as shown
below. Then press the tabs and push the mounting bracket into the lower grooves on the telephone base until they lock securely.
Mount the telephone base on the wall by positioning the eyelets on the telephone base and mounting bracket against the
mounting studs of the wall plate. Then slide the telephone base down on both mounting studs until it locks into place.
Connect the power cord to the telephone base. Plug the power adapter into an electrical outlet not controlled by a wall switch,
and plug the telephone line cord into the telephone wall jack. Then replace the cordless handset on the telephone base cradle.
1.
2.
3.
4.
5.
6.
Analog cordless 1-line/2-line - A1410/A1420
Installation
Protruding edge
Eyelets
